Asus ESC4000A-E10 - Installing an M.2 Expansion Card

Chapter 2: Hardware Setup
2-22
2.5.3 Installing an M.2 expansion card
You may install an M.2 expansion card to the internal SAS/HBA/Storage bracket located in
the front of the system.

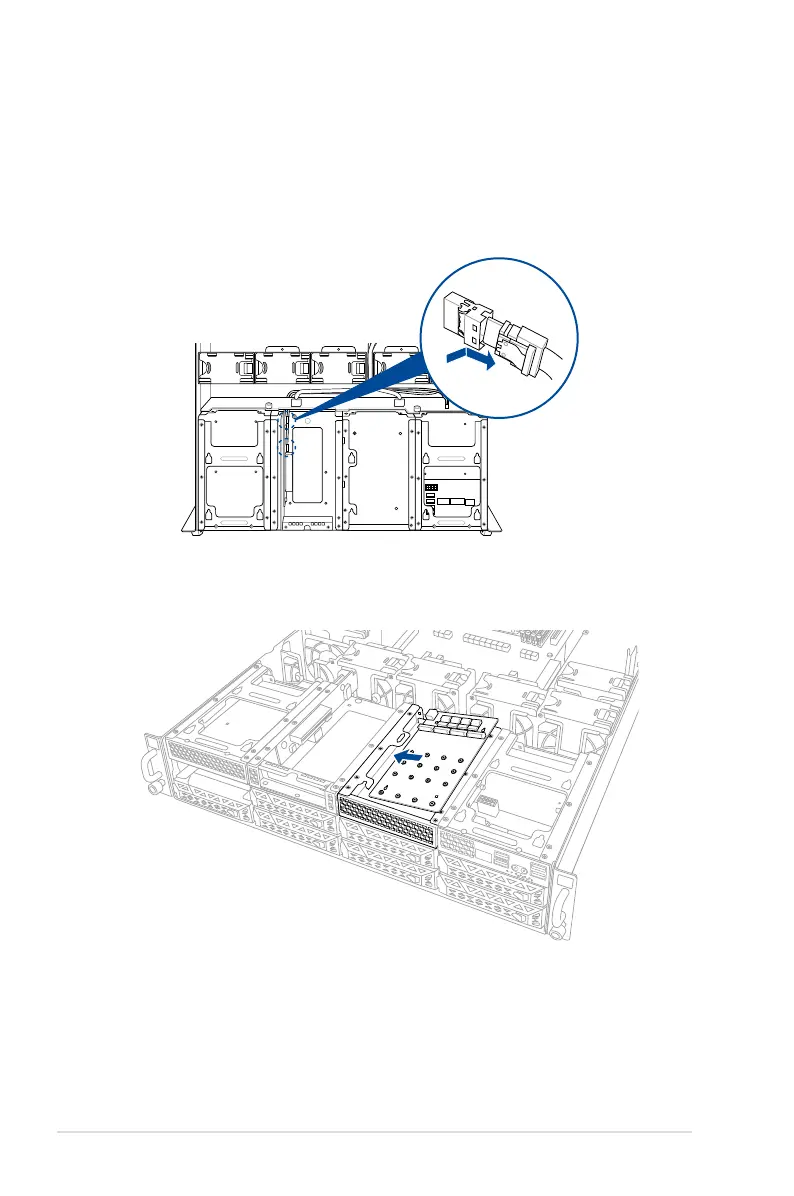

2. Prepare your M.2 card, then slide it into the expansion card cage located in the front of
the system.
1
2
1. Remove the two (2) default slimline SAS cables from the internal SAS/HBA/Storage
bracket.
