Asus P8H77-M User Manual

1-7第一章：產品介紹
1.5 主板概述
當您安裝主板到電腦機箱內時，請確認主板與機箱大小相適應。
請勿將螺絲鎖得太緊！否則容易導致主板的印刷電路板產生龜裂。
1.5.1 主板的擺放方向
當您安裝主板到電腦主機機箱內時，務必確認安裝的方向是否正確。主板的外接
插頭的方向應是朝向主機機箱的後方面板，而且您也會發現主機機箱後方面板會有相
對應的預留孔位。
1.5.2 螺絲孔位

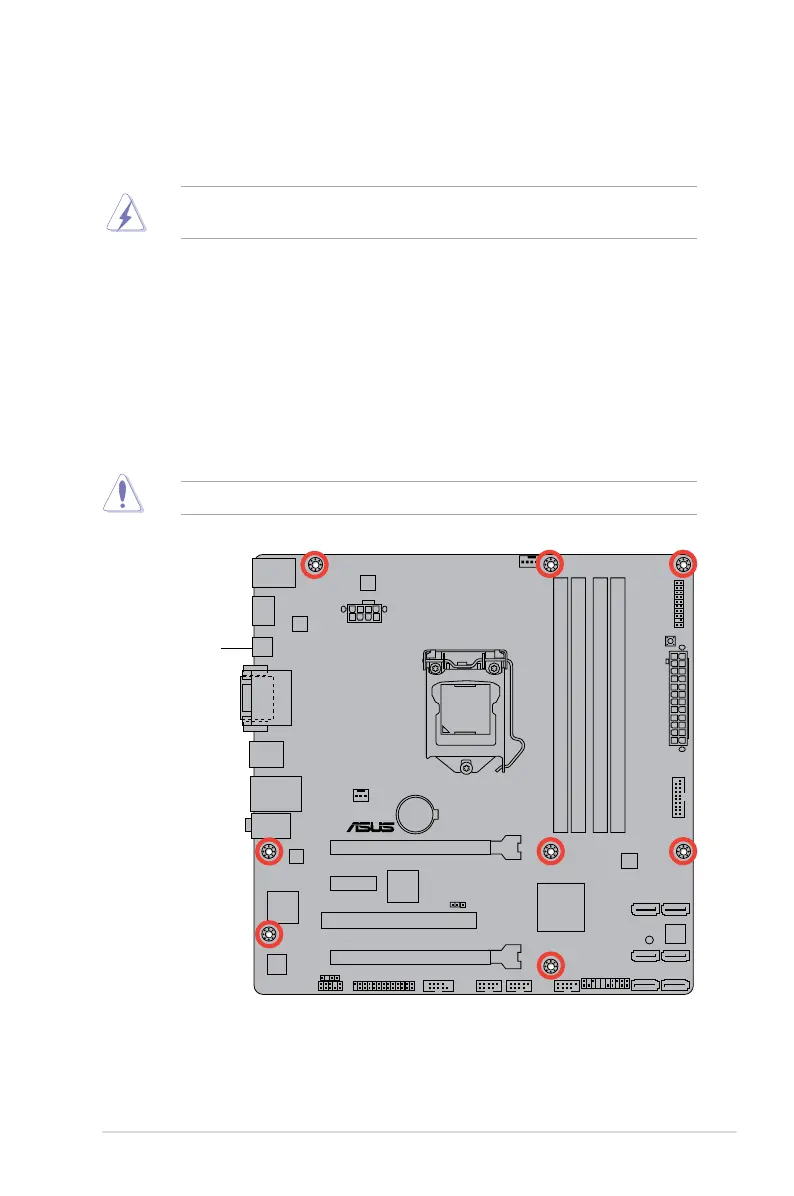

請將下圖所圈選出來的“八”個螺絲孔位對準主機機箱內相對位置的螺絲孔，然
後再一一鎖上螺絲固定主板。
請確認在安裝或移除主板前先拔除電源線，否則可能導致主板元器件損
壞和對用戶的人身傷害。
此面朝向電腦主機
的後方面板
P8H77-M

Asus P8H77-M Specifications

General

ECC	No
Non-ECC	Yes
Memory voltage	1.5 V
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1066, 1333, 1600, 1800, 1866, 2000, 2133, 2200 MHz
Supported memory module capacities	16GB, 1GB, 2GB, 4GB, 8GB
System bus rate	5 GT/s
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7
Maximum number of SMP processors	1
USB 2.0 connectors	3
Number of SATA III connectors	2
Number of Parallel ATA connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC887
Cooling type	Passive
Component for	PC
Power source type	ATX
Motherboard chipset	Intel H77
PC health monitoring	CPU, FAN, Temperature
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA II, SATA III
Cables included	SATA
Graphics card	HD Graphics
OpenGL version	3.2
DirectX version	11
Maximum resolution	2048 x 1536 pixels
Maximum graphics card memory	1696 MB
Parallel processing technology support	2-Way CrossFireX, LucidLogix Virtu, Quad-GPU CrossFireX
PCI Express slots version	2.0, 3.0
PCI Express configurations	1x4, 1x16
LAN controller	Realtek RTL8111F
Wi-Fi standards	Not supported
Networking features	Gigabit LAN
Ethernet interface type	Gigabit Ethernet
BIOS type	EFI AMI
ACPI version	2.0a
BIOS memory size	64 Mbit

Weight and Dimensions

Width	245 mm
