Asus P8H77-M User Manual

1-51第一章：產品介紹

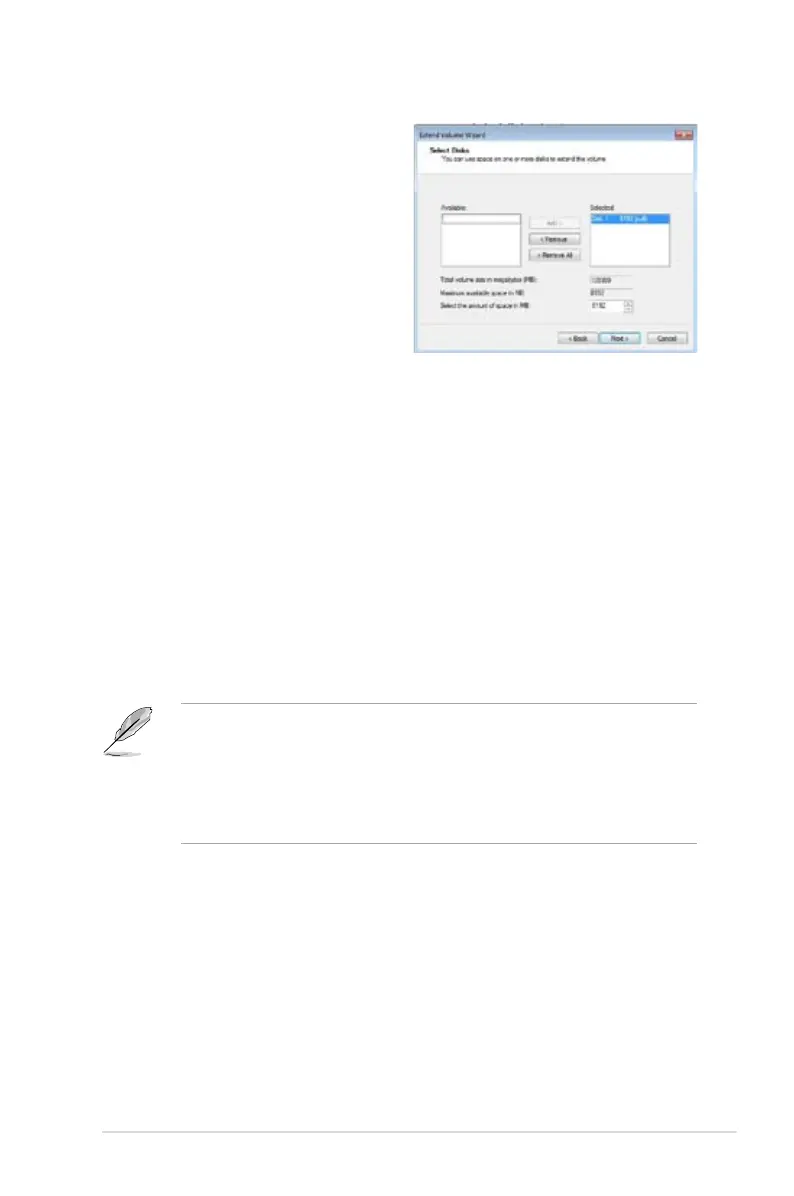

10. 在已選擇（Selected）欄選擇預設的
磁盤後點擊【下一步（Next）】。
安裝 Intel
®
Smart Connect Technology
1. 將驅動程序與公用程序光盤放入光驅。
2. 進入【應用程序（Utilities）】菜單，點擊 Intel
®
Smart Connect Technology。
3. 當設置嚮導出現時，點擊【下一步（Next）開始進行設置。
4. 勾選【我接受授權合約（I accept the terms in the License Agreement）】，然後
點擊【下一步（Next）】。
11. 擴展磁區完成後，點擊【完成（Finish）】來還原 Intel
®
Rapid Start Technology
隱藏分區。
12. 在刪除隱藏分區後重新啟動系統。
13. 進入【開始】>【控制面板】>【添加或刪除程序】移除 Intel
®
Rapid Start
Manager，才能完全刪除 Intel
®
Rapid Start Technology。
1.14.4 Intel
®
Smart Connect Technology
Intel
®
Smart Connect Technology 可以提供電腦平台最新的內容更新與更有效率
的能源運用。
當您安裝並啟動 Intel
®
Smart Connect Technology，將會依照用戶設置的間隔時
間，定期從睡眠模式中將系統喚醒，執行更新或收集用戶設置應用程序的最新信息，
然後再次進入睡眠狀態。
• Intel
®
Smart Connect Technology 支持 Windows
®
Live Mail、Microsoft
Outlook 與 Seesmic 應用程序。
• 在使用 Intel
®
Smart Connect Technology 之前，請先至 BIOS 程序
的 PCH Configuration 項目中啟動本功能。進入 [Advanced Mode]
> [Advanced] > [PCH Configuration]，將 Intel
®
Smart Connect
Technology 設置為 [Enabled]。

Asus P8H77-M Specifications

General

ECC	No
Non-ECC	Yes
Memory voltage	1.5 V
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1066, 1333, 1600, 1800, 1866, 2000, 2133, 2200 MHz
Supported memory module capacities	16GB, 1GB, 2GB, 4GB, 8GB
System bus rate	5 GT/s
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7
Maximum number of SMP processors	1
USB 2.0 connectors	3
Number of SATA III connectors	2
Number of Parallel ATA connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC887
Cooling type	Passive
Component for	PC
Power source type	ATX
Motherboard chipset	Intel H77
PC health monitoring	CPU, FAN, Temperature
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA II, SATA III
Cables included	SATA
Graphics card	HD Graphics
OpenGL version	3.2
DirectX version	11
Maximum resolution	2048 x 1536 pixels
Maximum graphics card memory	1696 MB
Parallel processing technology support	2-Way CrossFireX, LucidLogix Virtu, Quad-GPU CrossFireX
PCI Express slots version	2.0, 3.0
PCI Express configurations	1x4, 1x16
LAN controller	Realtek RTL8111F
Wi-Fi standards	Not supported
Networking features	Gigabit LAN
Ethernet interface type	Gigabit Ethernet
BIOS type	EFI AMI
ACPI version	2.0a
BIOS memory size	64 Mbit

Weight and Dimensions

Width	245 mm
