華碩 P8H77-M 主板用戶手冊1-30
7. USB 2.0 設備接口 1 2:這兩組 4-pin 通用串行總線(USB)接口可連接到使
用 USB 2.0/1.1 接口的硬件設備。
8.
USB 3.0 設備接口 1 2:這兩組 4-pin 通用串行總線(USB)接口可連接到使
用 USB 3.0 接口的硬件設備。
9. DVI-D 接口:連接任何 DVI-D 兼容設備。DVI-D 無法將信號轉換為 RGB 輸出至
CRT 顯示器,且不兼容 DVI-I。
10. 光纖 S/PDIF 數字音頻輸出接口:此端口通過光纖 S/PDIF 線纜連接外接音頻輸出
設備。
11. HDMI 接口:此高清晰多媒體接口(High-Definition Multimedia Interface),兼
容 HDCP,可播放 HD DVD、Blu-Ray 與其他保護內容。
12.
USB 2.0 設備接口 3 4:這兩組 4-pin 通用串行總線(USB)接口可連接到使
用 USB 2.0/1.1 接口的硬件設備。
1.10.2 內部接口
1. 前面板音頻連接排針(10-1 pin AAFP)
這組音頻外接排針供您連接到前面板的音頻數據線,除了讓您可以輕鬆地通過
主機前面板來控制音頻輸入/輸出等功能,並且支持 AC’97 HD Audio 音頻
標準。將前面板音頻輸入/輸出模塊的數據線的一端連接到這個插槽上。
默認情況下,本接口設置為 [HD]。若要將高保真音頻前面板模塊安裝至
本接請將 BIOS 序中Front Panel Type項目設置為 [HD]若要
AC 97 頻前面板模塊安裝至本接針請將此項目設置 [AC 97]
請參考“2.5.6 內置設備設置(Onboard Device Configuration)”部分
的說明。

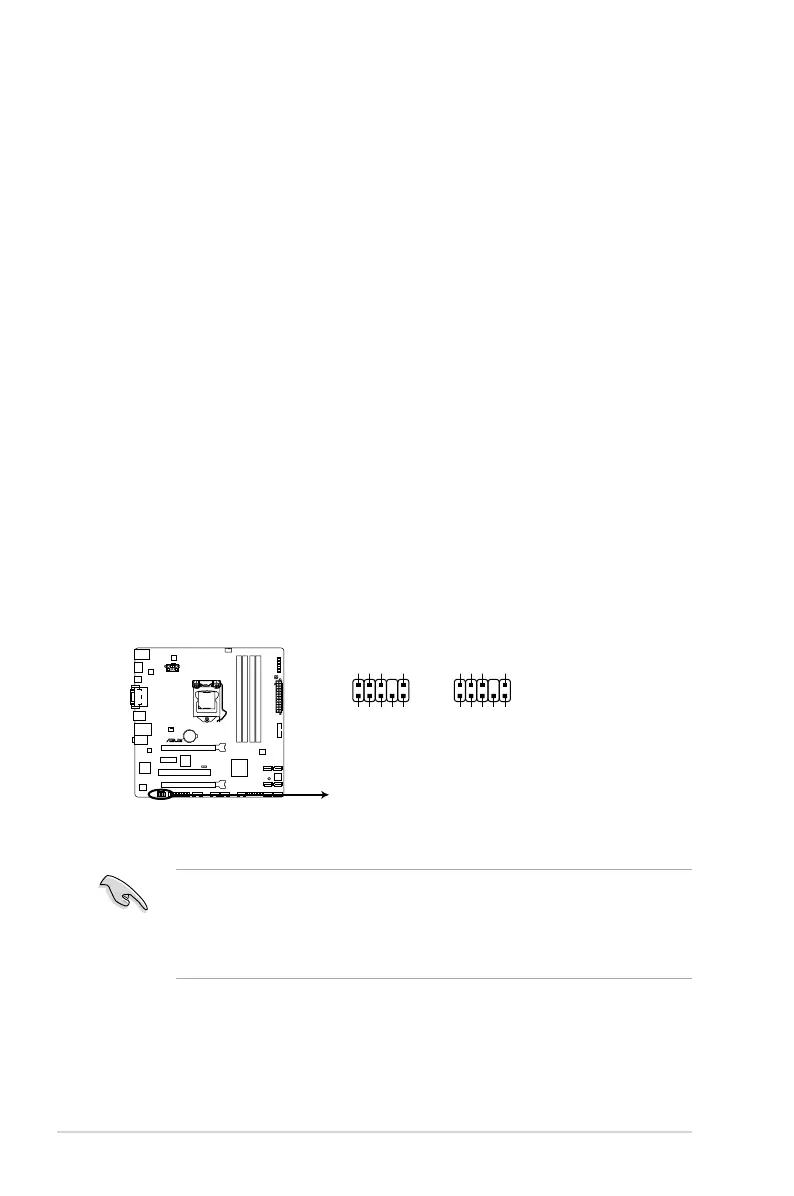

P8H77-M
P8H77-M Front panel audio connector
AAFP
PIN 1
AGND
NC
SENSE1_RETUR
SENSE2_RETUR
PORT1 L
PORT1 R
PORT2 R
SENSE_SEND
PORT2 L
HD-audio-compliant
pin definition
PIN 1
AGND
NC
NC
NC
MIC2
MICPWR
Line out_R
NC
Line out_L
Legacy AC’97
compliant definition
