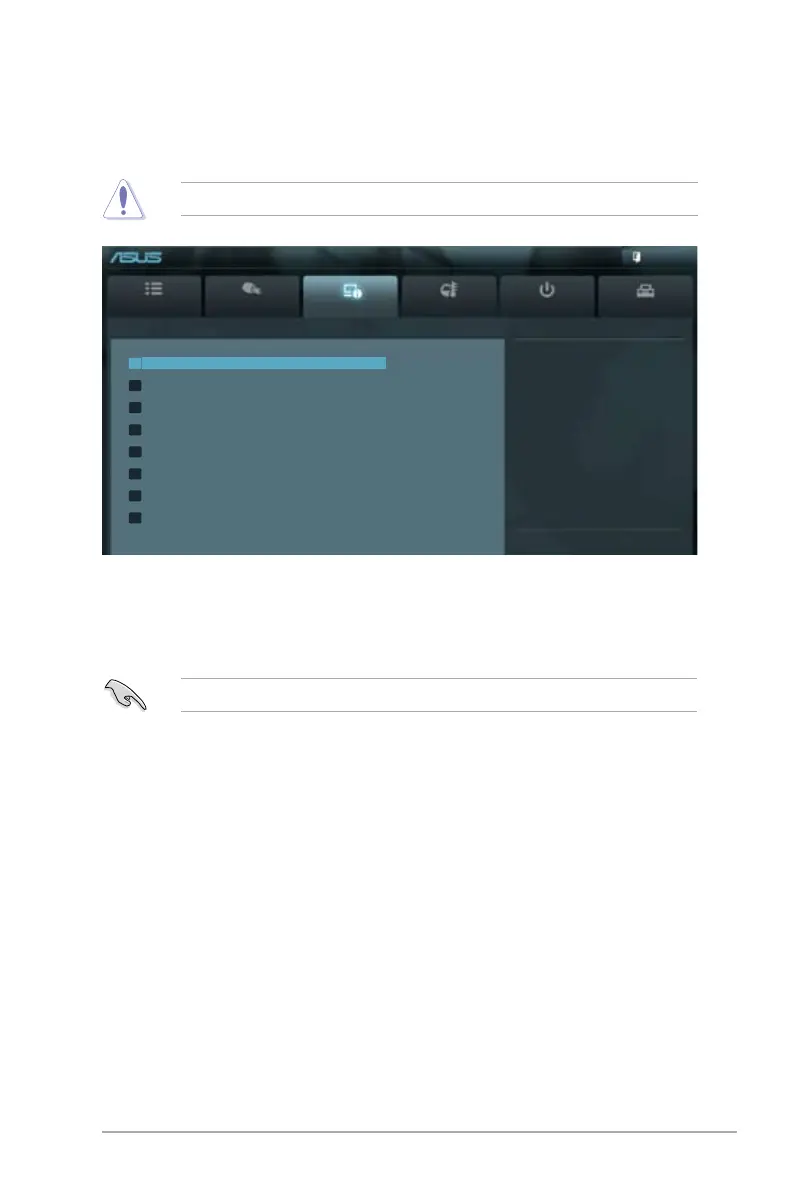

第二章：BIOS 信息 2-17
注意！在您設置本高級菜單的設置時，不正確的數值將導致系統損壞。
2.5 高級菜單（Advanced）
高級菜單可讓您改變中央處理器與其他系統裝置的細部設置。
Main
Ai Tweaker
Advanced Monitor Boot Tool
Exit
CPU conguration parameters
UEFI BIOS Utility - Advanced Mode
> CPU Conguration
> PCH Conguration
> SATA Conguration
> System Agent Conguration
> USB Conguration
> Onboard Devices Conguration
> APM
> Network Stack
2.5.1 處理器設置（CPU Configuration）
本項目顯示 BIOS 自動檢測的中央處理器各項信息。
子菜單中顯示的項目依據所安裝的 CPU型號而有所不同。
Intel Adaptive Thermal Monitor [Enabled]
[Enabled] 使過熱的 CPU 降低時鐘速度以降溫。
[Disabled] 關閉 CPU 熱量監控功能。
Active Processor Cores [All]
本項目用來選擇每個處理器封包中激活的 CPU 核心數。設置值有：[All] [1] [2] [3]
Limit CPUID Maximum [Disabled]
[Enabled] 啟動不支持帶有擴充 CPUID 功能的中央處理器的 legacy 操作系統。
[Disabled] 關閉此功能。
Execute Disable Bit [Enabled]
[Enabled] 開啟 No-Execution Page Protection技術。
[Disabled] 強迫 XD 功能總是降低至 0。

Asus P8H77-M Specifications

General

ECC	No
Non-ECC	Yes
Memory voltage	1.5 V
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1066, 1333, 1600, 1800, 1866, 2000, 2133, 2200 MHz
Supported memory module capacities	16GB, 1GB, 2GB, 4GB, 8GB
System bus rate	5 GT/s
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7
Maximum number of SMP processors	1
USB 2.0 connectors	3
Number of SATA III connectors	2
Number of Parallel ATA connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC887
Cooling type	Passive
Component for	PC
Power source type	ATX
Motherboard chipset	Intel H77
PC health monitoring	CPU, FAN, Temperature
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA II, SATA III
Cables included	SATA
Graphics card	HD Graphics
OpenGL version	3.2
DirectX version	11
Maximum resolution	2048 x 1536 pixels
Maximum graphics card memory	1696 MB
Parallel processing technology support	2-Way CrossFireX, LucidLogix Virtu, Quad-GPU CrossFireX
PCI Express slots version	2.0, 3.0
PCI Express configurations	1x4, 1x16
LAN controller	Realtek RTL8111F
Wi-Fi standards	Not supported
Networking features	Gigabit LAN
Ethernet interface type	Gigabit Ethernet
BIOS type	EFI AMI
ACPI version	2.0a
BIOS memory size	64 Mbit

Weight and Dimensions

Width	245 mm
