1-25第一章：產品介紹

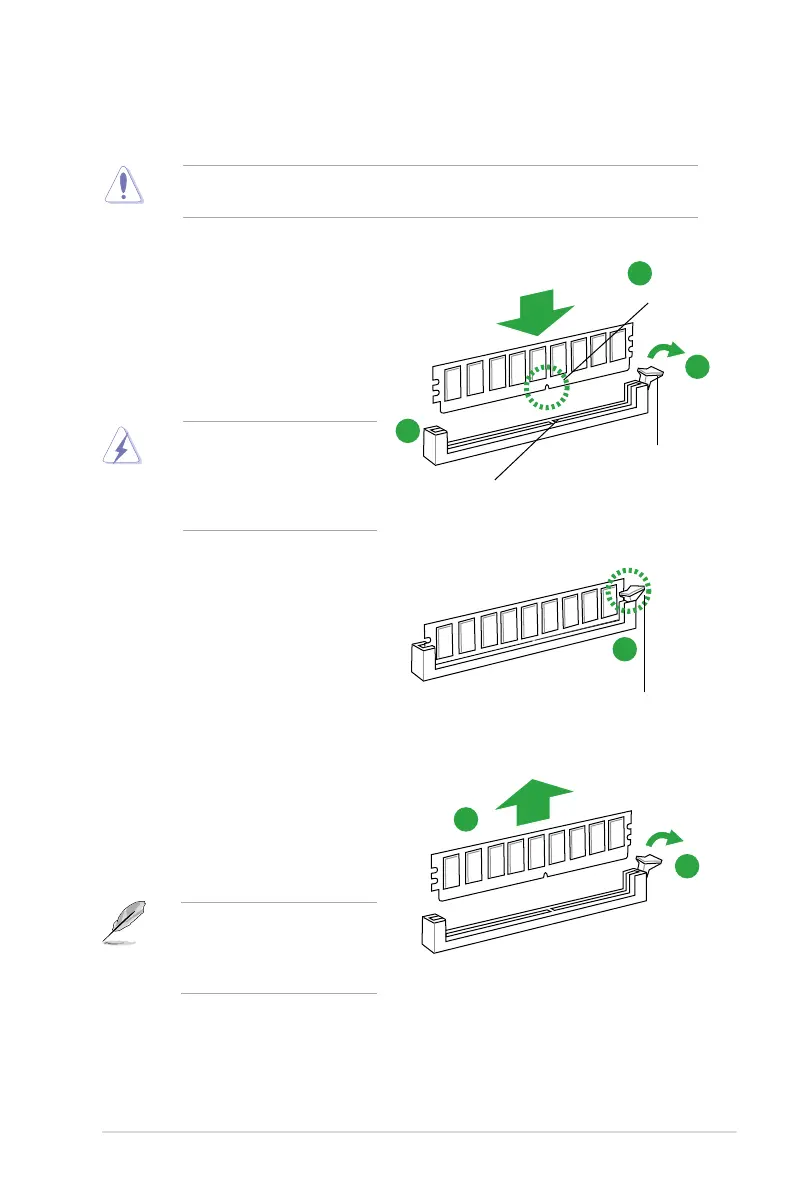

1.7.3 安裝內存條
安裝/取出內存條或其他的系統元件之前，請先暫時拔出電腦的電源適配
器。如此可避免一些會對主板或元件造成嚴重損壞的情況發生。
請依照下面步驟安裝內存條：
1. 先將內存條插槽的白色固定卡扣扳
開。
2. 將內存條的金手指對齊內存條插槽
的溝槽，並且在方向上要注意金手
指的缺口要對準插槽的凸起點。
DDR3 內存條金手指部份均
有缺口設計，因此只能以一
個固定方向安裝到內存條插
槽中。請勿強制插入以免損
及內存條。
3. 最後緩緩將內存條插入插槽中，若
無錯誤，插槽的白色卡扣會因內存
條安裝而自動扣到 內 存 條的凹孔
中。
2. 再將內存條由插槽中取出。
1.7.4 取出內存條
請依照以下步驟取出內存條：
1. 壓下內存條插槽的白色的固定卡扣
以鬆開內存條。
在壓下固定卡扣取出內存條
的同時，您可以用手指輕輕
地扶住內存條，以免彈出而
損及內存條。
向外扳開插槽卡扣
內存條缺口
2
1
插槽凸起點
1
1
2
卡扣會在內存條正確安裝後自動扣上
3

Asus P8H77-M Specifications

General

ECC	No
Non-ECC	Yes
Memory voltage	1.5 V
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1066, 1333, 1600, 1800, 1866, 2000, 2133, 2200 MHz
Supported memory module capacities	16GB, 1GB, 2GB, 4GB, 8GB
System bus rate	5 GT/s
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7
Maximum number of SMP processors	1
USB 2.0 connectors	3
Number of SATA III connectors	2
Number of Parallel ATA connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC887
Cooling type	Passive
Component for	PC
Power source type	ATX
Motherboard chipset	Intel H77
PC health monitoring	CPU, FAN, Temperature
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA II, SATA III
Cables included	SATA
Graphics card	HD Graphics
OpenGL version	3.2
DirectX version	11
Maximum resolution	2048 x 1536 pixels
Maximum graphics card memory	1696 MB
Parallel processing technology support	2-Way CrossFireX, LucidLogix Virtu, Quad-GPU CrossFireX
PCI Express slots version	2.0, 3.0
PCI Express configurations	1x4, 1x16
LAN controller	Realtek RTL8111F
Wi-Fi standards	Not supported
Networking features	Gigabit LAN
Ethernet interface type	Gigabit Ethernet
BIOS type	EFI AMI
ACPI version	2.0a
BIOS memory size	64 Mbit

Weight and Dimensions

Width	245 mm
