Asus P8H77-M User Manual

華碩 P8H77-M 主板用戶手冊1-44
1.14.2 Intel
®
Smart Response Technology
Intel
®
Smart Response Technology 用來提升整個系統性能，通過已經安裝的高速
SSD（最小空間需為 18.6GB）作為經常讀寫運行、加快硬盤與主要內存回應的快取
空間。主要的好處在於增加硬盤的速度，減少載入與等待的時間，並將存儲運用最大
化，減少硬盤不必要的讀寫動作也可降低電力的消耗。

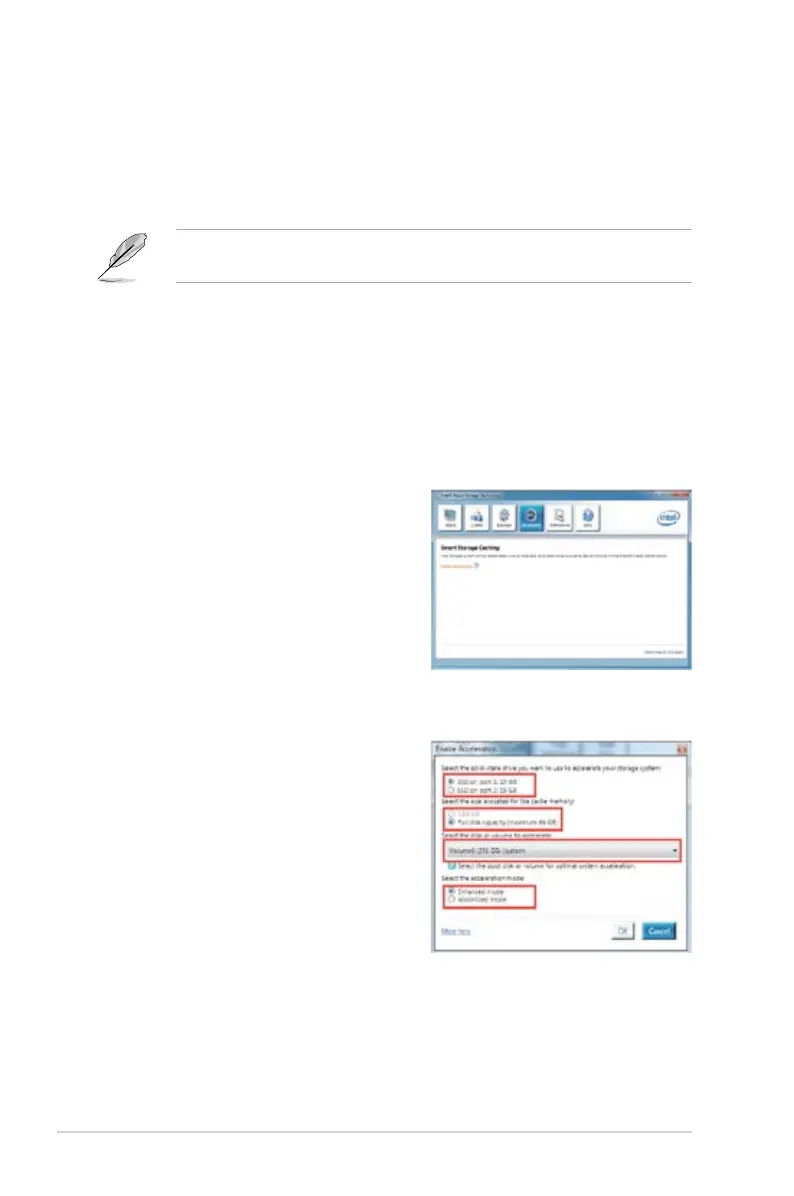

2. a. 選擇欲使用的 SSD 來加速存儲系
統。
b. 選擇指派給 SSD 作為快速訪問的空
間容量。
c. 選擇需要快速訪問空間的硬盤。
d. Enhanced mode：WRITE THROUGH，
同時將資料寫入 SSD 與硬盤。
Maximized mode：WRITE BACK，
先將資料寫入 SSD，稍後再寫入硬
盤。
1. 點擊【Acclerate】啟動【Smart
Response 技術】設置。
在使用 Intel
®
Smart Response 技術之前，將 BIOS 設置中的 SATA Mode
項目設置為 [RAID Mode]。請參考 3.5.3 SATA 設置 一節的說明。
安裝 Intel
®
Smart Response Technology
1. 將驅動程序與公用程序 DVD 光盤放入光驅，若系統已啟動光驅「自動播放」的
功能，會自動顯示軟件安裝菜單。
2. 點擊 驅動程序（Drivers）標籤頁，然後點擊 Intel
®
Rapid Storage Technology
Driver 驅動程序。
3. 依照屏幕指示完成安裝動作。
使 用 I n t e l
®
S m a r t R e s p o n s e
Technology

Asus P8H77-M Specifications

General

ECC	No
Non-ECC	Yes
Memory voltage	1.5 V
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1066, 1333, 1600, 1800, 1866, 2000, 2133, 2200 MHz
Supported memory module capacities	16GB, 1GB, 2GB, 4GB, 8GB
System bus rate	5 GT/s
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7
Maximum number of SMP processors	1
USB 2.0 connectors	3
Number of SATA III connectors	2
Number of Parallel ATA connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC887
Cooling type	Passive
Component for	PC
Power source type	ATX
Motherboard chipset	Intel H77
PC health monitoring	CPU, FAN, Temperature
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA II, SATA III
Cables included	SATA
Graphics card	HD Graphics
OpenGL version	3.2
DirectX version	11
Maximum resolution	2048 x 1536 pixels
Maximum graphics card memory	1696 MB
Parallel processing technology support	2-Way CrossFireX, LucidLogix Virtu, Quad-GPU CrossFireX
PCI Express slots version	2.0, 3.0
PCI Express configurations	1x4, 1x16
LAN controller	Realtek RTL8111F
Wi-Fi standards	Not supported
Networking features	Gigabit LAN
Ethernet interface type	Gigabit Ethernet
BIOS type	EFI AMI
ACPI version	2.0a
BIOS memory size	64 Mbit

Weight and Dimensions

Width	245 mm
