1-47第一章：產品介紹
• 「x」的數字為使用者建立未分配隱藏分區的磁盤編號。
• 請參考步驟 5 中關於 SSD 的未分配磁盤空間的詳細說明。

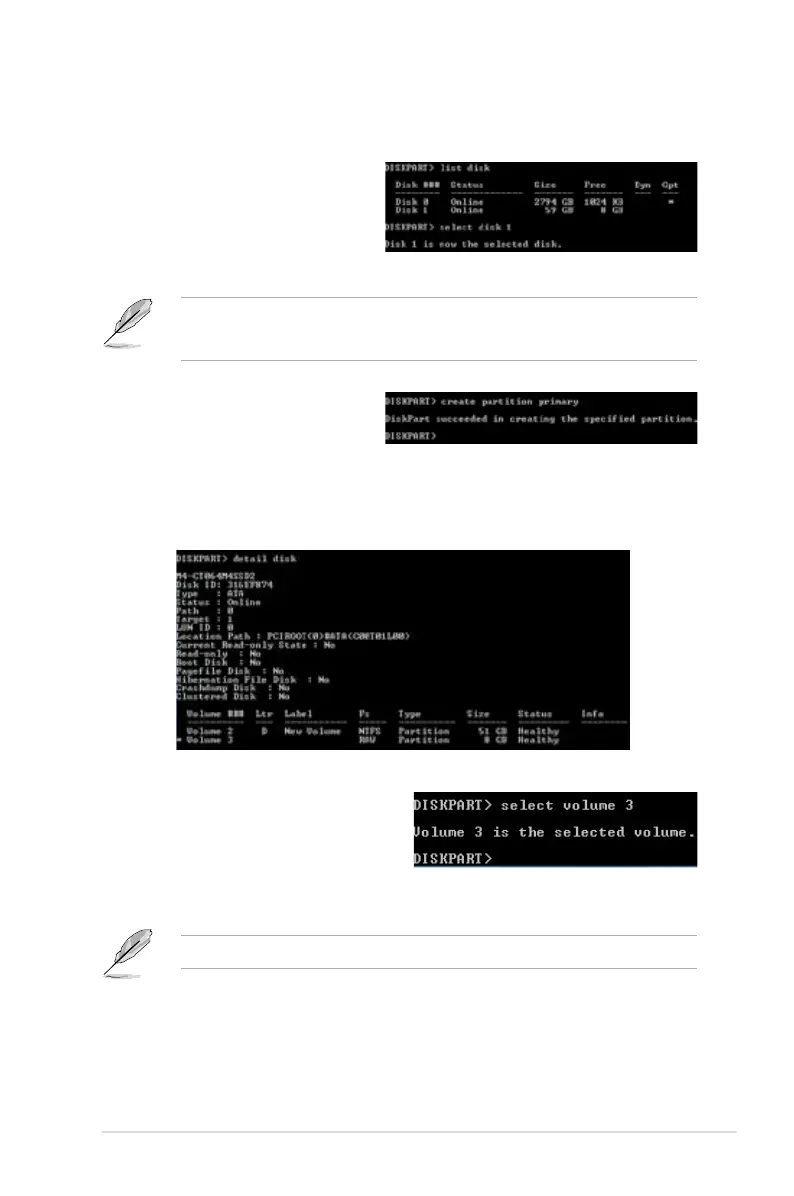

6. 若要啟動磁盤分割工具，請點擊【開始】>【程序】>【附件】>【命令提示符】。
7. 鍵入 <diskpart> 然後按下 Enter。
8. 在彈出的【diskpart】視窗中，
在【DISKPART】後方鍵入【list
disk】然後按下 Enter。鍵入【
select disk x（x = 編號）】來選
擇未分配容量的磁盤，然後按下
Enter。
9. 鍵入 <create partition primary>
，然後按下 Enter。
10. 建立主要的隱藏分區之後，鍵入 <detail disk> 並按下 Enter 來查看分割磁盤的詳
細信息。
11. 選擇與想要壓縮的磁盤空間容量相
同大小的磁盤編號，鍵入 <select
volume x（x = 編號）> 然後按下
Enter 來儲存 Intel
®
Rapid Start 隱藏
分區。
「x」的數字為使用者欲建立儲存隱藏分區的磁盤編號。

Asus P8H77-M Specifications

General

ECC	No
Non-ECC	Yes
Memory voltage	1.5 V
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1066, 1333, 1600, 1800, 1866, 2000, 2133, 2200 MHz
Supported memory module capacities	16GB, 1GB, 2GB, 4GB, 8GB
System bus rate	5 GT/s
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7
Maximum number of SMP processors	1
USB 2.0 connectors	3
Number of SATA III connectors	2
Number of Parallel ATA connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC887
Cooling type	Passive
Component for	PC
Power source type	ATX
Motherboard chipset	Intel H77
PC health monitoring	CPU, FAN, Temperature
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA II, SATA III
Cables included	SATA
Graphics card	HD Graphics
OpenGL version	3.2
DirectX version	11
Maximum resolution	2048 x 1536 pixels
Maximum graphics card memory	1696 MB
Parallel processing technology support	2-Way CrossFireX, LucidLogix Virtu, Quad-GPU CrossFireX
PCI Express slots version	2.0, 3.0
PCI Express configurations	1x4, 1x16
LAN controller	Realtek RTL8111F
Wi-Fi standards	Not supported
Networking features	Gigabit LAN
Ethernet interface type	Gigabit Ethernet
BIOS type	EFI AMI
ACPI version	2.0a
BIOS memory size	64 Mbit

Weight and Dimensions

Width	245 mm
