Asus Z10PH-D16 - Lan Controller Setting (3-Pin Lan_Sw1, Lan_Sw2); Vga Controller Setting (3-Pin Vga_Sw1)

2-20
Chapter 2: Hardware information

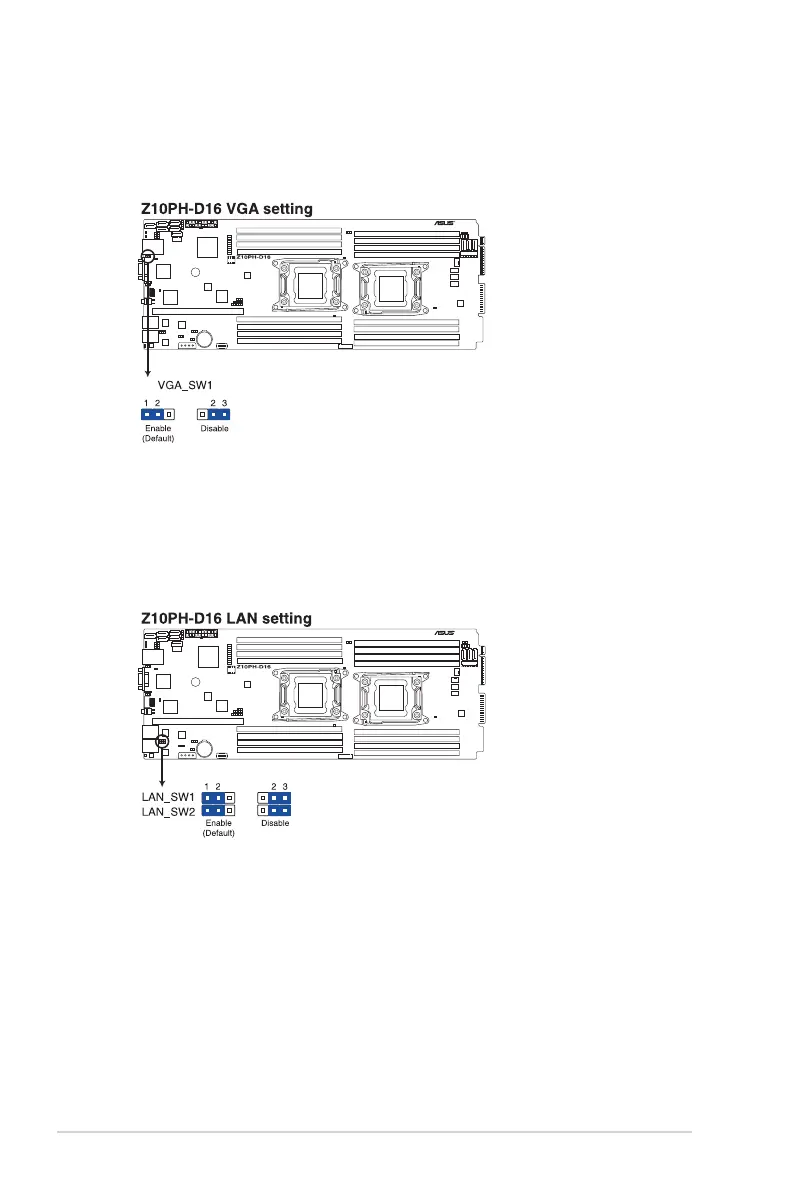

2. VGA controller setting (3-pin VGA_SW1)
ThisjumperallowsyoutoenableordisabletheonboardVGAcontroller.Settopins
1–2toactivatetheVGAfeature.
3. LAN controller setting (3-pin LAN_SW1, LAN_SW2)
These jumpers allow you to enable or disable the onboard Intel
®
IntelI210ATGigabit
LANcontrollers.Settopins1–2toactivatetheGigabitLANfeature.
