Asus Z10PH-D16 - Me Firmware Force Recovery Setting (3-Pin Me_Rcvr1); Raid Configuration Utility Selection (3-Pin Raid_Sel1)

ASUS Z10PH-D16
2-21

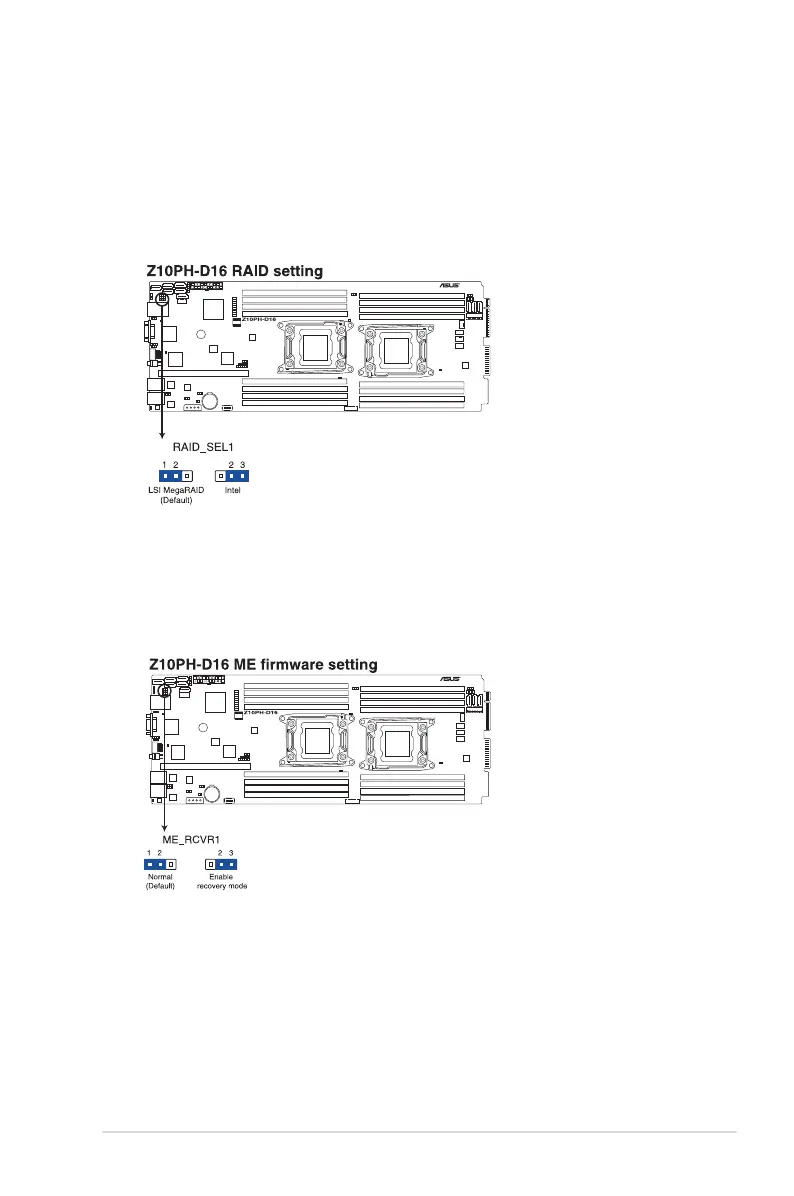

5. ME firmware force recovery setting (3-pin ME_RCVR1)
ThisjumperallowsyoutoquicklyrecovertheIntelManagementEngine(ME)rmware
when it becomes corrupted.
4. RAID configuration utility selection (3-pin RAID_SEL1)
ThisjumperallowsyoutoselecttheRAIDcongurationutilitytousewhenyoucreate
diskarrays.Placethejumpercapsoverpins1–2tousethethirdpartysoftwareLSI
MegaRAIDsoftwareRAIDCongurationUtility;otherwise,placethejumpercapsto
pins2–3tousetheIntel
®
RapidStorageTechnologyenterpriseSATAOptionROM
Utility.
