2-38
Chapter 2: Hardware information
2.8 Z10PH-D16 Golden Finger
1. Golden Finger
TheZ10PH-D16goldenngerisaproprietaryconnectorthatintegratesmostofthe
functions of the motherboard's onboard connectors and switches.

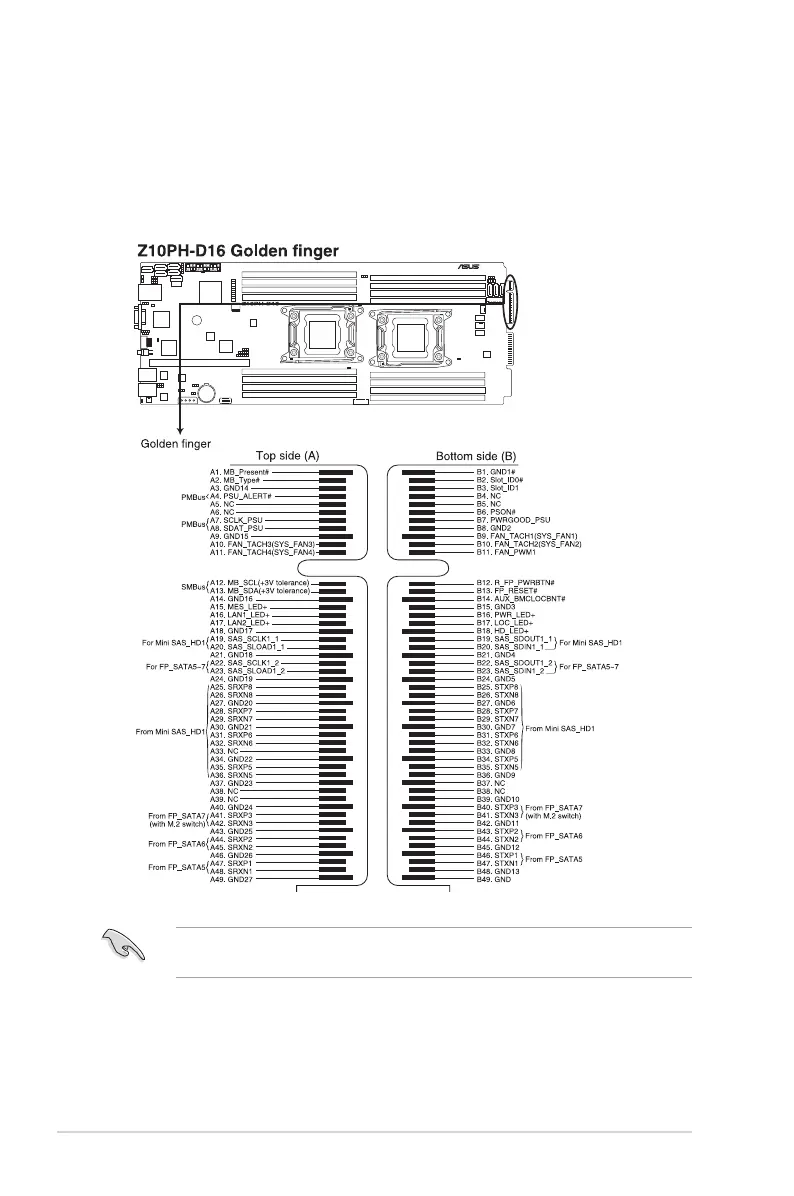

Refertothefollowingillustrationforthegoldennger'spindenitions.
ThegoldenngerofZ10PH-D16shipswithacaptoprotectthepins.Ensuretoremovethe
capbeforeusingthegoldennger.
