ASUS Z10PH-D16
2-23

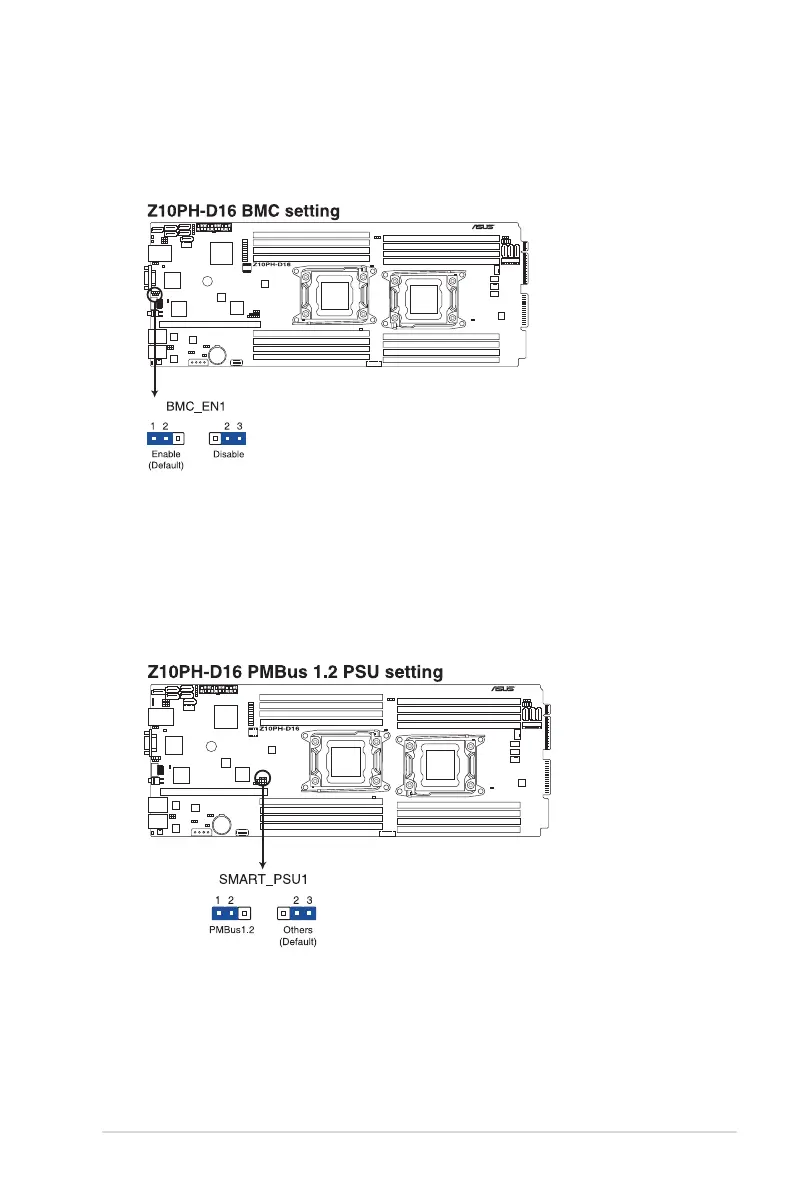

8. BMC Setting (3-pin BMC_EN)
 ThisjumperallowsyoutoenableordisabletheASMB8.
9. PMBus 1.2 PSU select jumper (3-pin SMART_PSU1)
ThisjumperallowsyoutoselectPSUPMBusversion.Settopins1–2forPMBus,set
to pins 2–3 for others.
