Asus Z10PH-D16 - DDR4 Thermal Event Setting (3-Pin DIMMTRIP1); Serial General Purpose Input;Output Setting (3-Pin Sgpio_Sel1)

2-22
Chapter 2: Hardware information

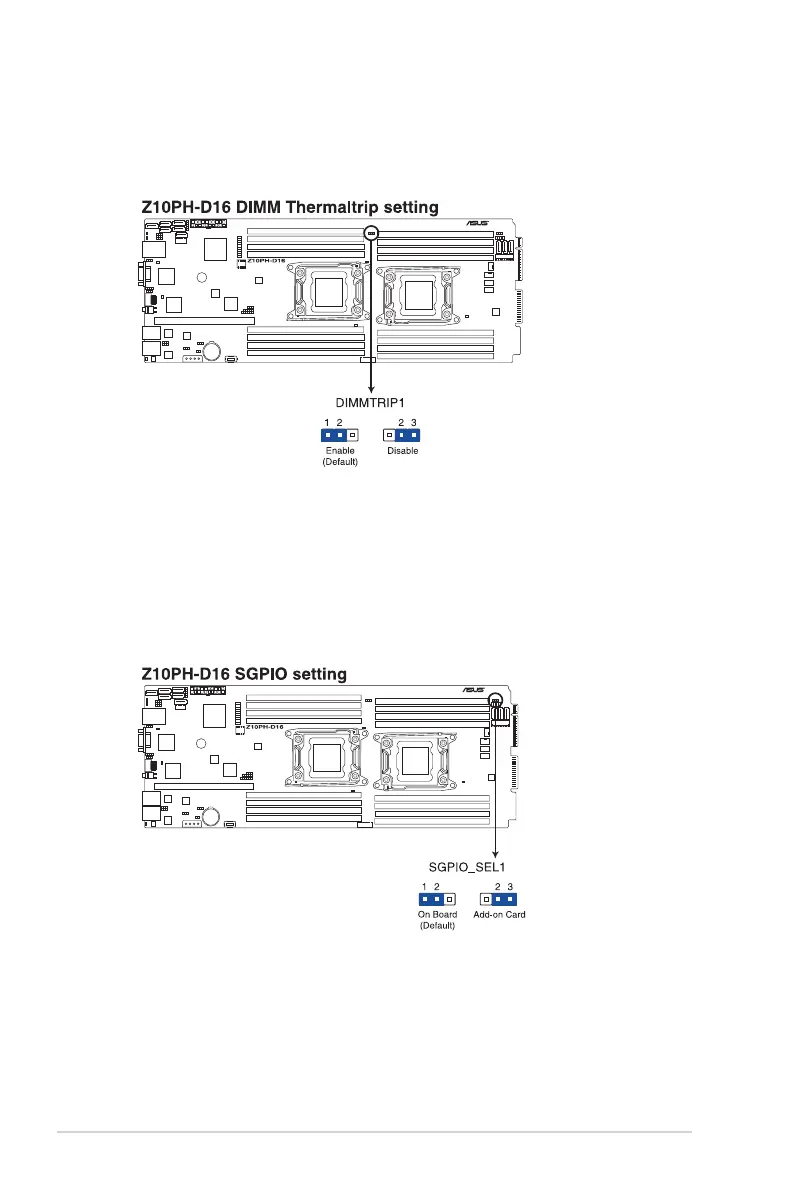

7. Serial General Purpose Input/Output setting (3-pin SGPIO_SEL1)
Thisjumperallowsyoutoselectastoragedevice.Settopin1-2toenableonboard
C612chipsetSATASGPIOfunction(default)orsettopin2-3toenableAdd-onRAID
card.
6. DDR4 thermal event setting (3-pin DIMMTRIP1)
 ThisjumperallowsyoutoenableordisableDDR4DIMMthermalsensingeventpin.
