ASV RC-100 Service Manual

3-1
3. System Diagrams
Chapter Overview
This chapter contains diagrams for the following RC-
100 systems: hydraulic charge system, auxiliary cir-
cuit system, drive loop system, loader valve, sole-
noid block, and electrical attachment outlet
Hydraulic Charge System

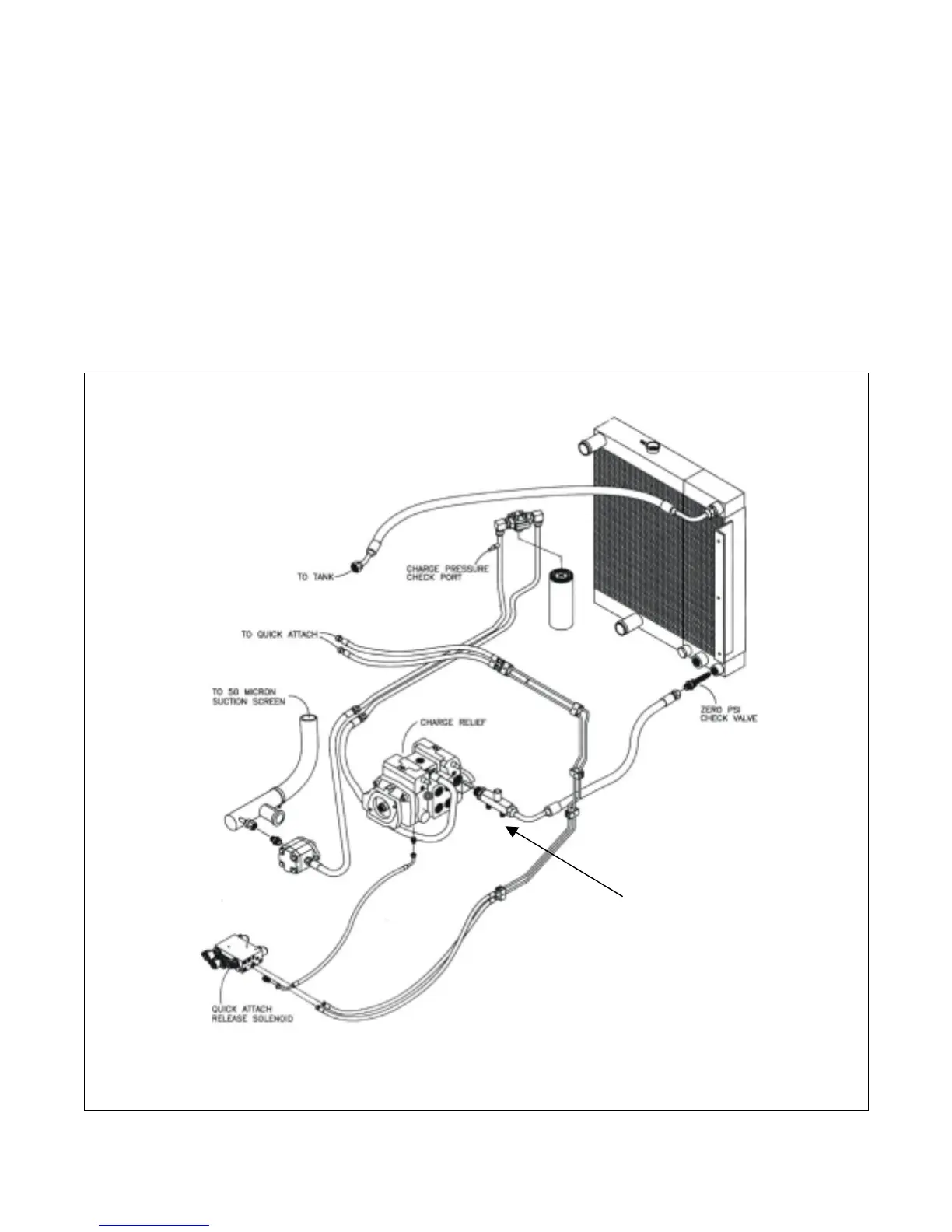

Figure 3-1 RC-100 Hydraulic Charge System
15 LB. RELIEF VALVE
RETURN TO TANK
