10. Undercarriage Disassembly and Assembly
10-4
3. After the track is off of the 14" wheels, the rest of
the track will easily come off of the undercarriage.

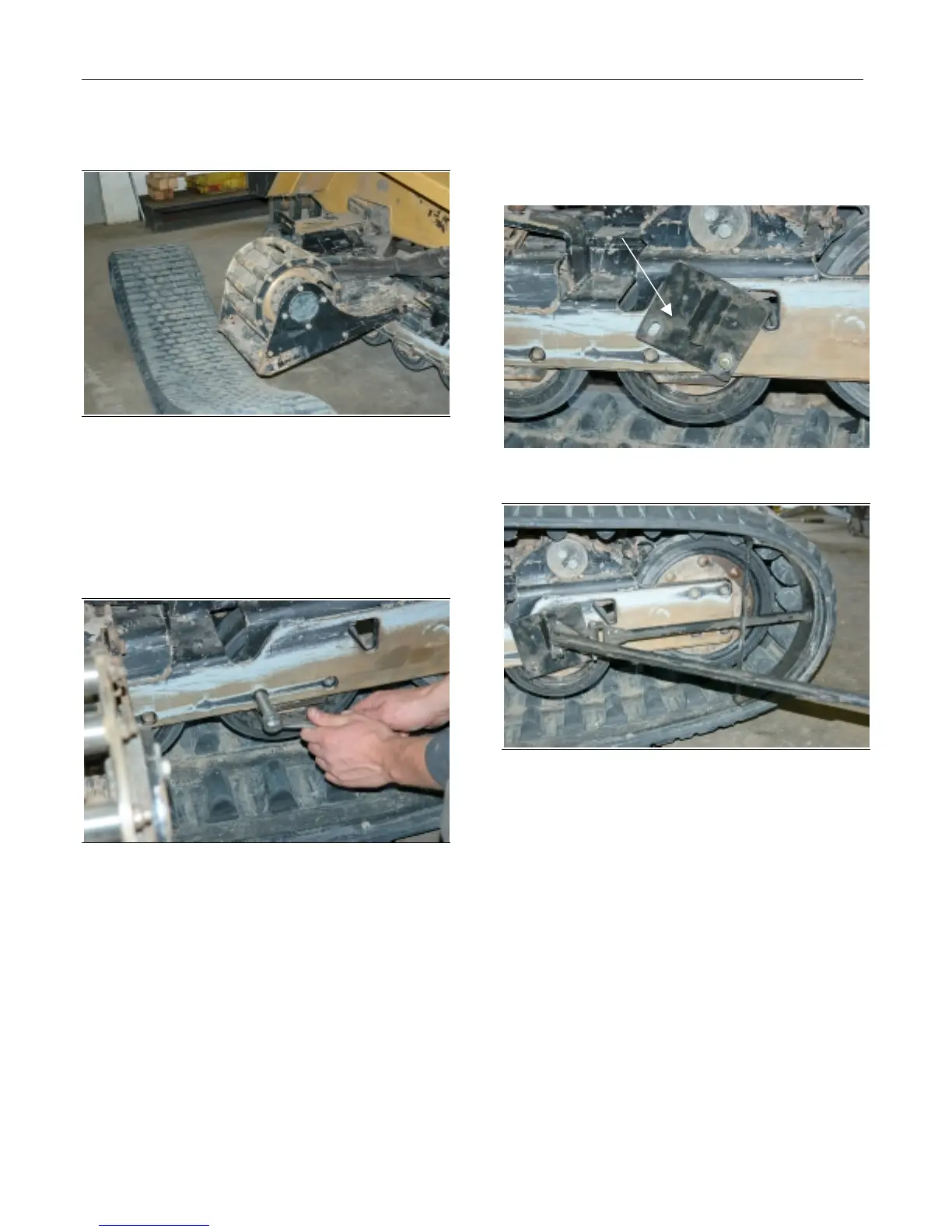

Figure 10-12
Track Installation (Must have track
installation tool PN# 0703-138)
1. Install the track installation tool as shown in
Figures 10-13 through 10-15.
Figure 10-13
2. Remove the two wheel shaft keeper screws
from the outside wheel plate.
3. Install the track tool pivot base as shown in
Figure 10-14 using the longer capscrews
supplied with the pivot base.
Figure 10-14
Figure 10-15
3. Lubricate the front and rear 14" wheels.
4. Get one end of the track partially on, and then
do the same thing to the other end; the track tool
works on both ends of the undercarriage. Place
the radius end of the track tool onto the drive
lugs and pry the track onto the 14" wheels. You
will have to reset the track tool several times to
accomplish this.
Install track tool pivot base
To Next Page
