Rubber Track Loader
7. Radiator/Oil Cooler Disassembly and Assembly
7-2

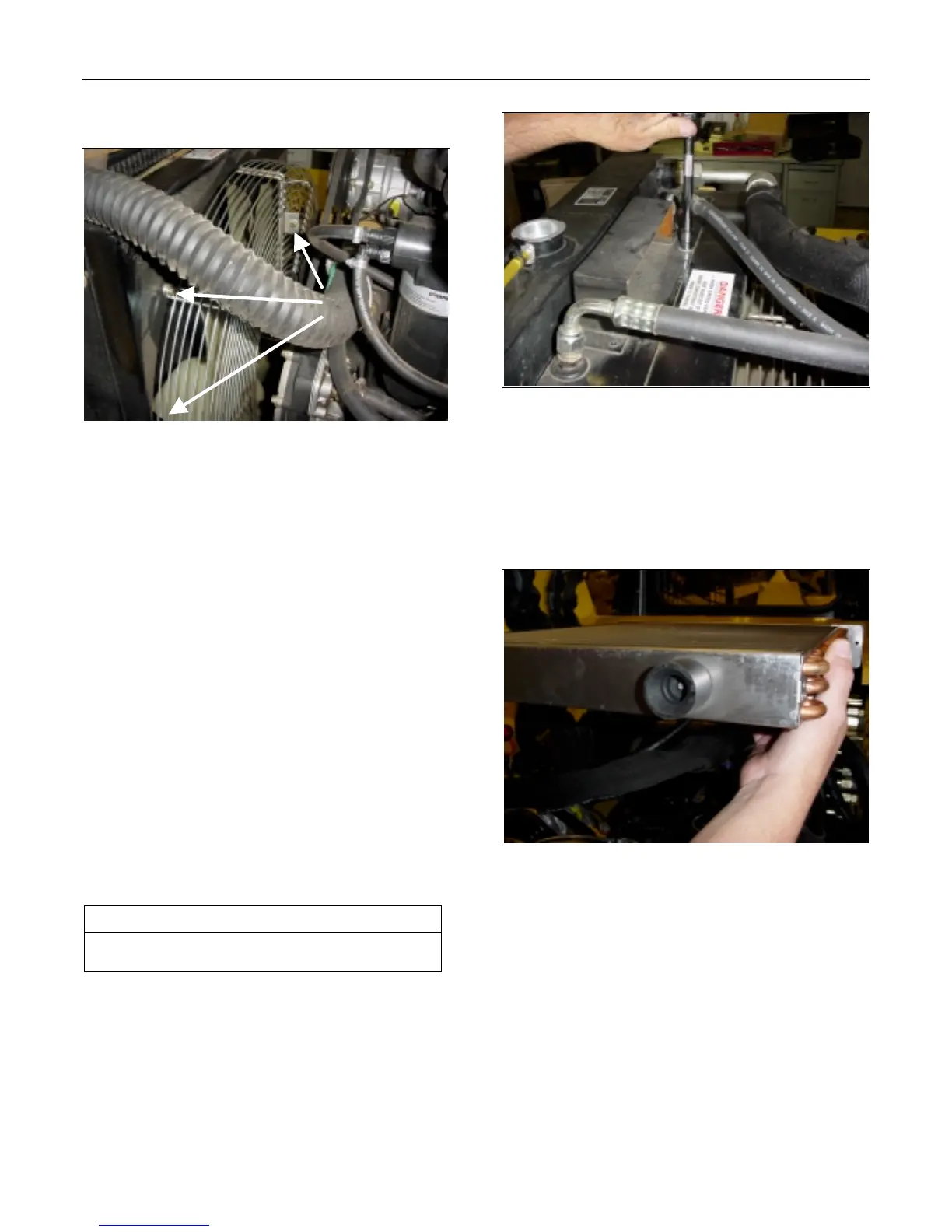

Fan Guard Removal
Figure 7-1
1. Remove the bolts that secure the fan guard to
the fan shroud.
2. Remove the fan guard from the engine com-
partment.
Fan Guard Installation
1. Position the fan guard over the fan and against
the fan shroud.
2. Install the capscrews that secure the fan guard
to the fan guard mounts.
3. Make sure there is proper clearance between
the fan guard and the fan.
Air Conditioner Condenser Removal
The tools required for radiator/cooler removal and
installations are listed below. Use manufacturer-
recommended tools whenever possible.
Required Tools
Combination Wrench
Socket Wrench
Figure 7-2
1. Remove the 4 bolts that secure the condenser to
the fan shroud.
2. Lift straight up while moving the condenser from
side to side. The condenser is held in place at the
bottom by two rubber poppets (see figure 7-3). Mov-
ing the condenser from side to side will help break
these free.
Figure 7-3
To Next Page
