4-1
4. Machine Controls
and Instrumentation
Chapter Overview
This chapter contains an overview of the machine
controls and instrumentation. It includes an illustra-
tion of the following controls and instrumentation
components and a description of their functions.
• Machine controls
• Dash panel
• Gauge/warning light panel

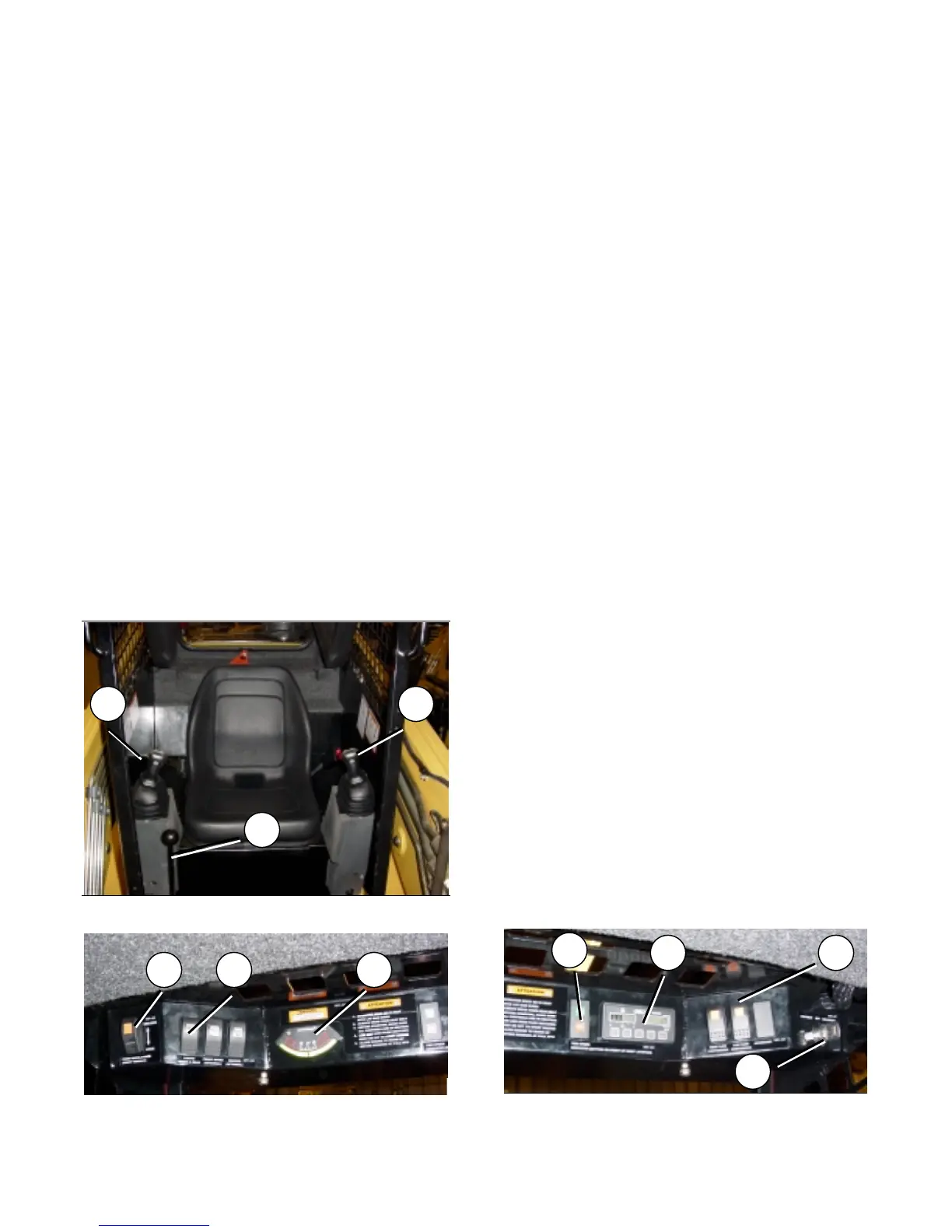

Machine Controls
There are three primary machine controls: loader &
drive control (1&2) and throttle (3).
Loader Control
The loader control (1) allows the operator to raise,
lower and pivot the attachment using a single, pilot-
operated joystick.
Figure 4-1
Drive Control
The drive control (2) allows the operator to change
directions and speed using a simple, pilot-operated
joystick.
Throttle
The throttle controls engine rpm.
Dash Panel
The dash panel (Figures 4-2 & 4-3) is positioned for
easy visibility in the “heads up” position inside the
operator’s enclosure. The dash panel includes the
following components.
(1) Power quick-attach switch
(2) Switch panel
(3) Slope indicator
(4) Two speed indicator
(5) Gauge/warning light panel
(6) Switch panel
(7) Ignition / key
Figures 4-2 & 4-3
1 2
1 2 3
3
4
5 6
7
