ASV RC-100 - Drive Motor Removal

Rubber Track Loader
10. Undercarriage Disassembly and Assembly
10-7
Figure 10-25
Figure 10-26

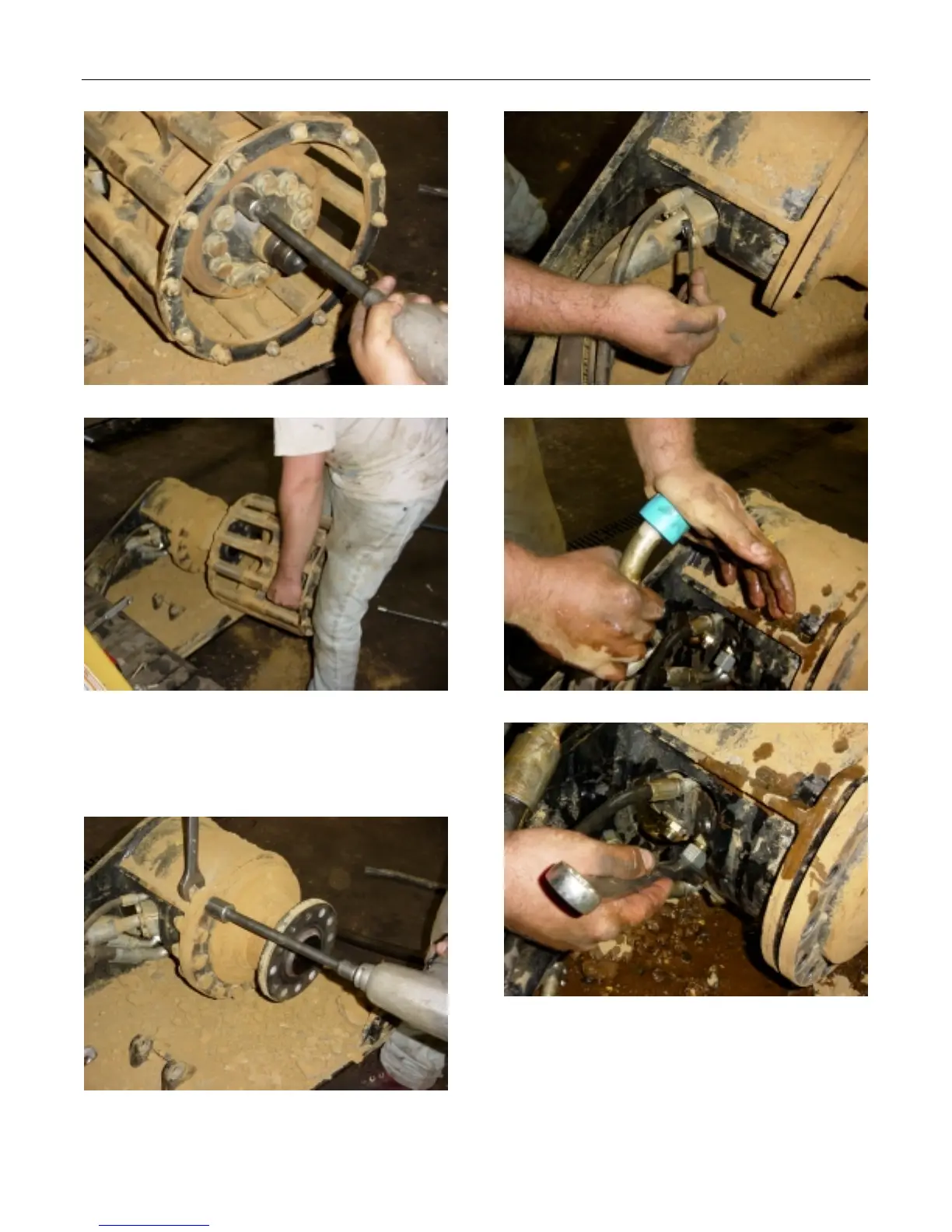

Drive Motor Removal
1. Drain the hydraulic fluid, see chapter 11. Remove
the bolts which fasten the drive motor to the drive
table.
Figure 10-27
2. Remove all hoses from the drive motor.
Figure 10-28
Figure 10-29
Figure 10-30
