Rubber Track Loader
10. Undercarriage Disassembly and Assembly
10-8

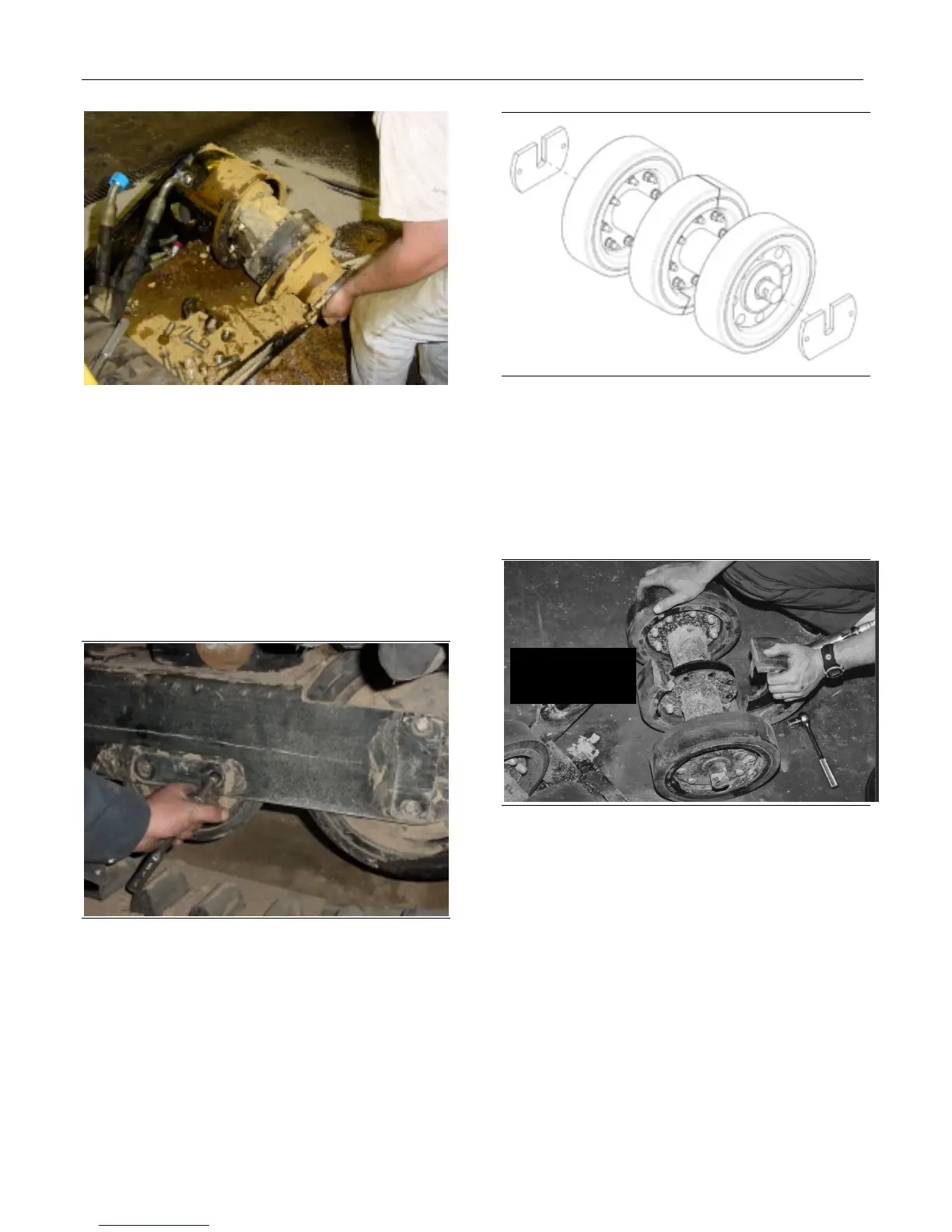

Figure 10-31
3. Pull the drive motor free from the drive table
housing.
Wheel Replacement
1. Remove the bolts which fasten the wheel tube to
the frame rail, there is two on the inside and 2 on the
out side.
Figure 10-32
2. Remove the wheel shaft keeper plates from both
ends of the shaft.
Figure 10-33
3. Unbolt the wheels from the tube and replace,the
center wheel is split for easy removal and
installation
Figure 10-34
Center wheel is
split
