Rubber Track Loader
10. Undercarriage Disassembly and Assembly
10-9
14" Wheel Keeper Plates
The 14" Wheels on each end can be spaced out 1/4"
each for a total of 1/2". This can be done if the track
has stretched to the point where the standard
adjustment holes are not enough.
Figure 10-35
1. Flip both the inside and outside keeper plates on
the end 14" wheels to increase the length. The 14"
wheel scrapers may need to be adjusted after this is
performed.

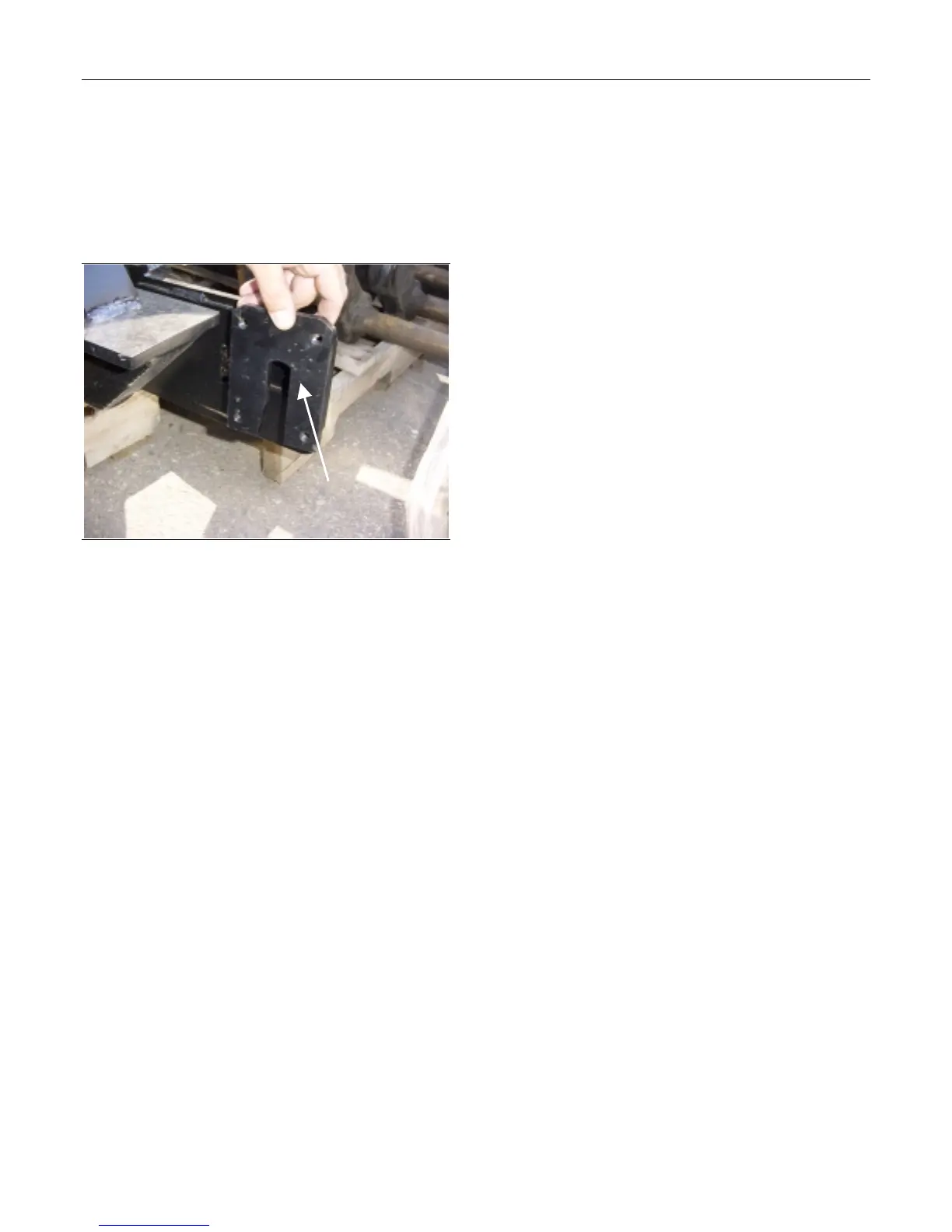

Shown in the
"flipped" position
