Rubber Track Loader
10. Undercarriage Disassembly and Assembly
10-5

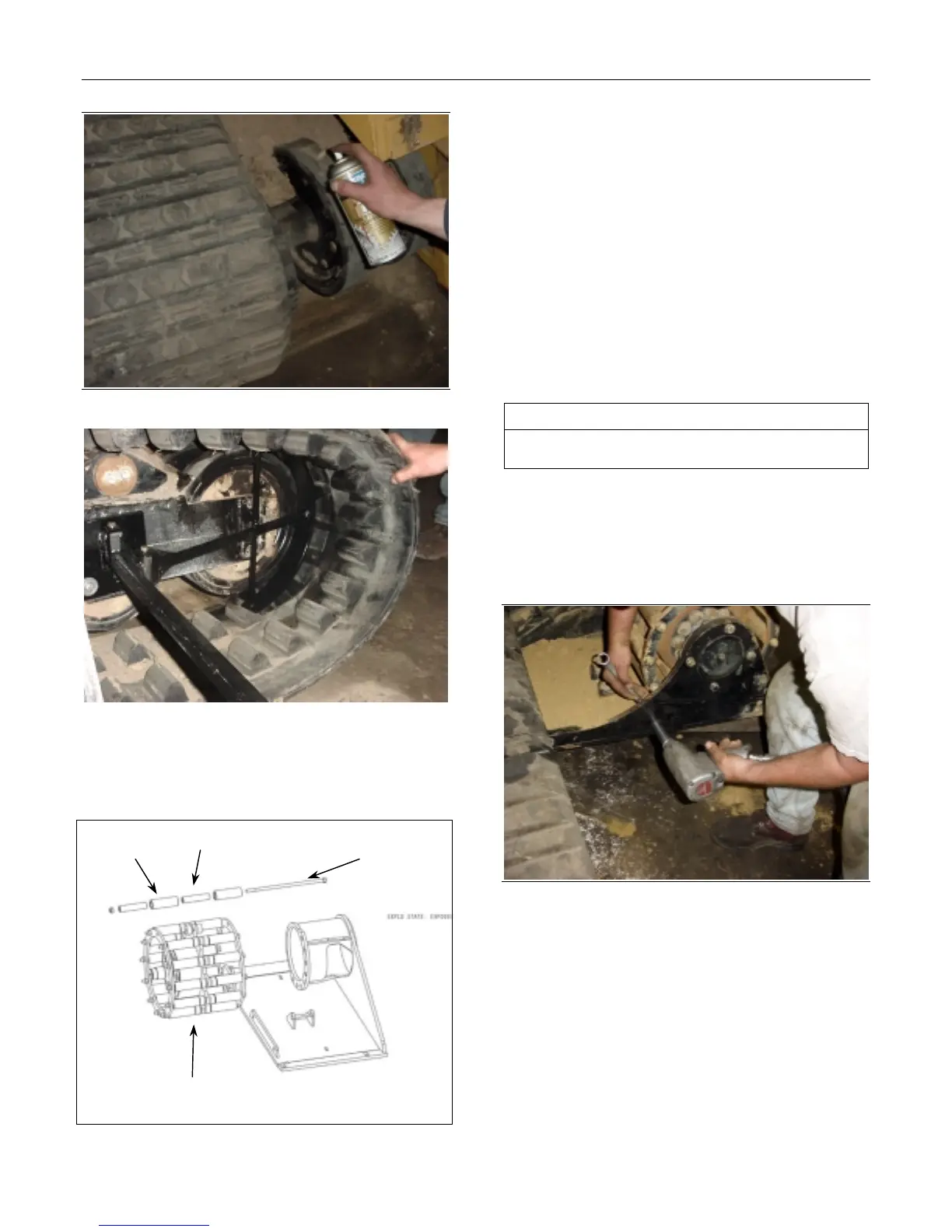

Figure 10-16
Figure 10-17
Sprocket Roller Replacement
1. Remove and replace the sprocket roller bolts.
2. The steel pin that the roller pivots on is hardened
steel, and may not need to be replaced at the same
time as the roller.
Sprocket Removal and
Installation
The tools required for sprocket removal and
installation are listed in Table 0-1. Use
manufacturer-recommended tools whenever
possible.
Table 0-1
Required Tools
Socket Wrench
Combination Wrench
Sprocket Removal
1. Remove the 7 bolts that fasten the bearing plate
to the drive table.
Figure 10-18
Drive Sprocket
Roller
Steel Pin
Sprocket
Roller Bolt
