Rubber Track Loader
10. Undercarriage Disassembly and Assembly
10-6

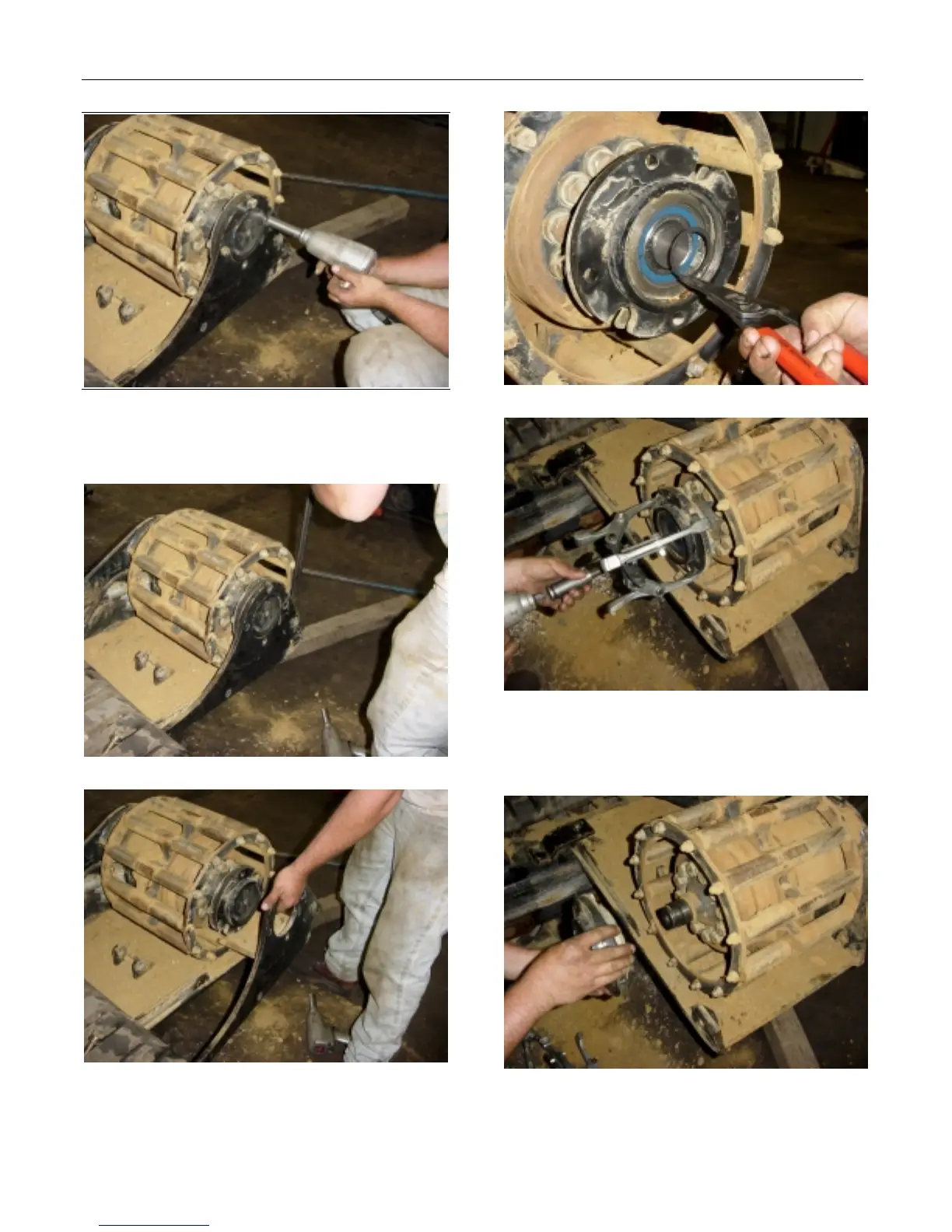

Figure 10-19
2. Pry the bearing plate off.
Figure 10-20
Figure 10-21
3. Remove the soft plug from the end of bearing
flange and remove the snap ring on the shaft.
Figure 10-22
Figure 10-23
4. Using a puller, remove the bearing and bearing
housing from the shaft.
Figure 10-24
5. Remove the bolts that fasten that fasten the
sprocket to the drive motor.
