Rubber Track Loader
6. Chassis Disassembly and Assembly
6-2

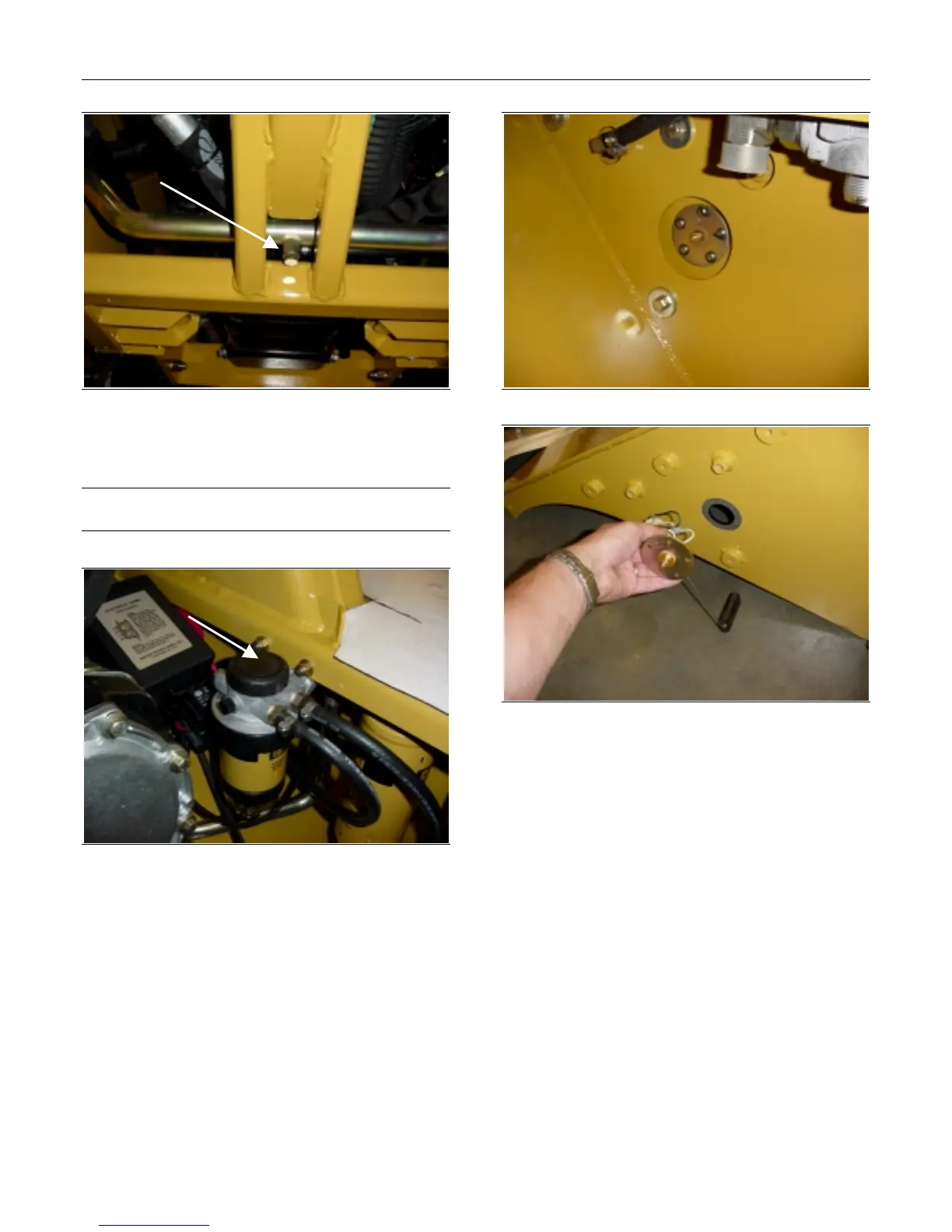

Figure 6-1
2. Remove fuel/water separator to gain access to
the fuel sender.
Note: If the fuel sending unit wires are crossed, the fuel
gauge will not work.
Figure 6-2
3. Remove the fuel sending unit. Be careful not to
damage the float mechanism when pulling it
through the opening in the fuel tank.
Figure 6-3
Figure 6-4
Fuel Tank Removal
The RC-100 has two fuel tanks that are connected
by a cross over tube, the procedure is basically the
same for each tank.
1. Drain the fuel tanks.
2. With the engine cold, remove the exhaust pipe,
and loosen the muffler. The muffler does not need
to be removed, but having it loose will enable access
to some fuel tank mounting bolts.
Fuel drain
plug
Remove fuel/water
separator
To Next Page
