Rubber Track Loader
6. Chassis Disassembly and Assembly
6-3

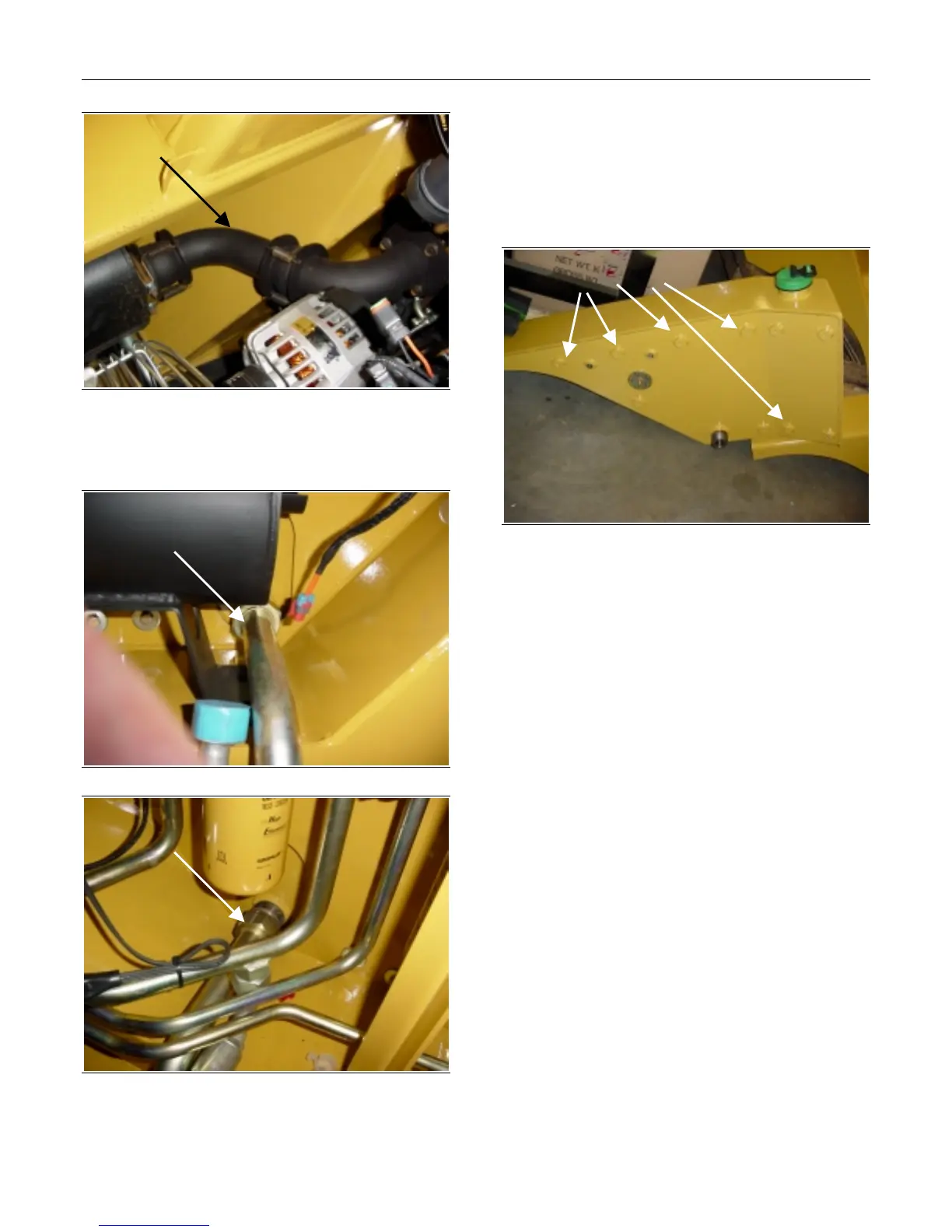

Figure 6-5
3. Loosen up the cross over tube on both end,
where it enters each fuel tank.
Figure 6-6
Figure 6-7
4. Remove wire to fuel sending unit on right side
tank.
5. Remove fuel tank mounting bolts, vent and return
hoses on each tank, use floor jack to secure fuel
tanks.
Figure 6-8
6. Once a fuel tank has been removed, the cross
over tube can be removed from a hole on either side
of the frame.
Remove Exhaust
Pipe
Cross-over Tube
Fitting, Left Side
Cross-over Tube
Fitting, Right Side
Remove Mounting
bolts
