ASV RC-100 - Auxiliary Pump Removal

Rubber Track Loader
9. Transmission and Drive Disassembly and Assembly
9-3

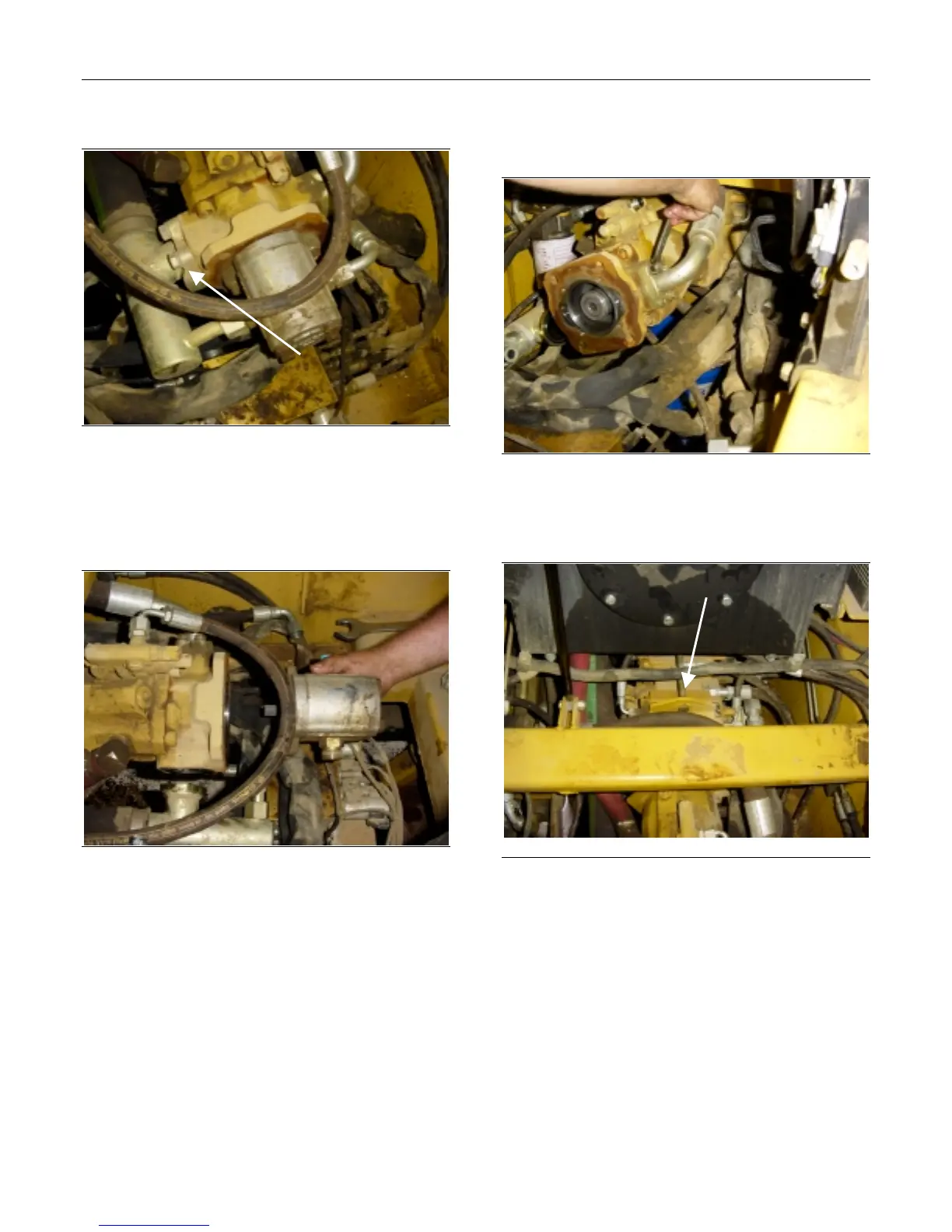

8. Remove hoses attached to charge pump.
Figure 9-6
9. Remove the split flange in order for the charge
pump clear. Remove the 2 bolts that mount the
pump to the auxiliary, and remove the charge
pump.
Figure 9-7
Auxiliary Pump Removal
1. Remove all hoses from auxiliary pump.
Figure 9-8
2. Loosen pump support bolt. Pump support bolt
has a jam nut on the engine end that should be
loosen first.
Figure 9-9
3. Remove the two bolts that mount the auxiliary
pump to the hydrostatic pumps.
Remove split
flange
Pump support bolt
