5. Operator Enclosure Disassembly and Assembly
5-6
Install Ends on
Ball Joints

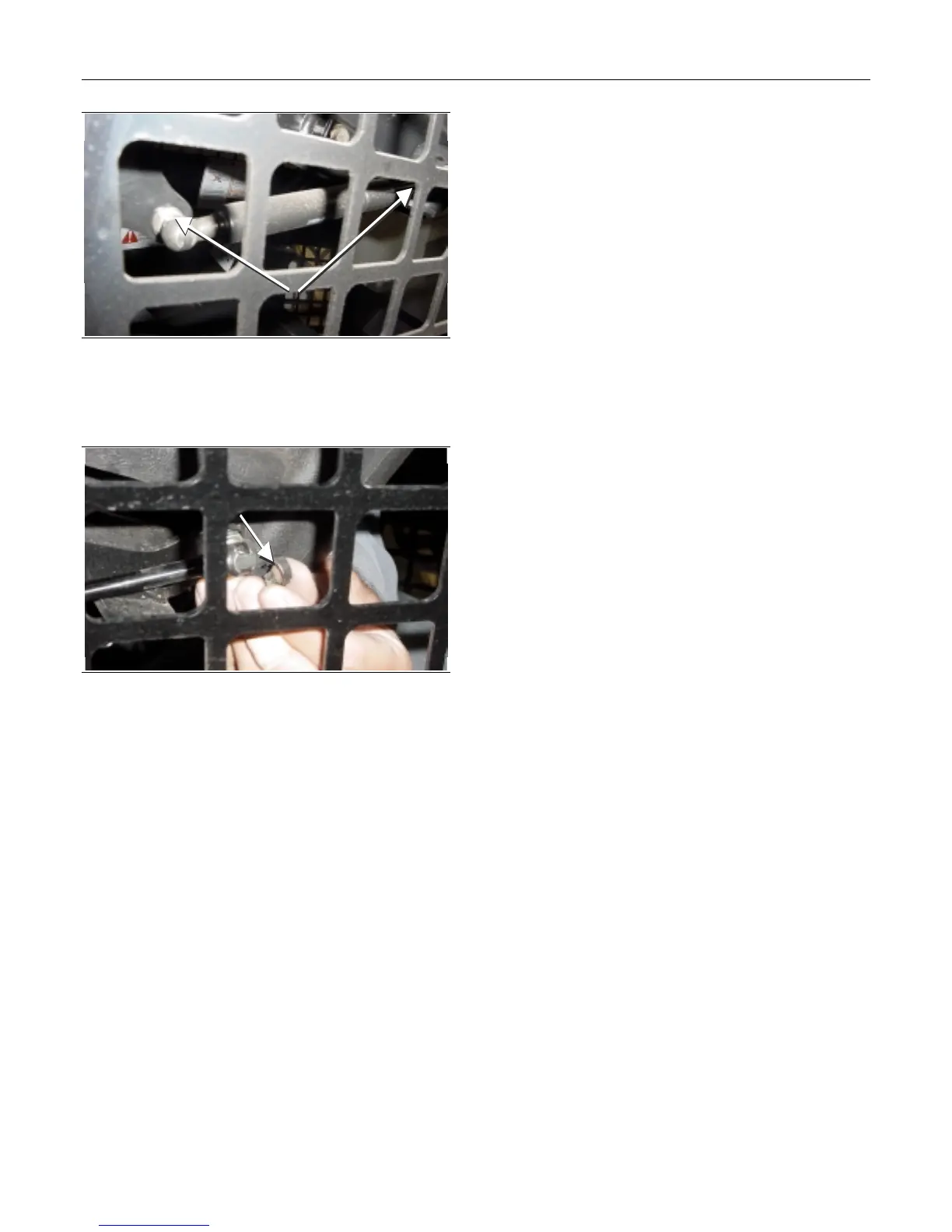

Figure 5-22
2. Install the ends of the lap bar gas assist spring
onto the ball joints.
Insert
Retainin
g
Cli
p
Figure 5-23
3. Slide the retaining clip on to each end of the gas
assist spring.
