DCB-05V2 Gate Controller Owner Installation Instructions
This section illustrates how to locate, view and adjust
parameters.
Locating parameters
Refer to Appendix A for Consile Menu Structure. Locate the required
parameter and note the MENU number. The example used in
(Fig. B.1) displays “CLOSE LOCK TIME”
Changing Setting
a. Press NEXT/PREV to navigate to the required menu.
b. Press SET to show the sub-menu.
c. Press NEXT/PREV to go to the required sub-menu.
d. Press OPEN/CLOSE to change parameter setting. Holding
the button down causes the parameter’s value to change
rapidly. The longer the button is held the faster the value
changes.
e. Press SET to SAVE setting.
Reload Default Setting
a. Press NEXT/PREV buttons to display LOAD DEFAULT
screen.
b. Press SET to load the default value.
Return To Menu
If the parameter values are not to be changed, press EXIT to
return to sub menu. Press EXIT again to return to the MAIN
SCREEN.
2: Close Lock
Time (SEC) 0.5
2: Close Lock
Time (SEC) 0.5

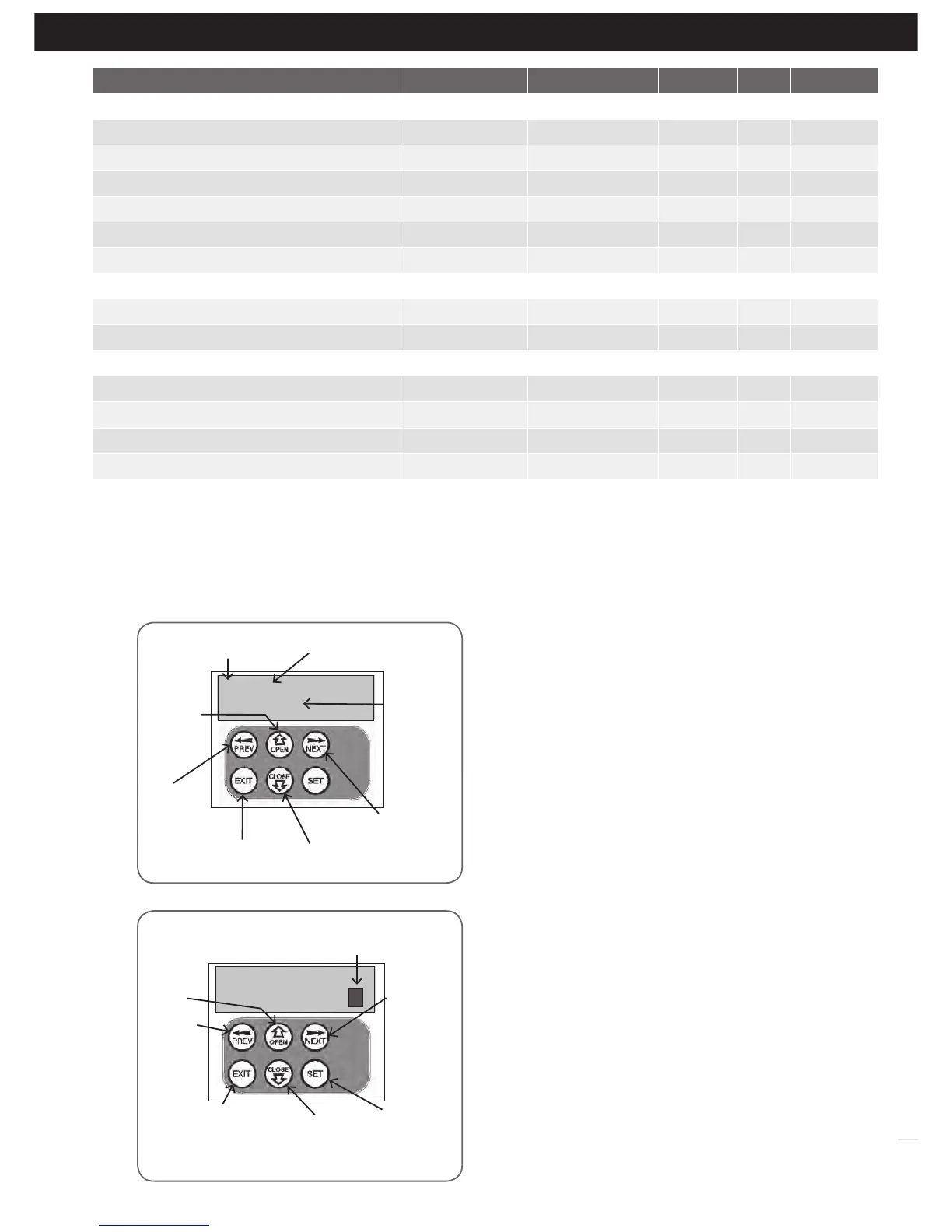

Fig B.1
Fig B.2
B - Viewing and Editing Parameters
Appendix
Parameter name
Parameter
value
Displays next
parameter
in list
Parameter number
in list
Enter Edit
Mode
Displays
previous
parameter
in list
Returns back
to menu
Enter Edit
Mode
View Mode (No cursor)
Edit Mode (Cursor shown)
Increase
value
Displays
“Load
Default?”
screen,
giving
option of
loading
default
value
Exits back to
View Mode
with no
changes made
Decrease
value
Saves new
value and
exits back to
View Mode
Displays
“Load
Default?”
screen,
giving option
of loading
default value
Cursor shown
Parameter Min Max Default Menu Section
Menu 8 - Diagnostics
TEST INPUTS - Controls input display status Inactive 8.1 Appendix D
TEST TRANSMITTERS (TX’ERS) 8.2 Appendix D
DISPLAY HISTORY 8.3 Appendix D
MEMORY USAGE 8.4 Appendix D
SERVICE COUNTER 60,000 8.5 Appendix D
EVENT COUNTER 8.6 Appendix D
Menu 9 - Memory Tools
CLR CONTROL 9.1 Appendix E
CLR TRANSMITTERS (TX’ERS) 9.2 Appendix E
Menu 10 - Setup Travel
SETUP LIMITS 10.1 8.1
TIME TRAVELED 10.2 Appendix H
REPROFILE TRAVEL 10.3 9.5
SET PEDESTRIAN 10.4 12.1
