104
$SSHQGL[

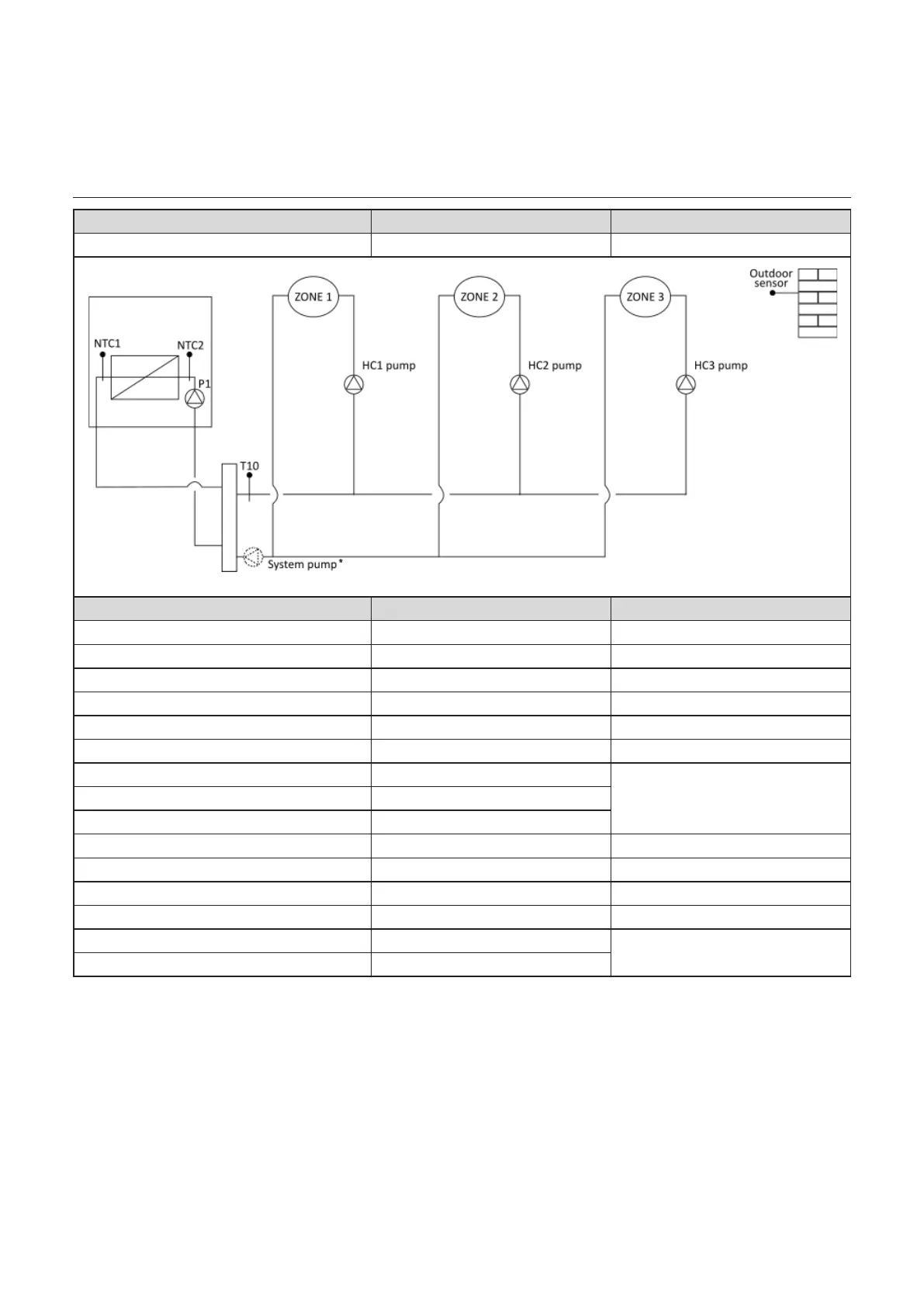

Standard schemes
Scheme Boiler group Distribution group
2 Single boiler or cascade Multiple direct zones
Name and Description ECU I/O Note
Outdoor sensor NTC4
Boiler pump (230 V) P1
Boiler pump (PWM) PWM_P1
%RLOHUÀRZVHQVRU NTC1
Boiler return sensor NTC2
T10 MTS1
HC1 pump P_Z1
Controlled with
CLIP 3 ZONE MIX.
CLIP 3 ZONE MIX needed!
HC2 pump P_Z2
HC3 pump P_Z3
System pump* MO1_HV ON/OFF Pump.
Heat request zone 1 PADIN1 or EBUS2
Heat request zone 2 PADIN2 or EBUS2
Heat request zone 3 PADIN3 or EBUS2
Alarm or sanitary pump VFR1
Optional
LPG/ Room supply Fan VFR3
*System pump: optional electrical connection. To use depending on application.
