11
Product description

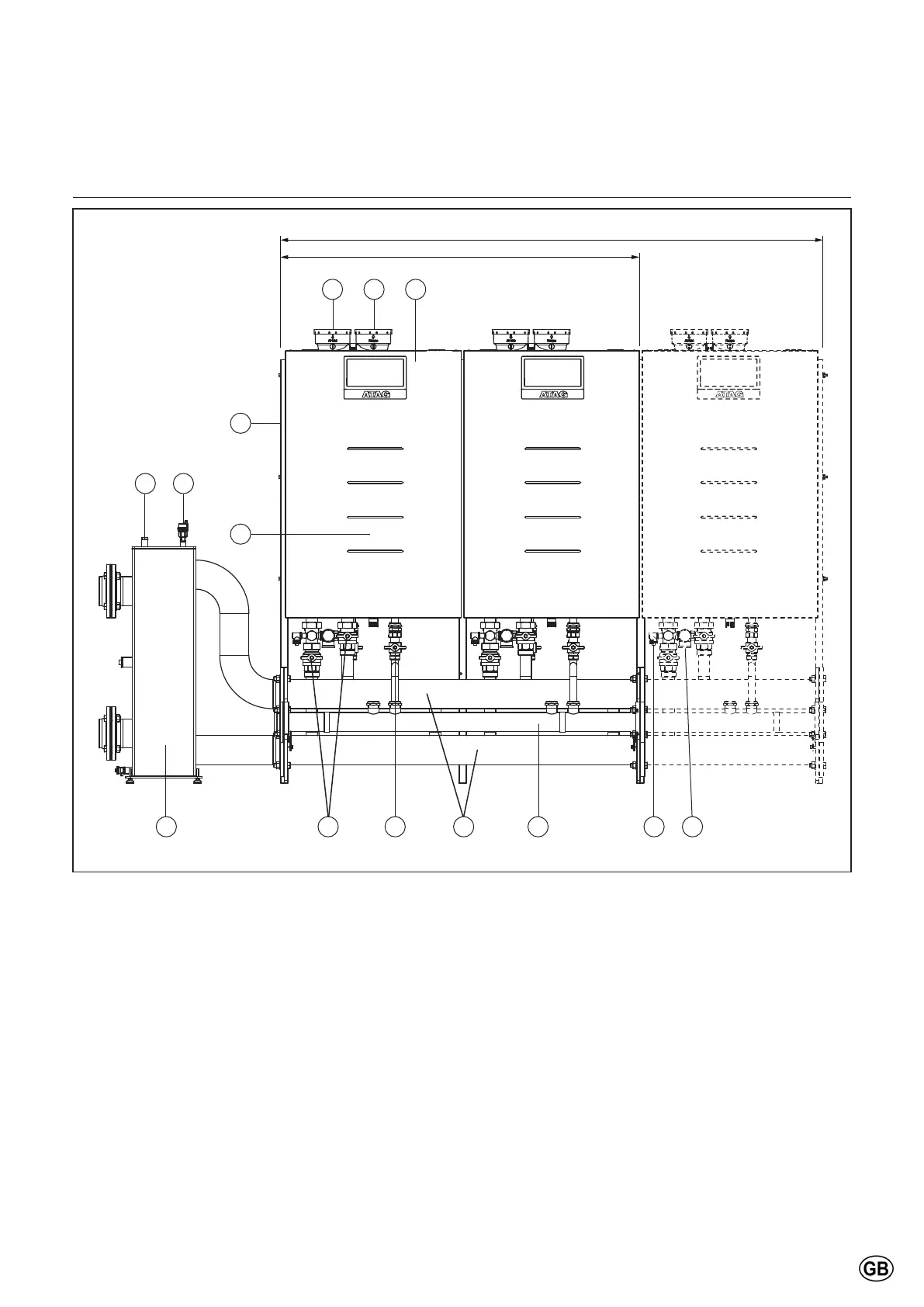

ATAG XL W Cascade
Legend:
1. Air supply
2. Flue/Air supply
3. Cascade manager
Accessories:
4. Gas isolation valve
5. Flow and return isolation valves
6. Non-return valve
7. Flow/return header
8. Gas line
9. Low loss header
10. Safety valve 3 or 6 bar
11. Drain valve
12. Automatic air vent low loss header
13. Pocket for temperature sensor T10
14. Frame
Cascade possibilities
The ATAG XL W cascade can be
mounted in 3 ways:
- Wall-mounted in line
All boilers alongside one another
on the wall
- Free-standing in line
All boilers hanging alongside one
another on a free-standing frame
- Free-standing back-to-back
All boilers hanging back-to-back
on a free-standing frame
For more information see next pages.
5 4 7 89
6
1 2 3
11
1213
14
2130
1430
10
