Atag XL75W User Manual

9
E
D
B
C1 / C2
F
G
H
I
J
gcar
AA1
M
LK
Product description

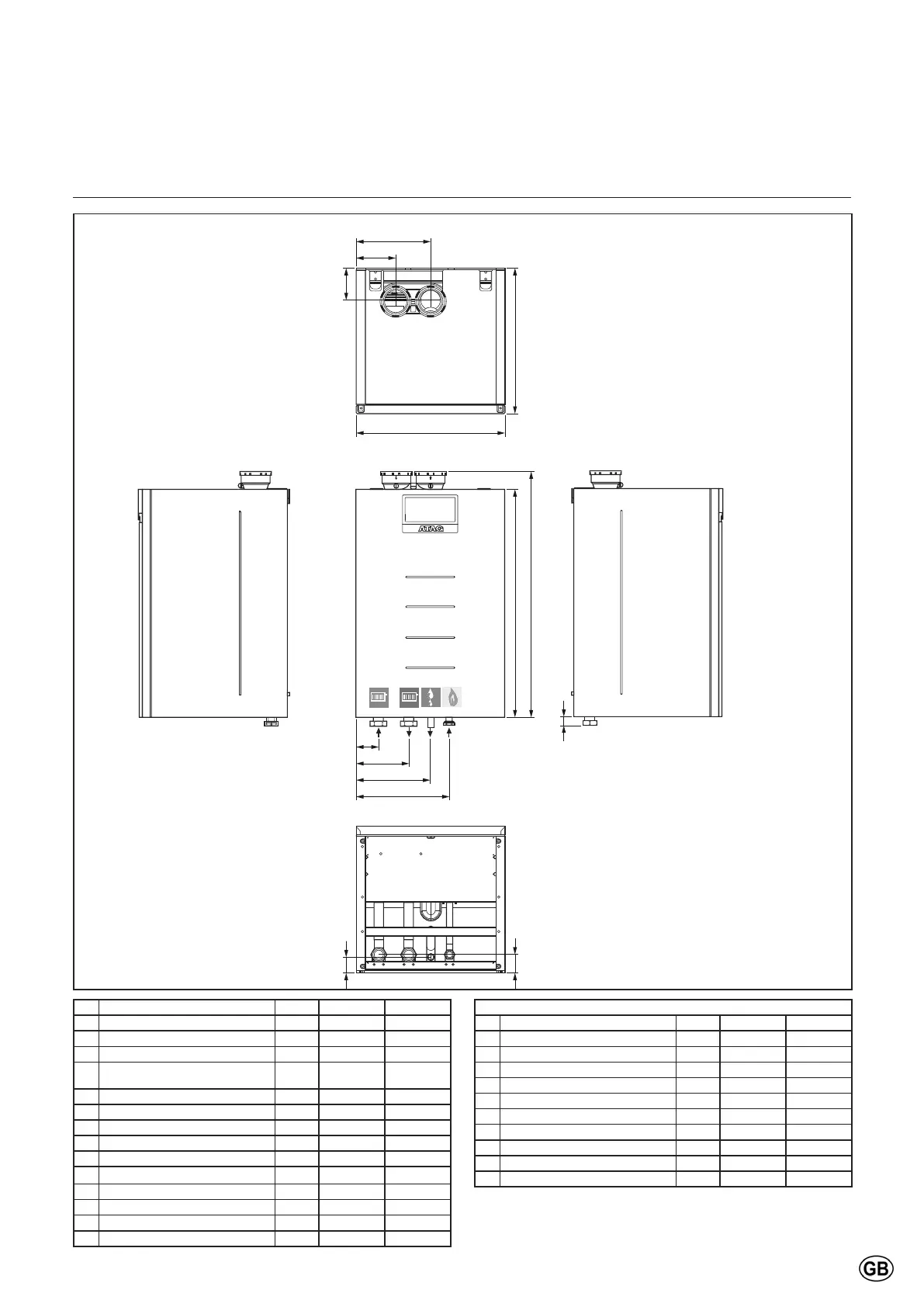

Dimensions of ATAG XL W double engine
Type ATAG XL W 125-150 175-210
A Boiler height mm 1050 1050
A1 %RLOHUKHLJKWZLWKÀXHFRQQHFWLRQ mm 1135 1135
B Boiler width mm 690 690
C1/
C2
Boiler depth mm 595 675
D Flue gas nozzle parallel mm 185 185
E Air intake parallel mm 345 345
F Flue gas nozzle mm 150 150
G Boiler return connection mm 103 103
H %RLOHUÀRZFRQQHFWLRQ mm 243 243
I Condensate connection mm
345 345
J Gas connection mm 430 430
K Condensate connection mm 60 60
L %RLOHUUHWXUQÀRZJDV mm 75 75
M %RLOHUUHWXUQÀRZJDV mm 25 25
Boiler connections
Type ATAG XL W 125-150 175-210
Flue gas nozzle concentric mm 100* -
Air supply connector concentric mm
150* -
Parallel connection mm 2x100 2x130
g Gas connection 1 1/4" 1 1/4"
Gas connection** 1" ** 1" **
c Condensate connection mm 35 35
a %RLOHUÀRZFRQQHFWLRQ 2" 2"
%RLOHUÀRZFRQQHFWLRQ 1 1/2" ** 1 1/2" **
r Boiler return connection 2" 2"
Boiler return connection** 1 1/2" ** 1 1/2" **
* with concentric adaptor (optional)
** with water/gas connection reduction kit (optional)
D
E
F
C1 / C2
B
AA1
M
G
KL
H
I
r
acg
J
