Atel V810A - 2. Getting Started; Install SIM Card; Install NiMH Battery Pack

ATEL V810 Series
V810A and V810AD Data User Manual
V6.9, July 17, 2023
5

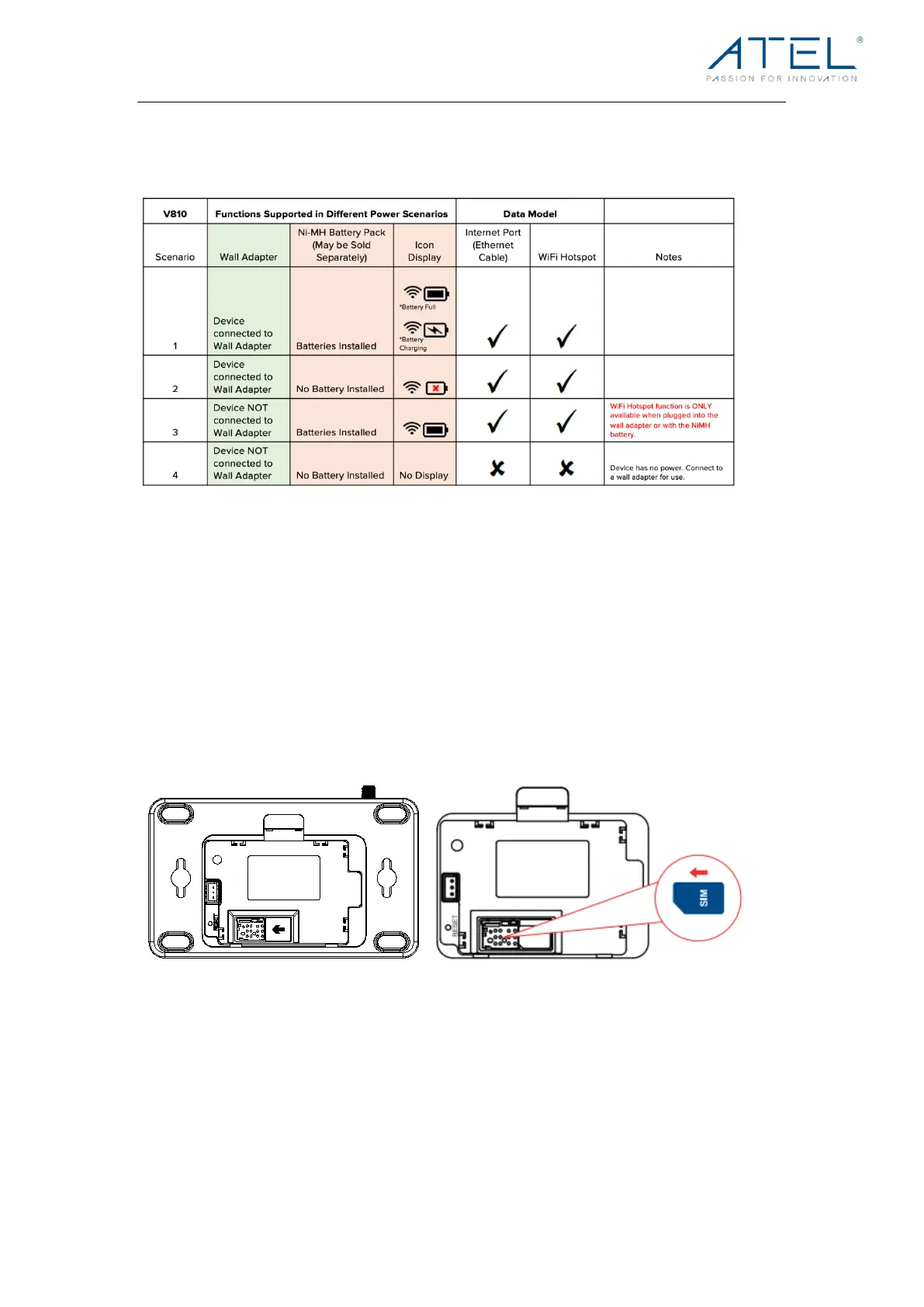

Refer to the table below for the V810A/V810AD functions supported in different power
modes.
2. Getting Started
Install SIM Card
1. Remove the V810A/V810AD back cover.
2. Install the SIM card into the spring-loaded SIM slot as the image shows. To remove
a SIM, press the edge of the SIM inward and the SIM will pop outward from the
slot.
Install the NiMH Battery Pack
1. Remove the battery cover.
2. Properly align and install the NiMH battery (with three pin sockets).
Make sure to align the pin sockets correctly.
3. Put the NiMH battery in place as shown below.
