2 General description
2.1 Introduction
GA 15 up to GA 22 are single-stage, oil-injected screw compressors driven by an electric motor. The
compressors are air-cooled.
The compressors are controlled by an Elektronikon
®
controller.
GA Pack
GA Pack are enclosed in a sound-insulated bodywork. The compressors are controlled by an Elektronikon®
controller (standard version) or by an Elektronikon® Graphic controller (optional). The controller module is
fitted to the door on the front side. An electric cabinet comprising the motor starter is located behind this
panel.
Floor-mounted compressors are directly installed on the floor:

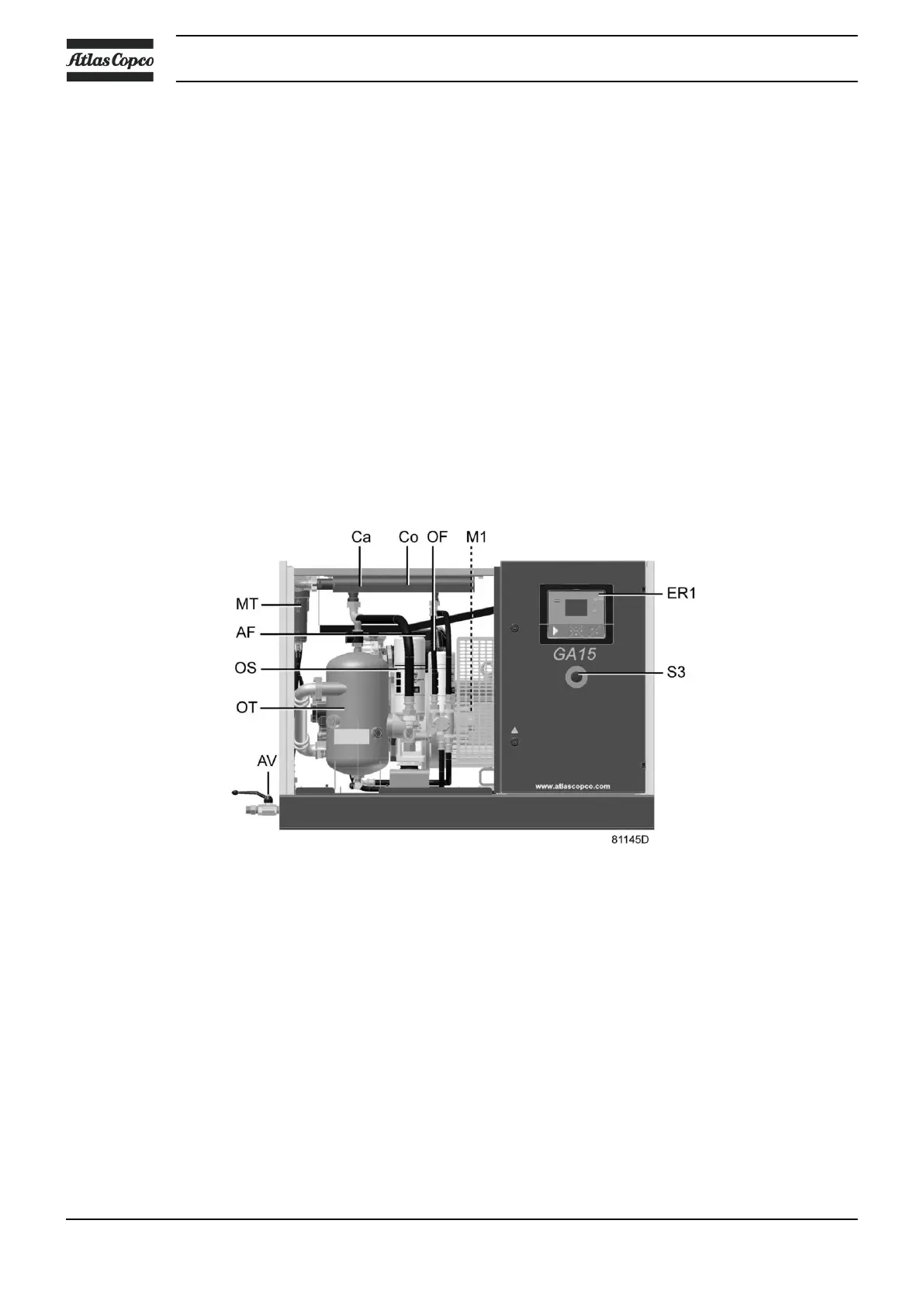

Front view, GA 15 up to GA 22 Floor-mounted Pack
Tank-mounted compressors are mounted on a large air receiver (AR) of 500 l (125 gal, 4.5 cu.ft):
Instruction book
12 2920 7083 31
