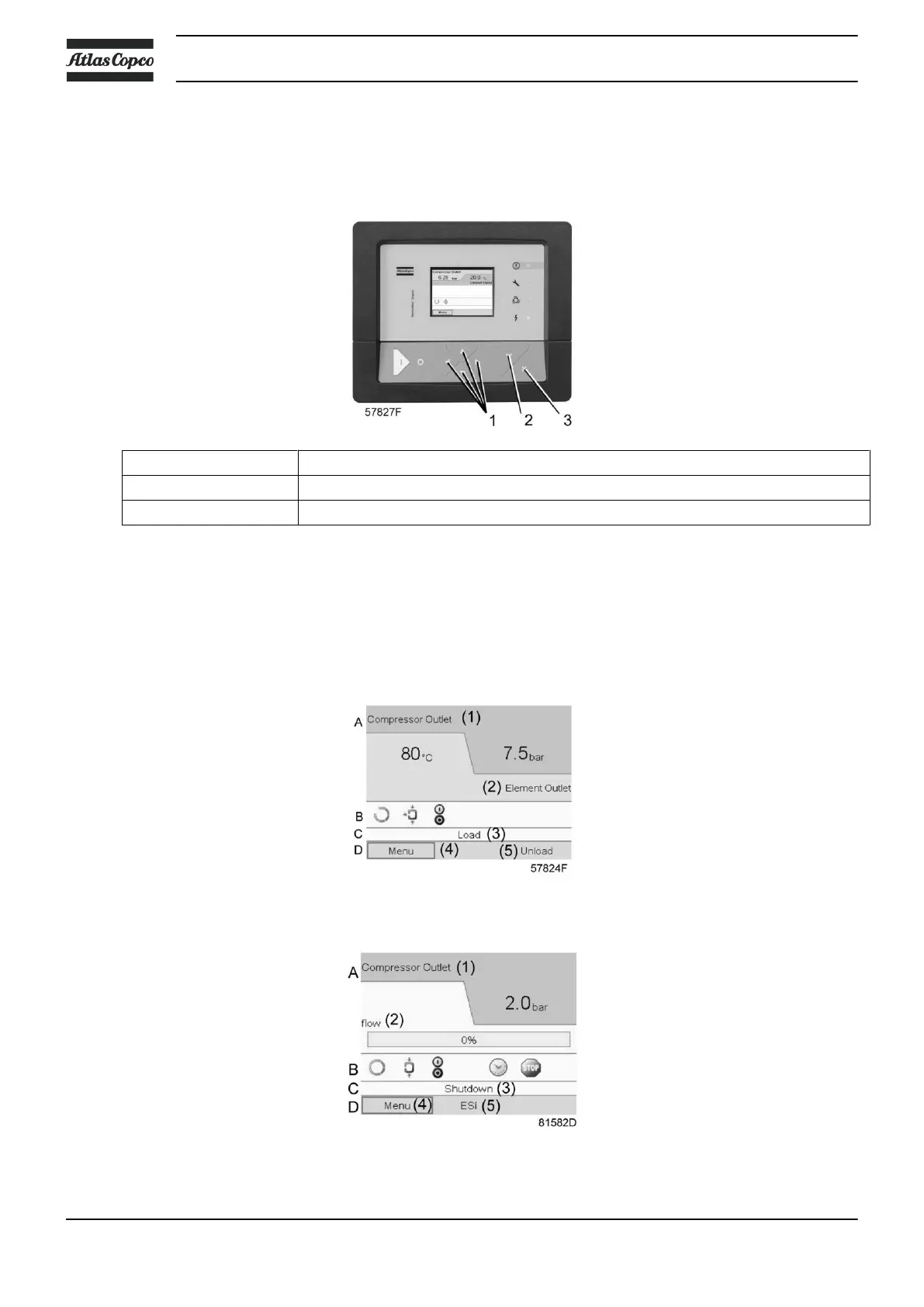

4.4 Main screen
Control panel
(1) Scroll keys
(2) Enter key
(3) Escape key
Function
The Main screen shows the status of the compressor operation and is the gateway to all functions implemented
in the controller.
The Main screen is shown automatically when the voltage is switched on and one of the keys is pushed. It is
switched off automatically after a few minutes when no keys are pushed.
Typical Main screen, fixed speed compressors
Typical Main screen, compressors with frequency converter
