(1) Menu
(2) Regulation

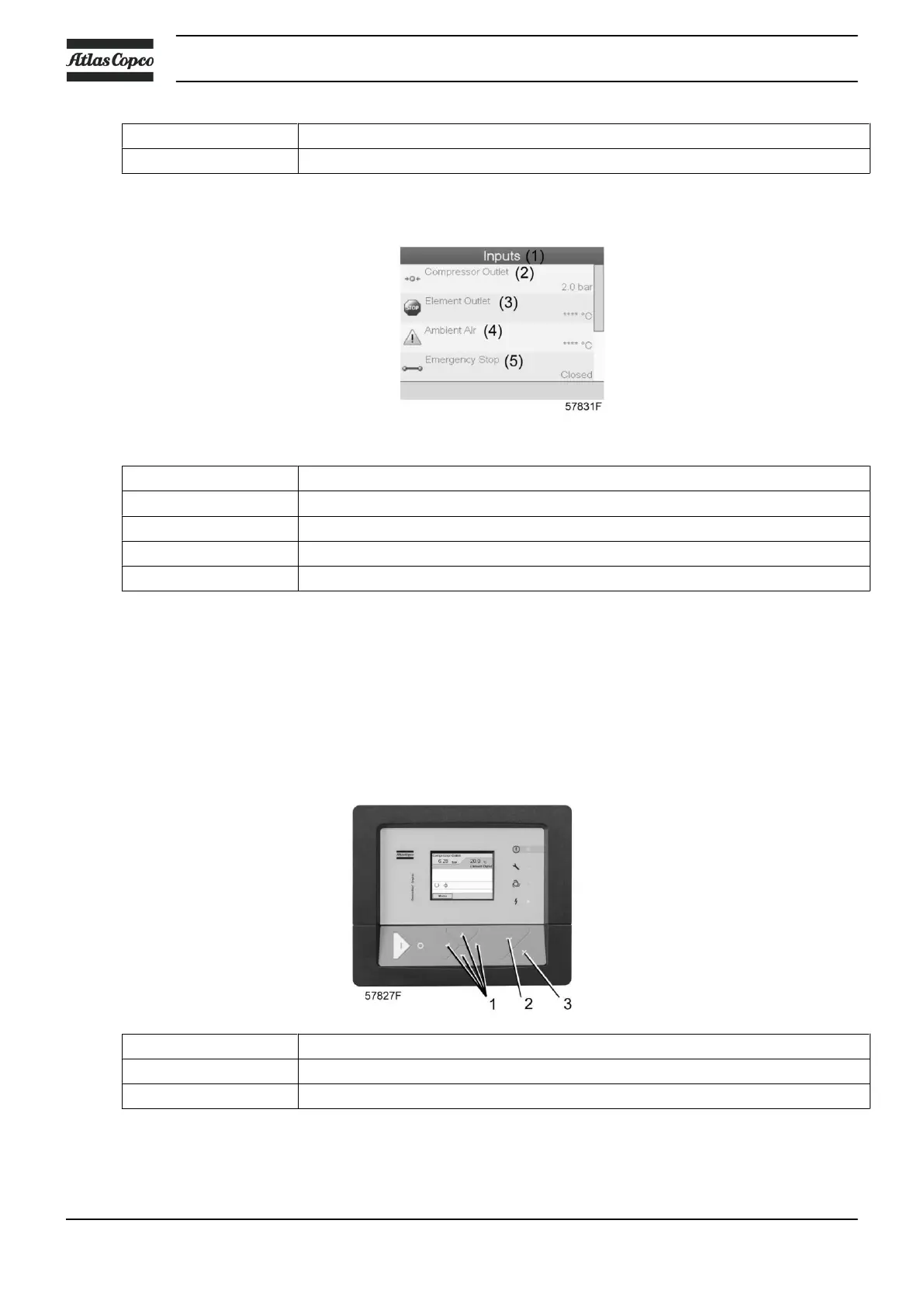

• Using the Scroll keys, move the cursor to the Inputs icon (see above, section Menu icon).
• Press the Enter key. A screen similar to the one below appears:
Text on figure
(1) Inputs
(2) Compressor outlet
(3) Element outlet
(4) Ambient air
(5) Emergency stop
• The screen shows a list of all inputs with their corresponding icons and readings.
• If an input is in warning or shutdown, the original icon is replaced by the warning or shutdown icon
respectively (i.c. the Stop icon and the Warning icon in the screen shown above).
4.7 Outputs menu
Control panel
(1) Scroll keys
(2) Enter key
(3) Escape key
Instruction book
78 2920 7083 31
