Signs / labels
WARNING Missing warnings
The name plate and the labels on the hydraulic
attachment contain important information about the
hydraulic attachment and for personal safety. A
missing warning can cause personal hazards. The
signs and labels must always be clearly legible.
► Immediately replace any defective name plates
and labels.
► Use the spare parts list to order new name plates
and labels.

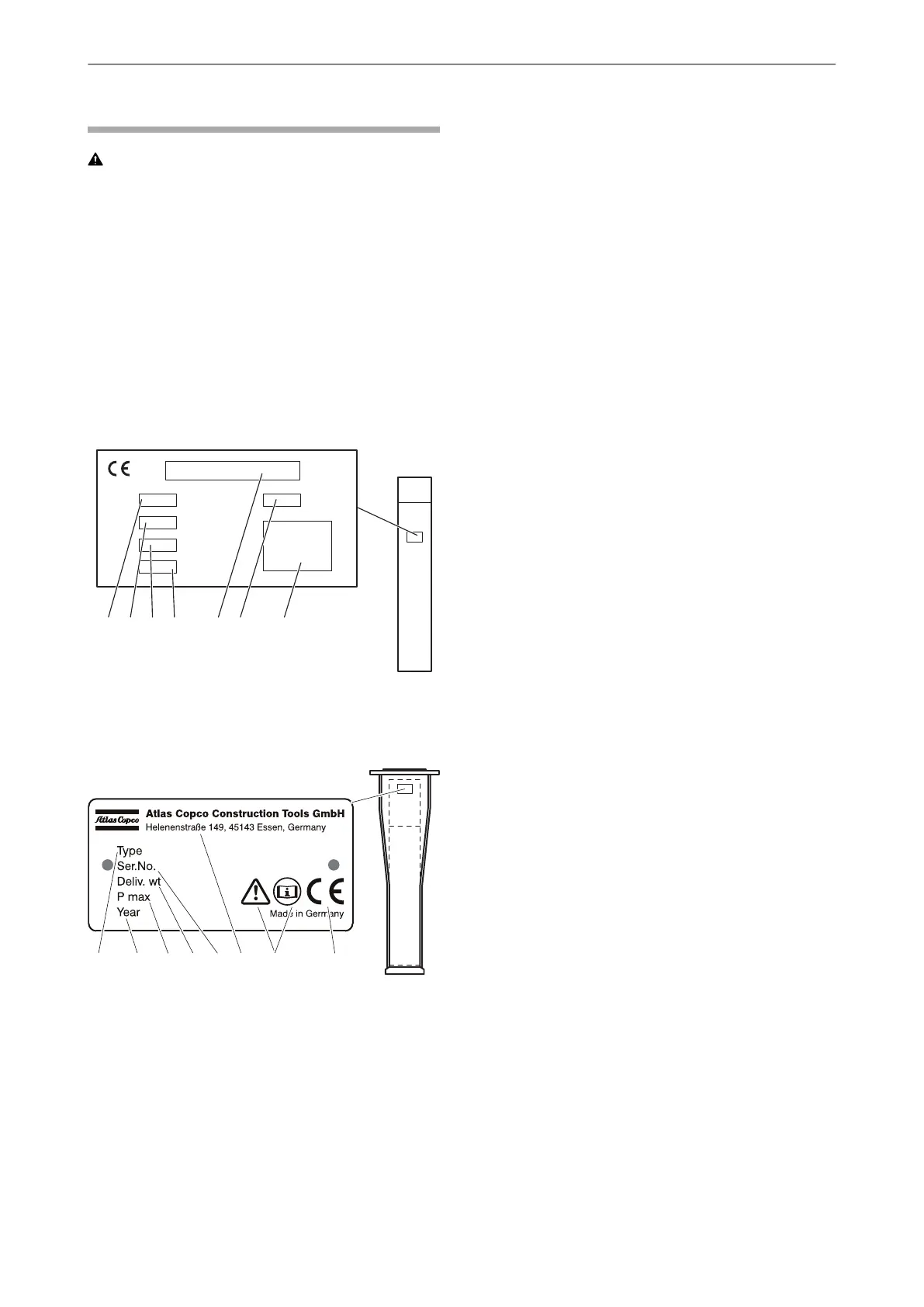

Name plate
Product group A:
Percussion unit (without breaker box)
Product group B:
Hydraulic breaker (percussion unit with breaker box)
A. Model
B. Part number
C. Max. permissible operating pressure
D. Year of manufacture of product group
E. Name and address of manufacturer
F. Serial number
G. Weight of product group
H. The warning symbol and the book symbol
indicate that the Safety and Operating
Instructions must be read prior to use of the
hydraulic attachment and in particular the
chapter on Safety.
I. The CE symbol indicates that the hydraulic
attachment was produced in conformity with
CE. You can find further information about this
in the enclosed EC Declaration of Conformity.
17© 2012 Atlas Copco Construction Tools GmbH | No. 3390 5005 01 | 2012-05-03
Original instructions
OVERVIEWHB 5800, 5800 DP, 7000, 7000 DP, 10000 DP
