HB 10000, HB 10000 DP
The following accessories can be supplied:
1 nitrogen filling device
1 test pressure gauge ¼", 0-25 bar, test category 1.6
1 nitrogen bottle
1 adapter, country-specific
To enable the following inspection and maintenance
activities to be carried out, the equipment referred
to above has to be directly available at the location
of use at all times.
Checking the pressure in the piston
accumulator
Check the gas pressure in the piston accumulator if
the hydraulic breaker does not work. Do not top up
the piston accumulator unless the gas pressure is
equal to or less than the minimum gas pressure.
Check the pressure in the piston accumulator when
the hydraulic breaker is at operating temperature
(60-70 °C).
♦
Lay down the hydraulic breaker.
Do not apply pressure to the working tool.
♦

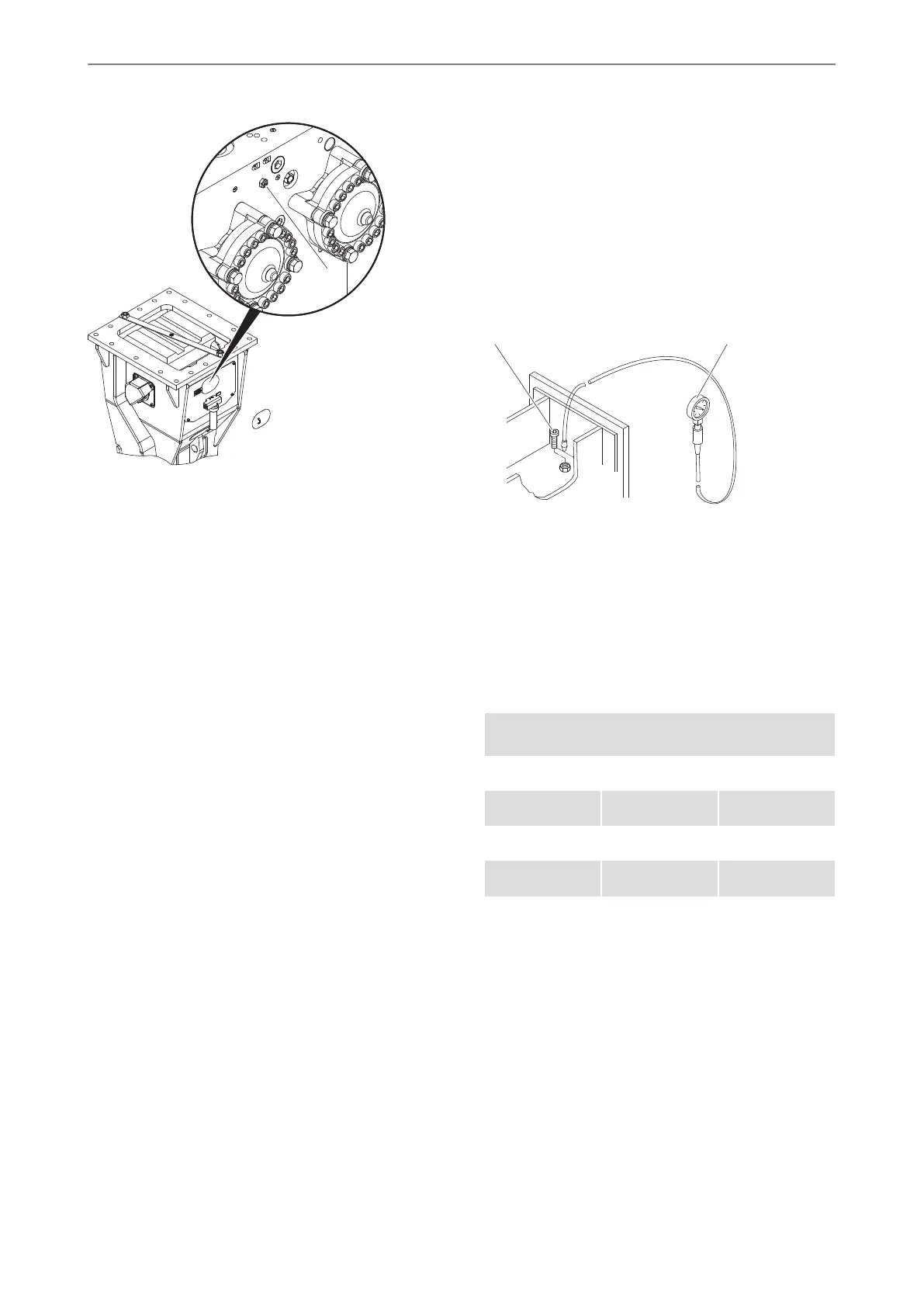

Remove the threaded plug (A) from the filling valve
»G«.
♦
Push the hose end of the test pressure gauge (B)
into the filling valve and note the pressure.
♦
If the value measured is below the required gas
pressure add nitrogen into the piston accumulator.
The required pressure in the piston accumulator is:
with an operating temperature 60-70 °C and
without exerting pressure!
Required gas
pressure
Minimum gas
pressure
Type
12.5 bar9.4 barHB 5800,
HB 5800 DP
11.5 bar9.0 barHB 7000,
HB 7000 DP
11.1 bar9.0 barHB 10000,
HB 10000 DP
51© 2012 Atlas Copco Construction Tools GmbH | No. 3390 5005 01 | 2012-05-03
Original instructions
MAINTENANCEHB 5800, 5800 DP, 7000, 7000 DP, 10000 DP
