Atlas Copco HB Series User Manual

Installation
♦
Place the hydraulic breaker on timber support
blocks.
NOTICE The working tool may break
There is an increased risk of the working tool
breaking if it has not been stored in frostfree
conditions.
► Store the working tool in a frostfree environment
for one day before installing it.
or
► Heat up the working tool for several hours, e.g.
with a heating blanket, until it has warmed up
thoroughly.

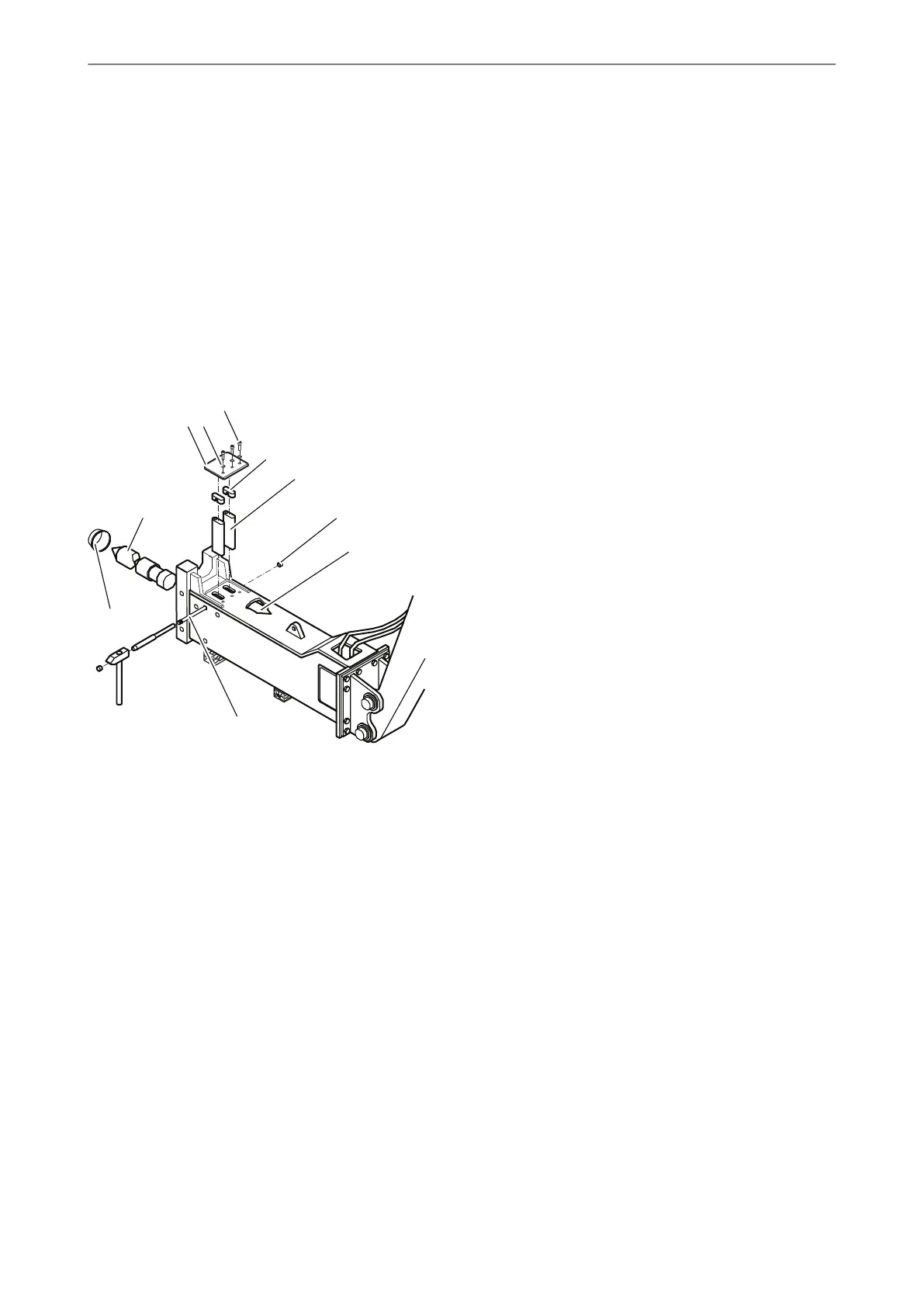

A
X
Y
C
D
E
F
G
H
Z
Wiper installed
(only hydraulic breakers with DustProtector):
When installing the working tool for the first time after
it has been delivered, you first have to remove the
wiper (H) from the DustProtector.
♦
Remove the wiper (H) from the DustProtector (see
chapter DustProtector/Removal).
NOTICE Damage to the wiper
If the wiper is not removed it will bend back when
installing the working tool. The wiper can then no
longer be used.
► Remove the wiper before installing the working
tool.
Retainer bar installed:
When installing the working tool for the first time after
it has been delivered, you must remove the protective
cap and the retainer bars.
♦
Remove the protective cap from the aperture for
the working tool.
♦
Store the protective cap for future use.
♦
Remove the screws (Z), washers (Y), plate (X),
and plugs (E).
♦
Use a break pin punch and a hammer to drive the
bolt (G) for the retainer bars (D) out of the lower
breaker part (F) from the side.
♦
Remove the two plugs (C) from the slotted holes
for the retainer bars (D).
♦
Screw one screw (M 12) into the bore on the front
side of the retainer bars.
♦
Pull out the retainer bars by the screw.
Retainer bar and wiper removed:
If the retainer bars and the wiper (only on hydraulic
breakers with DustProtector) have been removed,
proceed as follows:
♦
Clean the insertion area of the working tool (A).
♦
Grease the insertion area of the working tool (A)
with chisel paste.
♦
Grease both retainer bars (D) with chisel paste.
♦
Install the working tool (A).
♦
Put the retainer bars (D) in place.
♦
Turn the working tool (A) until the retainer bars (D)
slide into place in the slotted holes of the lower
breaker part (F).
♦
Remove the screw from the retainer bars (D).
♦
Install the sealing plugs (C).
♦
Drive the bolt (G) into place using a break pin
punch and a hammer.
♦
Install the plate (X), washers (Y), screws (Z), and
the plugs (E).
♦
If the hydraulic breaker is a DustProtector type,
install the wiper (H) (see chapter
DustProtector/Installing).
© 2012 Atlas Copco Construction Tools GmbH | No. 3390 5005 01 | 2012-05-03
Original instructions
30
HB 5800, 5800 DP, 7000, 7000 DP, 10000 DPINSTALLATION
