Atlas Copco HB Series User Manual

TRANSPORT
WARNING Hoist tipping over / hydraulic
attachment falling
The hydraulic attachment is heavy. The hoist/lifting
equipment and/or hydraulic attachment tipping over
or falling may cause serious injury and material
damage.
► Only transport the hydraulic attachment with lifting
equipment with the right load-bearing capacity for
the weight of the hydraulic attachment.
► Only lift and secure the hydraulic attachment with
lifting gear (ropes, chains, shackles etc.) with the
right load-bearing capacity for the weight to be
lifted.
► Make sure that there is nobody near or under the
suspended hydraulic attachment.
WARNING Hydraulic breaker falling
The lifting eye may fail and cause the hydraulic
breaker to fall. This may cause serious injury and
material damage.
► Check the lifting eye before you lift the hydraulic
breaker. Never lift the hydraulic breaker with the
lifting eye if:
● the checkpoints (A) are worn and not protruding
anymore
or
the checkpoints (B) are worn and not recessed
anymore.
A
B
● the lifting eye is bent.
● you detect cracks in the lifting eye or the weld
seam.
► Contact the Atlas Copco Customer Center/Dealer
in your area if the lifting eye is worn in any way.

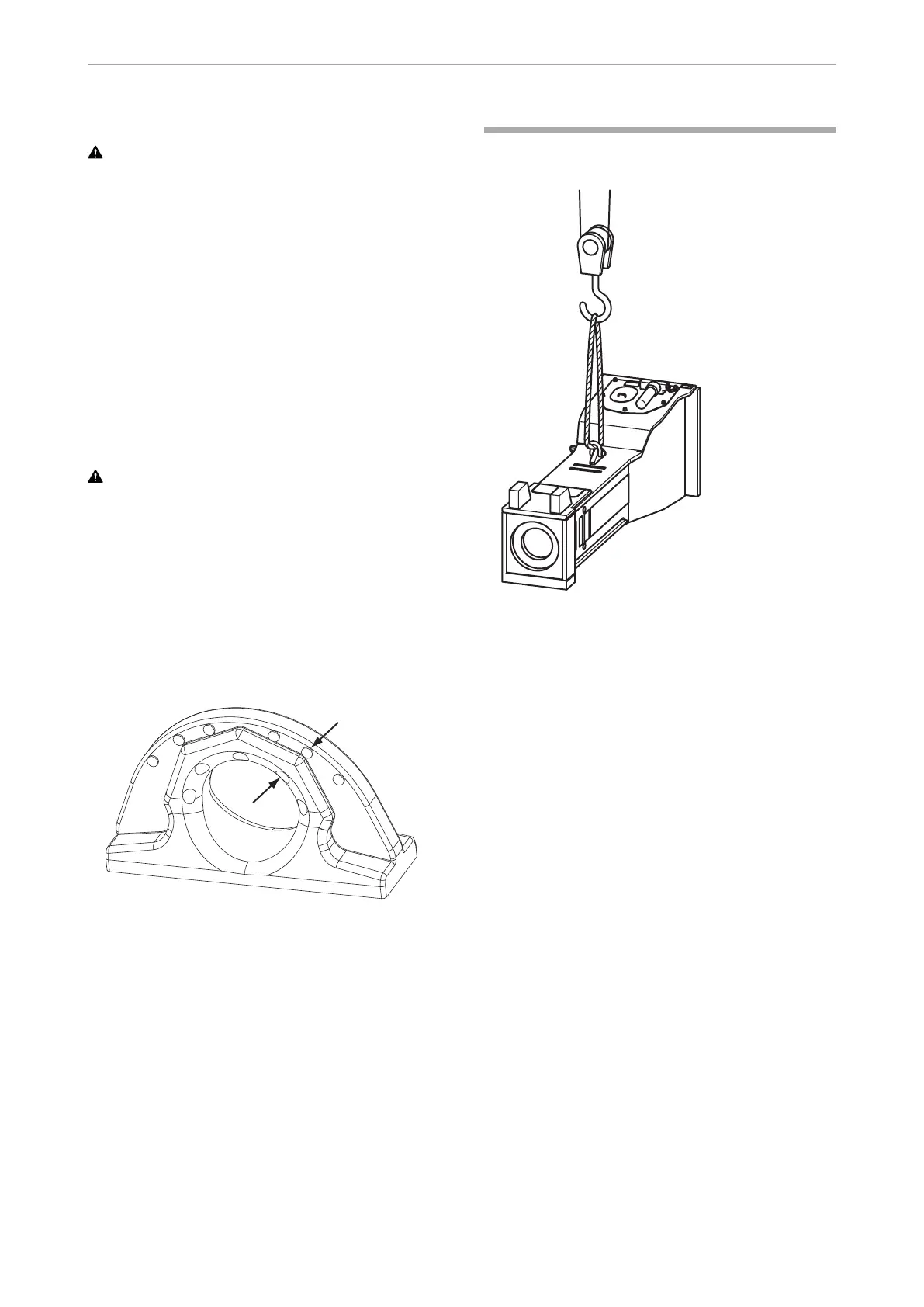

Transport using a crane
♦
Secure the hydraulic attachment with ropes or
chains as shown in the following illustration.
♦
Slowly lift the hydraulic attachment.
♦
Place the hydraulic attachment on timber support
blocks.
© 2012 Atlas Copco Construction Tools GmbH | No. 3390 5005 01 | 2012-05-03
Original instructions
20
HB 5800, 5800 DP, 7000, 7000 DP, 10000 DPTRANSPORT
