Atlas Copco HB Series User Manual

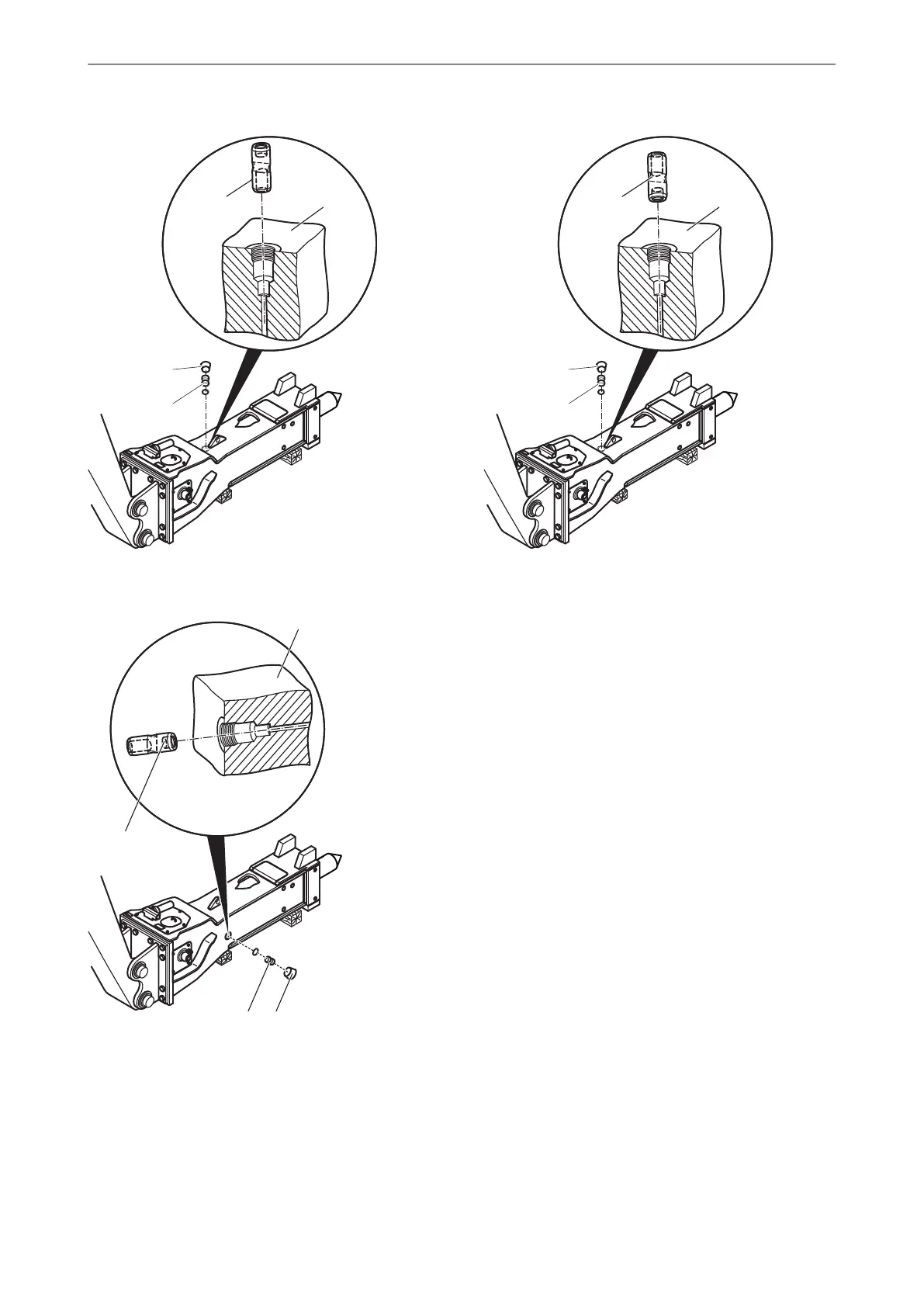

“AutoStop” integration setting
HB 7000/DP
A
C
B
D
“AutoStart” integration setting
HB 5800/DP, HB 10000/DP
D
A
BC
“AutoStart” integration setting
HB 7000/DP
A
C
B
D
♦
Remove the plug (B) from the breaker box.
♦
Remove the plug (C). It is located in the cylinder
behind plug (B).
♦
Screw a screw (M 10) into the valve piston (D).
♦
Pull the valve piston (D) by its screw from the bore
in cylinder (A).
♦
Remove the screw from the valve piston (D) and
install it again the other way around.
♦
Screw in the plug (C) and tighten it to the required
tightening torque (see chapter Bolt connections /
Tightening torques).
♦
Install the plug (B) in the breaker box.
39© 2012 Atlas Copco Construction Tools GmbH | No. 3390 5005 01 | 2012-05-03
Original instructions
OPERATIONHB 5800, 5800 DP, 7000, 7000 DP, 10000 DP
