HEIGHT ADJUSTMENT (WITH
ADJUSTABLE TOWBAR
)
For specific instruction see below!

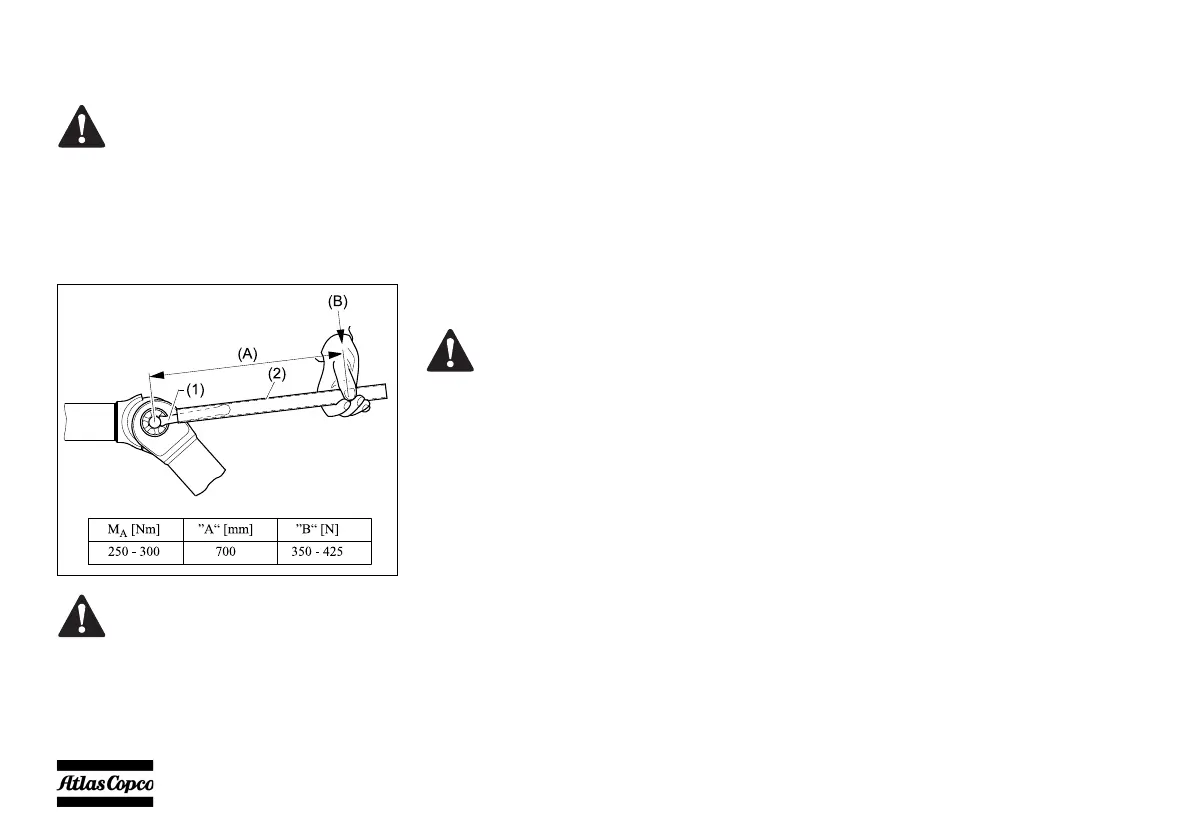

• Release locking nut (1) with support
tools (Extension tube 2).
• Adjust required height of the towbar.
• Tighten locking nut (2) by hand first.
• Secondly tighten locking nut (2) with a
tightening torque corresponding to
table. With an extension tube (2) (”A“
corresponding to table) and handforce
(”B“ corresponding to table) easy
tightening is possible.
• Fix locking nut (1).
• Height adjustment should be
undertaken on levelled ground and in
coupled condition.
• When readjusting, make sure that the
front point of the towbar is horizontal to
the coupling point.
• Before starting a trip, ensure that the
adjustment shaft is secure, so that the
stability and safety is guaranteed while
driving. If necessary tighten the locking
nut (2) corresponding to table.
Before towing the compressor,
make sure that the joints of the
towbar are secured with
maximum strength without
damaging the towbar. Be sure
that there is no clearance
between the teeth of the joints.
Height of the towbar can be
adjusted from 470mm to 875mm
depending on towing vehicle.
