Atlas Copco XAHS 186 Cud PNE

- 51 -
M
AIN PARTS
CLEANING THE DUST TRAP
To remove dust from the dust trap pinch
the vacuator valve (6) several times.
REPLACING THE FILTER ELEMENT
AND THE SAFETY CARTRIDGE
The instructions apply to one air filter and
should be repeated for both air filters
engine and air filters compressor.
1. Release the snap clips (1) and remove
the dust trap cover (2). Clean the inside
of the cover.
2. Withdraw the filter element (4) and
safety cartridge (3) from the housing
(5).
Discard the filter element when
damaged.
A dirty safety cartridge (3) is an
indication of a malfunctioning filter
element.
3. Reassemble in reverse order of
dismantling.
4. Inspect and tighten all air intake
connections.

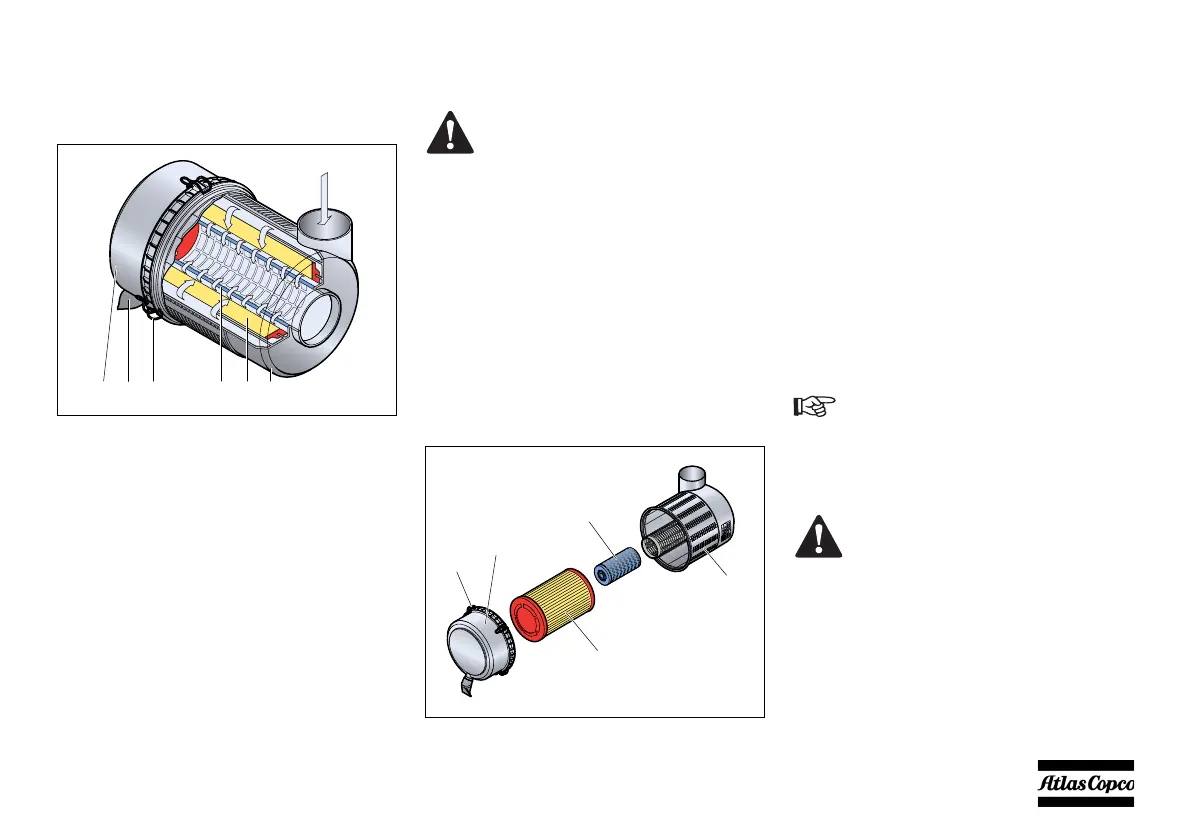

1. Snap clips (4x) 4. Filter element
2. Dust trap cover 5. Filter housing
3. Safety cartridge 6. Vacuator valve
AIR FILTERS ENGINE / COMPRESSOR
(6) (1)(2) (3) (4) (5)
The Atlas Copco air filters are
specially designed for the
application. The use of non-
genuine air filters may lead to
severe damage of the engine
and/or compressor elements.
(1)
(2)
(3)
(4)
(5)
Replace the filter element and
the safety cartridge at the same
time. New elements should be
inspected for tears and
punctures before installation.
The safety cartridge cannot be
cleaned.
