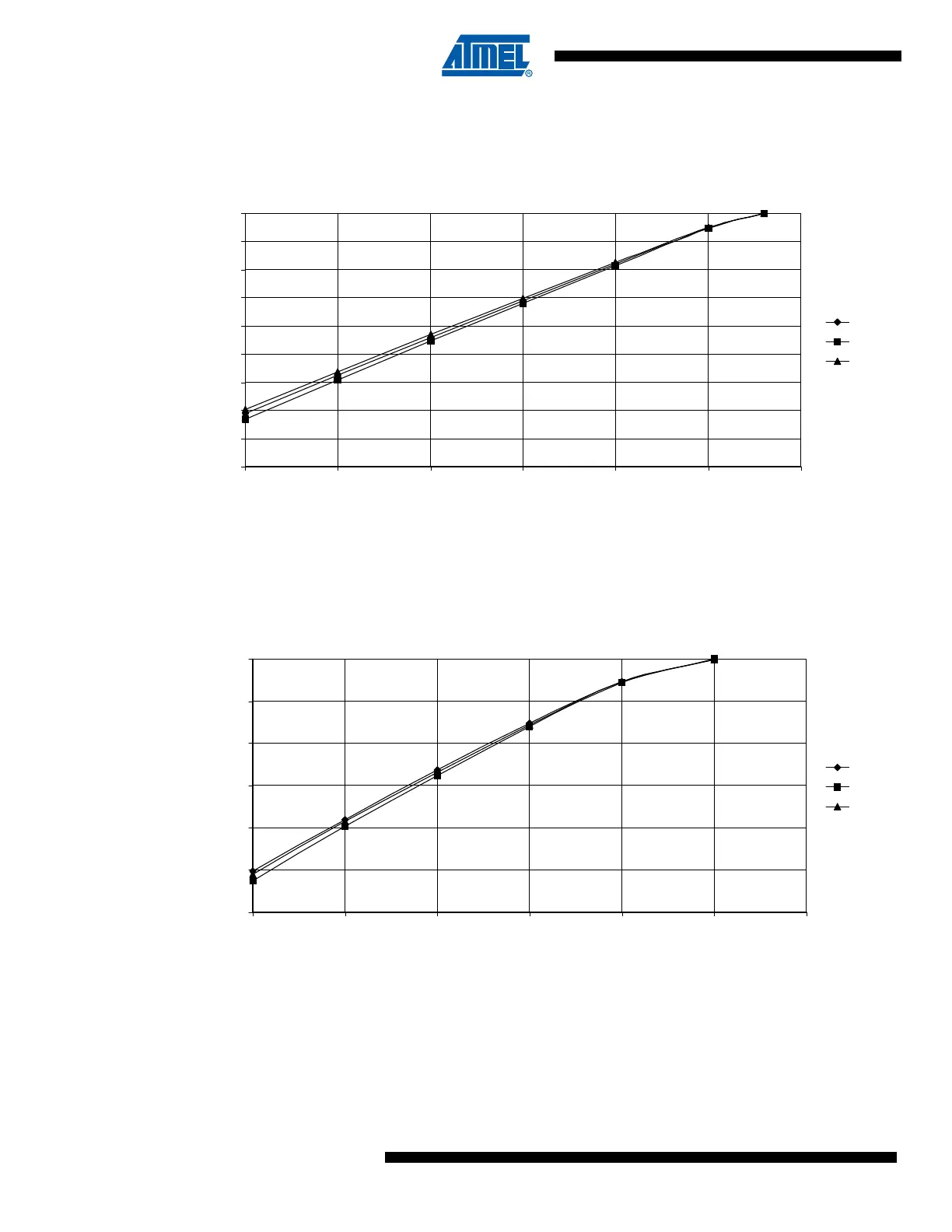

Figure 28-16. I/O Pin Pull-up Resistor Current vs. Input Voltage (Vcc = 2.7V)
Figure 28-17. Reset Pull-up Resistor Current vs. Reset Pin Voltage (Vcc = 5V)
I/O PIN PULL-UP RESISTOR CURRENT vs. INPUT VOLTAGE (Vcc = 2.7V)
-90
-80
-70
-60
-50
-40
-30
-20
-10
0
0 0.5 1 1.5 2 2.5 3
V
IO
(V)
I
IO
(uA)
85°C
25°C
-40°C
RESET PULL-UP RESISTOR CURRENT vs. RESET PIN VOLTAGE (Vcc = 5V)
-120
-100
-80
-60
-40
-20
0
0123456
V
RESET
(V)
I
RESET
(uA)
85°C
25°C
-40°C
