28.2 Idle Supply Current

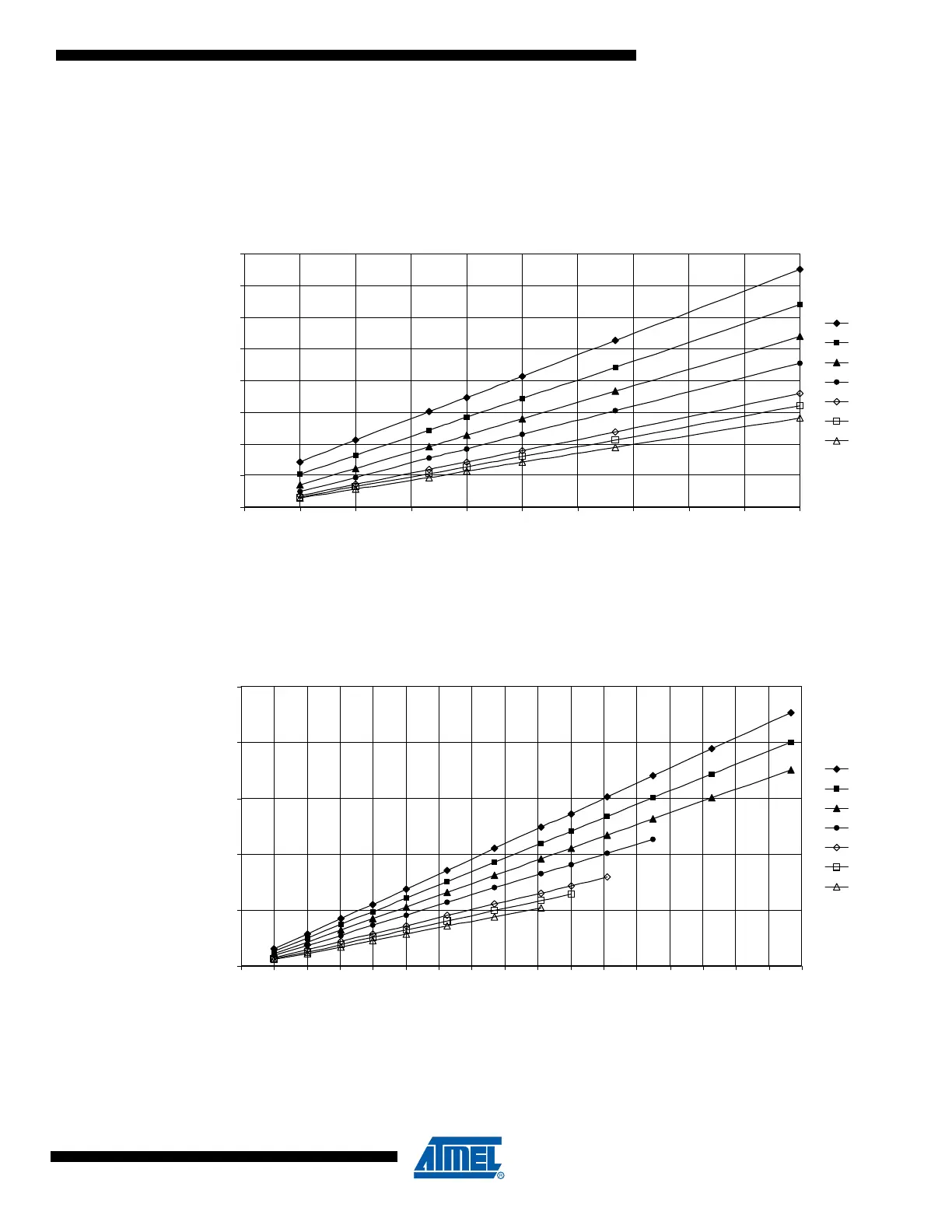

Figure 28-6. Idle Supply Current vs. Frequency (0.1 - 1.0 MHz)
Figure 28-7. Idle Supply Current vs. Frequency (1 - 16 MHz)
IDLE SUPPLY CURRENT vs. FREQUENCY (25°C, 0.1 - 1 MHz)
0
0.2
0.4
0.6
0.8
1
1.2
1.4
1.6
0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1
Frequency (MHz)
Icc (mA)
5.50V
5.00V
4.50V
4.00V
3.30V
3.00V
2.70V
IDLE SUPPLY CURRENT vs. FREQUENCY (25°C, 1 - 16 MHz)
0
5
10
15
20
25
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
Frequency (MHz)
Icc (mA)
5.50V
5.00V
4.50V
4.00V
3.30V
3.00V
2.70V
