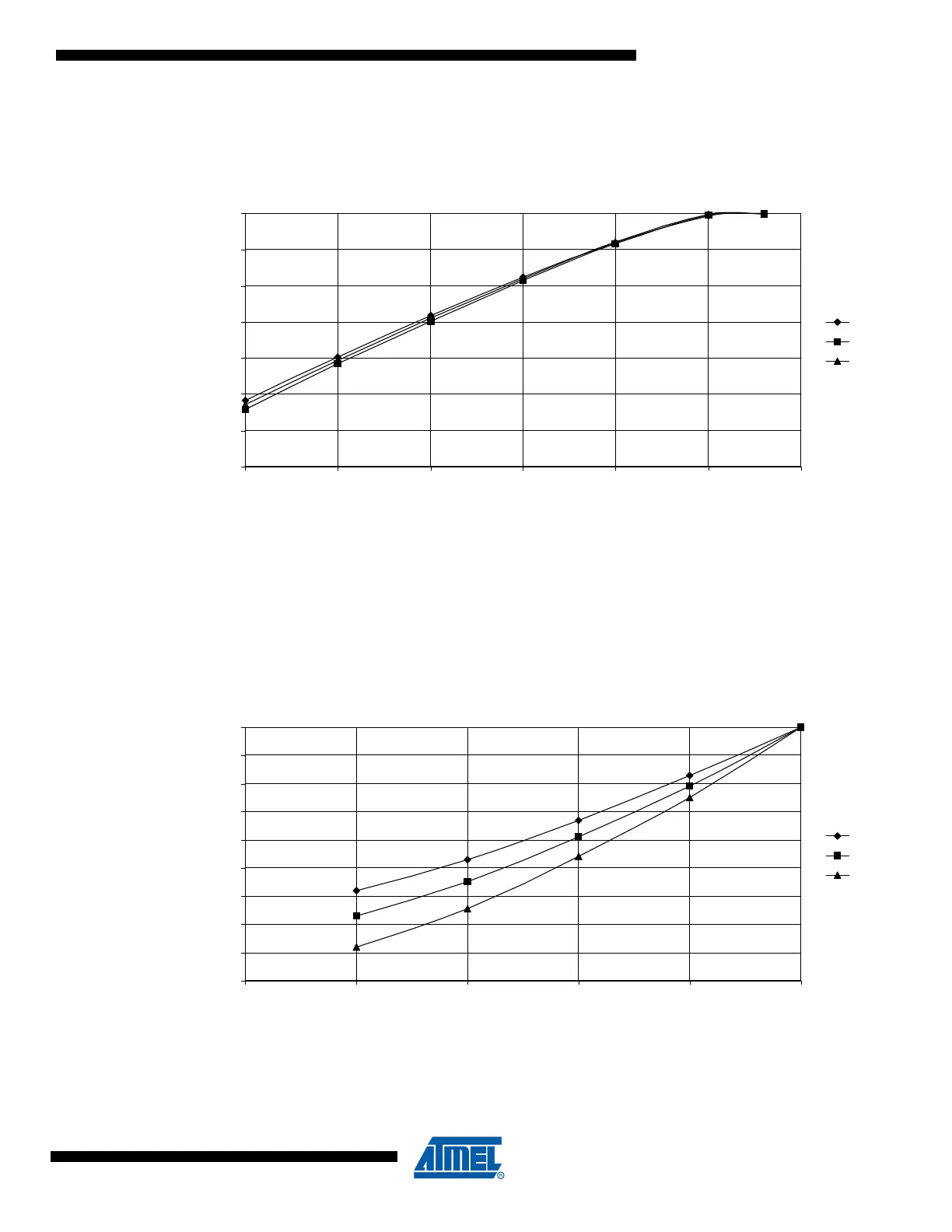

Figure 28-18. Reset Pull-up Resistor Current vs. Reset Pin Voltage (Vcc = 2.7V)
28.7 Pin Driver Strength
Figure 28-19. I/O Pin Source Current vs. Output Voltage (Vcc = 5V)
RESET PULL-UP RESISTOR CURRENT vs. RESET PIN VOLTAGE (Vcc = 2.7V)
-70
-60
-50
-40
-30
-20
-10
0
0 0.5 1 1.5 2 2.5 3
V
RESET
(V)
I
RESET
(uA)
85°C
25°C
-40°C
I/O PIN SOURCE CURRENT vs. OUTPUT VOLTAGE (Vcc = 5V)
-90
-80
-70
-60
-50
-40
-30
-20
-10
0
2.5 3 3.5 4 4.5 5
V
OH
(V)
I
OH
(mA)
85°C
25°C
-40°C
