AT90CAN32/64/128
Figure 28-12. Power-down Supply Current vs. Vcc (Watchdog Timer Enabled)
28.4 Power-save Supply Current
Figure 28-13. Power-save Supply Current vs. Vcc (Watchdog Timer Disabled)

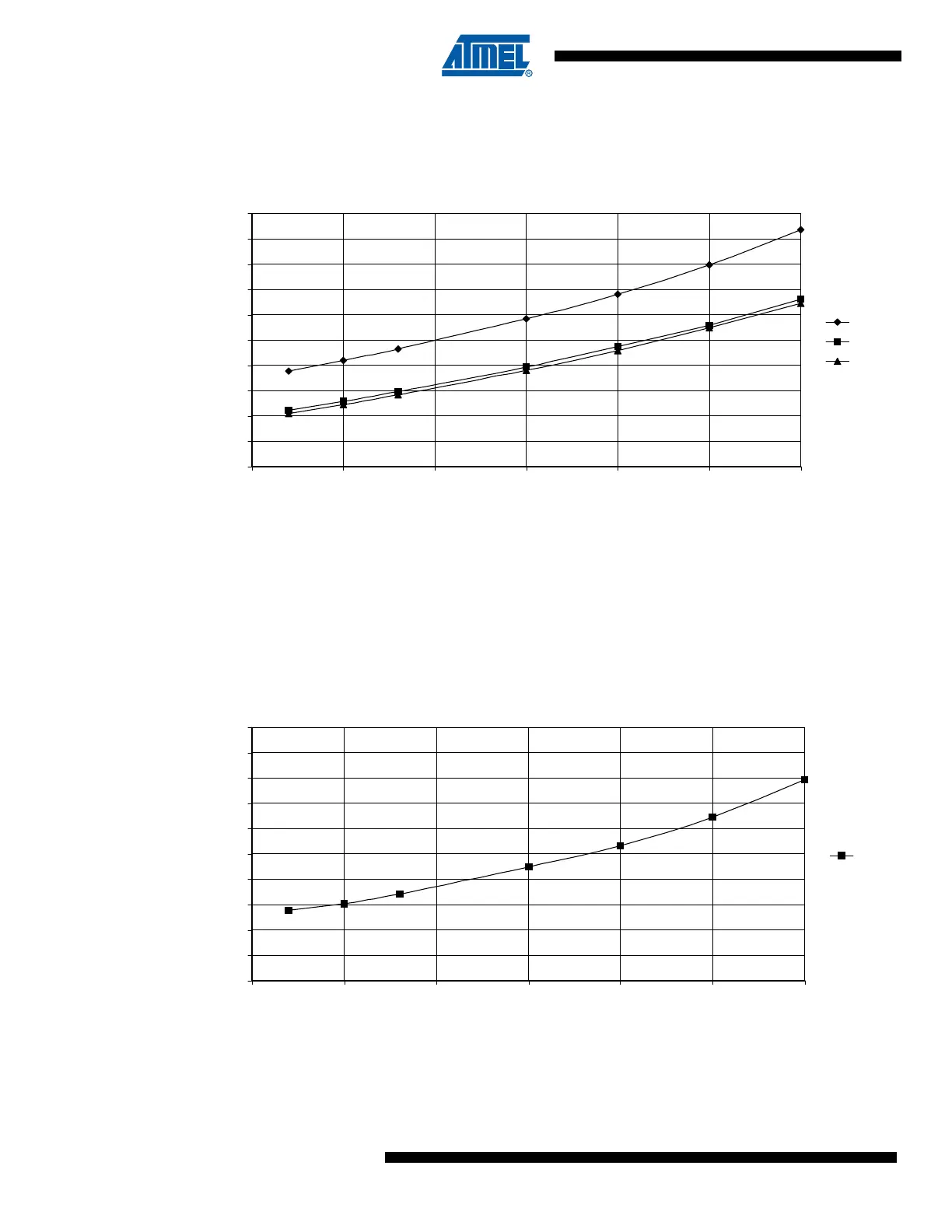

POWER-DOWN SUPPLY CURRENT vs. Vcc (Watchdog Timer Enabled)
0
2.5
5
7.5
10
12.5
15
17.5
20
22.5
25
2.5 3 3.5 4 4.5 5 5.5
Vcc (V)
Icc (uA)
85°C
25°C
-40°C
POWER-SAVE SUPPLY CURRENT vs. Vcc (Watchdog Timer Disabled)
0
2.5
5
7.5
10
12.5
15
17.5
20
22.5
25
2.5 3 3.5 4 4.5 5 5.5
Vcc (V)
Icc (uA)
25°C
