398
7679H–CAN–08/08
AT90CAN32/64/128

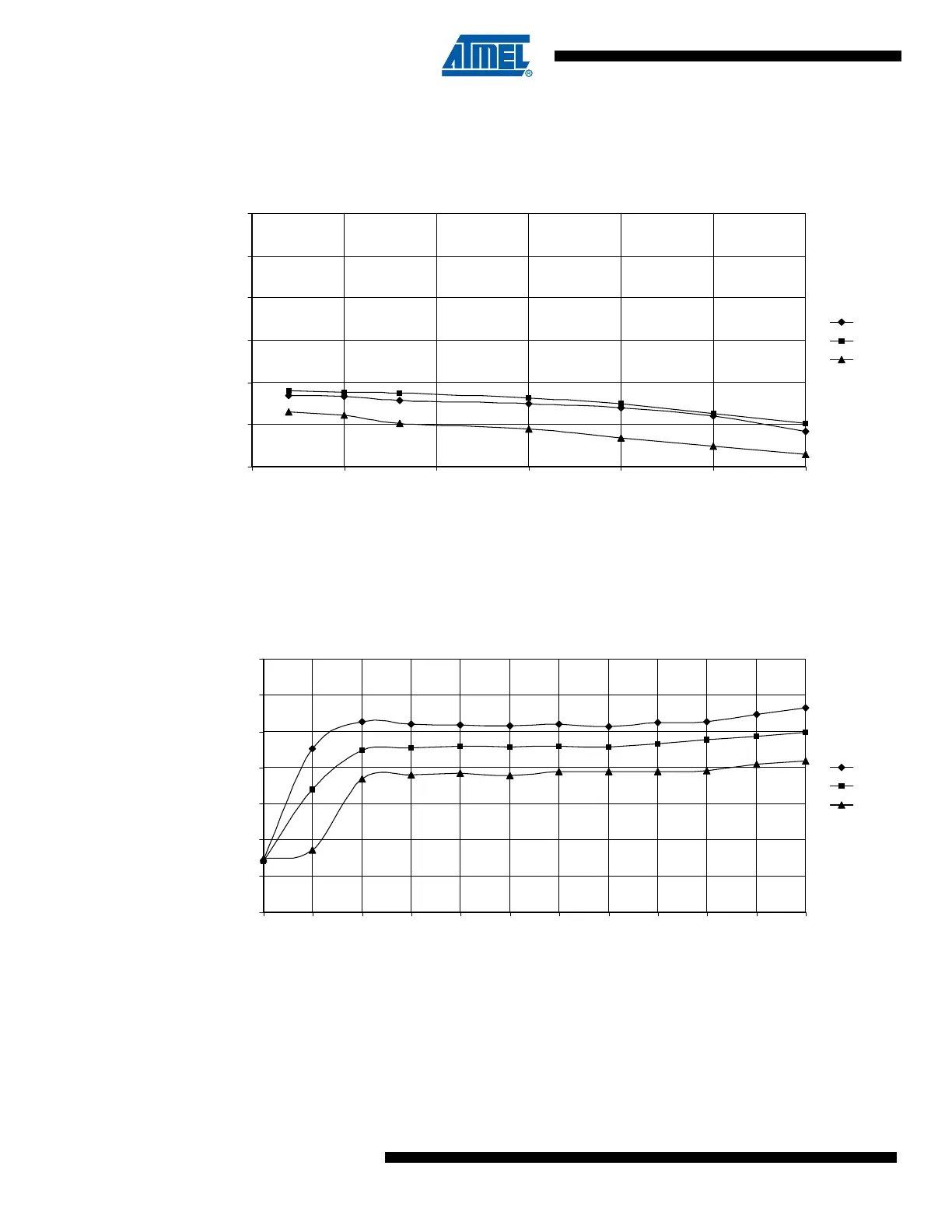

Figure 28-26. Bandgap Voltage vs. Operating Voltage
Figure 28-27. Analog Comparator Offset vs. Common Mode Voltage (Vcc = 5V)
BANDGAP VOLTAGE vs. OPERATING VOLTAGE
1.08
1.09
1.1
1.11
1.12
1.13
1.14
2.5 3 3.5 4 4.5 5 5.5
Vcc (V)
Bandgap Voltage (V)
85°C
25°C
-40°C
ANALOG COMPARATOR OFFSET vs. COMMON MODE VOLTAGE (Vcc = 5V)
-0.002
0
0.002
0.004
0.006
0.008
0.01
0.012
0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 5.5
Common Voltage Mode (V)
Comparator Offset Voltage (V)
85°C
25°C
-40°C
