ATN Zebra 16 Operator's And Safety Manual

OPERATOR AND SAFETY MANUAL
1NO0035UK-05
Zebra 16
59
3- Entry parameters - Telescope.
4- Entry parameters - Arm 3.
The arrows light up when the corresponding movement is commanded.
5- Entry parameters - Platform rotation.
The arrows light up when the corresponding movement is commanded.
6- Entry parameters - Levelling.
The arrows light up when the corresponding movement is commanded.
7- Proportional valve control value / Circuit hydraulic pressure.
8- Gauge setpoint value.
9- Engine speed selector position for the structure movements.
Slowdown.
High speed.
10- Light - Validation pedal activated.
11- Light - Auxiliary group commanded.
12- Light - Diesel engine start button activated.
13- Light - Tilt / Tilt angle values.
Green light: acceptable tilt not reached.
Red light: acceptable tilt exceeded.
14- Light - Overload
Green light: acceptable load not reached.
Red light: acceptable load exceeded.
The arrows light up when the corresponding movement is commanded.

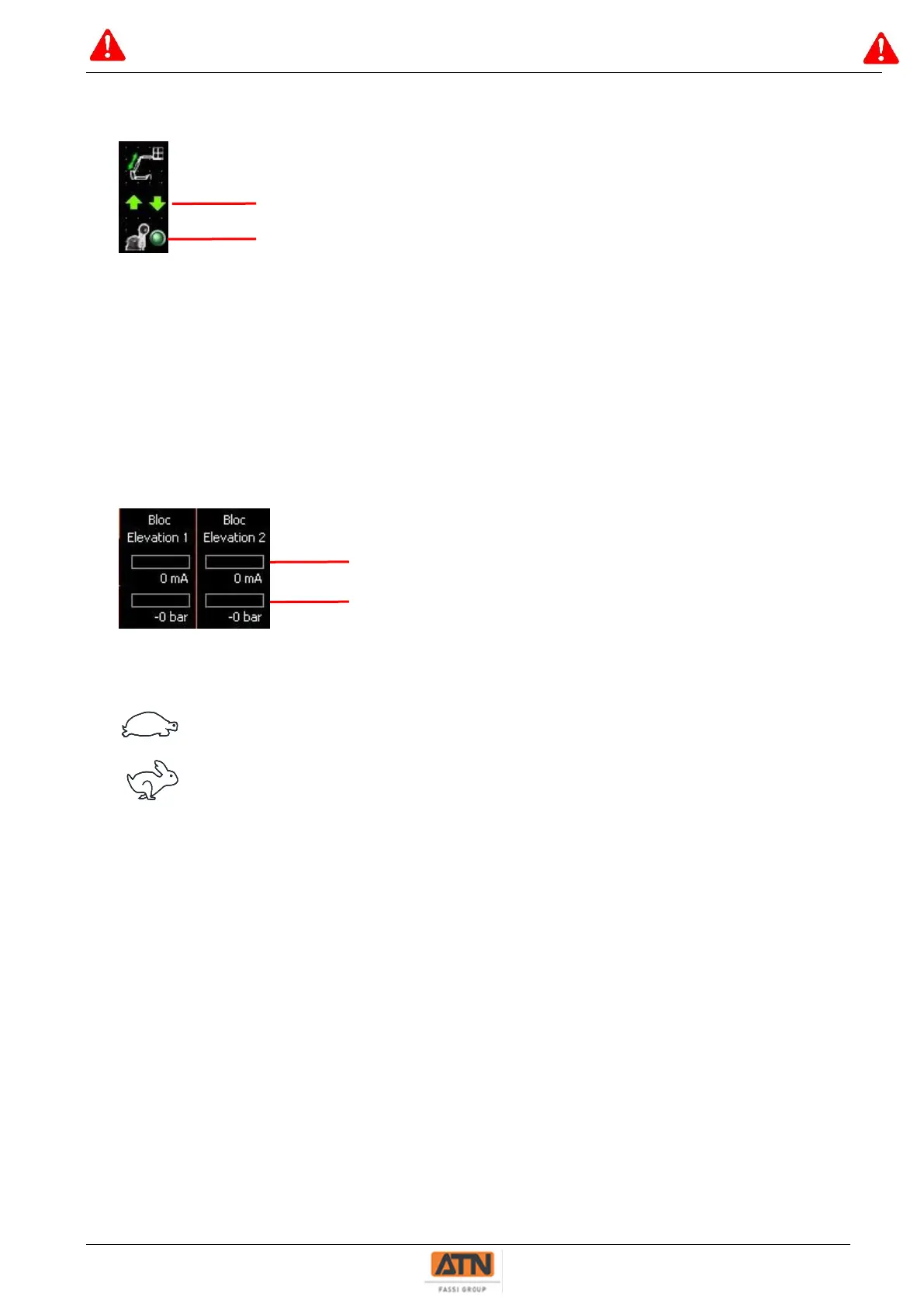

Status light - Telescope position sensor
(the light is on when the telescope is in).
Proportional valve values
Corresponding hydraulic circuit pressure
