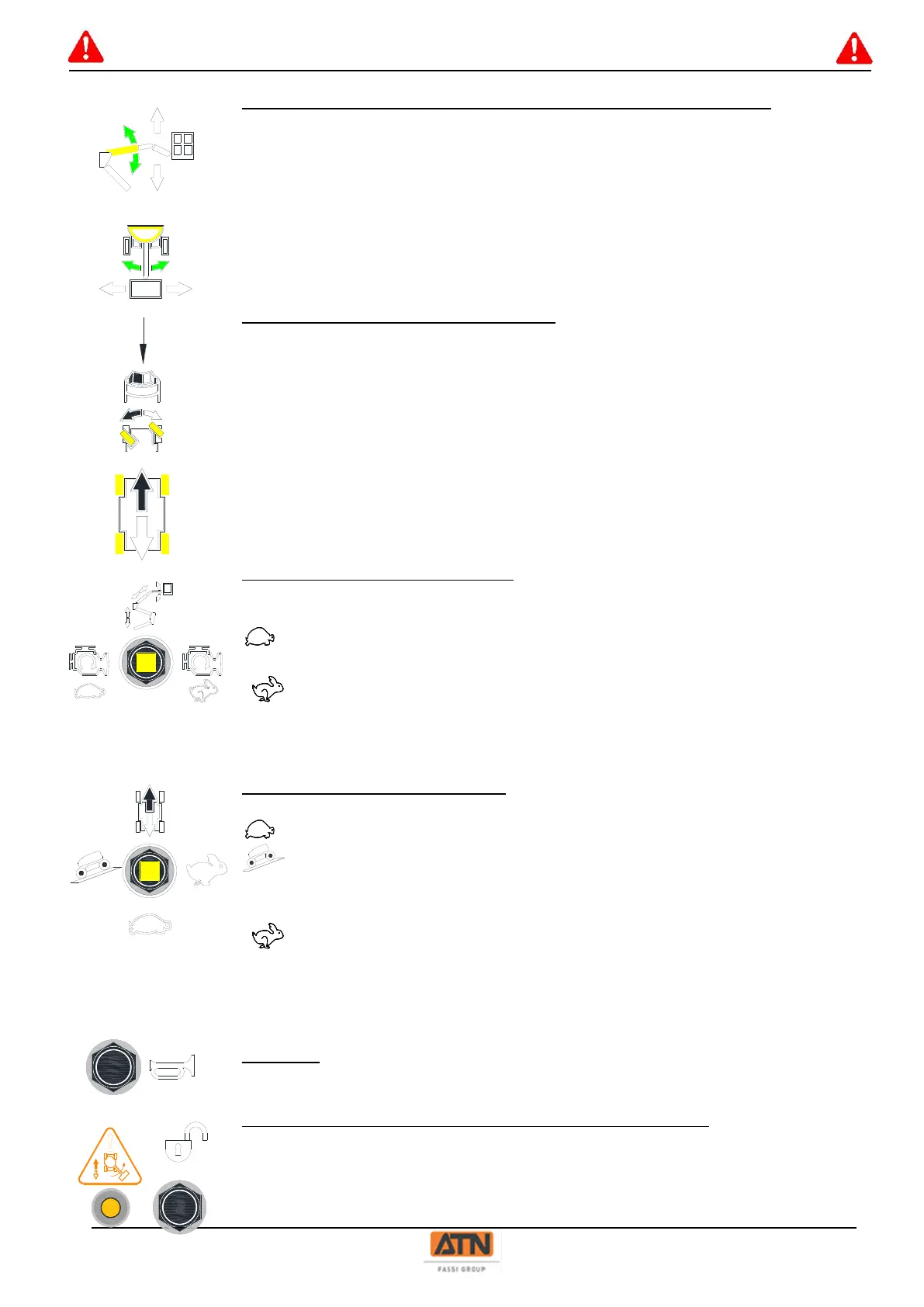

8- Arm 2 Up / Down and Right / Left Orientation control Joystick:
Push the joystick forward to raise arm 2 or pull the joystick rearwards to
lower arm 2. The movement speed is proportional to the travel of the
joystick.
Tilt the joystick to the right or to the left to turn the structure in the
corresponding direction. The movement speed is proportional to the travel
of the joystick.
Refer to Section 4.4.2 – Elevation.
Refer to Section 4.4.5 – Structure Orientation.
9- Drive and Steering control Joystick.
The movement speed is proportional to the travel of the joystick.
Push the lever forward to drive the machine forward or pull the lever to drive
the machine in reverse.
The black and white direction arrows near the joystick and those stuck on
the machine’s chassis enable you to identify the direction of the movement
function of the direction the joystick is moved: tilt the joystick in the direction
indicated by the arrow corresponding to the direction requested.
Press on the right or left button of the toggle switch (a) to steer the wheels
in the corresponding direction.
Refer to Section 4.3 – Driving - Steering.
9- Engine speed Selector switch:
This 2-position switch is used to select the engine speed for the structure
movements:
: The structure movements will all be performed at slow speed,
engine idling.
: When the control system allows it, the structure movements are
performed at high speed, engine accelerated.
Please refer to Section 4.2.2 – Engine speed.
10- Drive speed selector switch:
This 3-position switch is used to select the max. driving speed:
: slow speed
: Intermediate speed. In this position, the torque and drive are at
their maximum to allow climbing slopes or driving the machine on rough
grounds.
: High speed
Note: When the platform is raised, the machine drives by default at slow
speed.
Refer to Section 4.2.2 – Engine speed.
14- Horn:
Press the button to activate the horn.
13- Drive direction indicator light and Validation (Option):
The light switches on when the structure is turned beyond the rear axle.
The validation switch must be used before a drive movement is controlled.
Refer to Section 4.3 – Driving / Steering.
