21- Stop and Start System Activation light.
22- Fuel level Indicator light.
23- Outrigger Control (Z16 Stab only).
24- Structure position Indicator light (Z16 Stab only).
25- Outrigger position indicator light (Z16 Stab only).
26- Outrigger ground contact Indicator lights (Z16 Stab only).

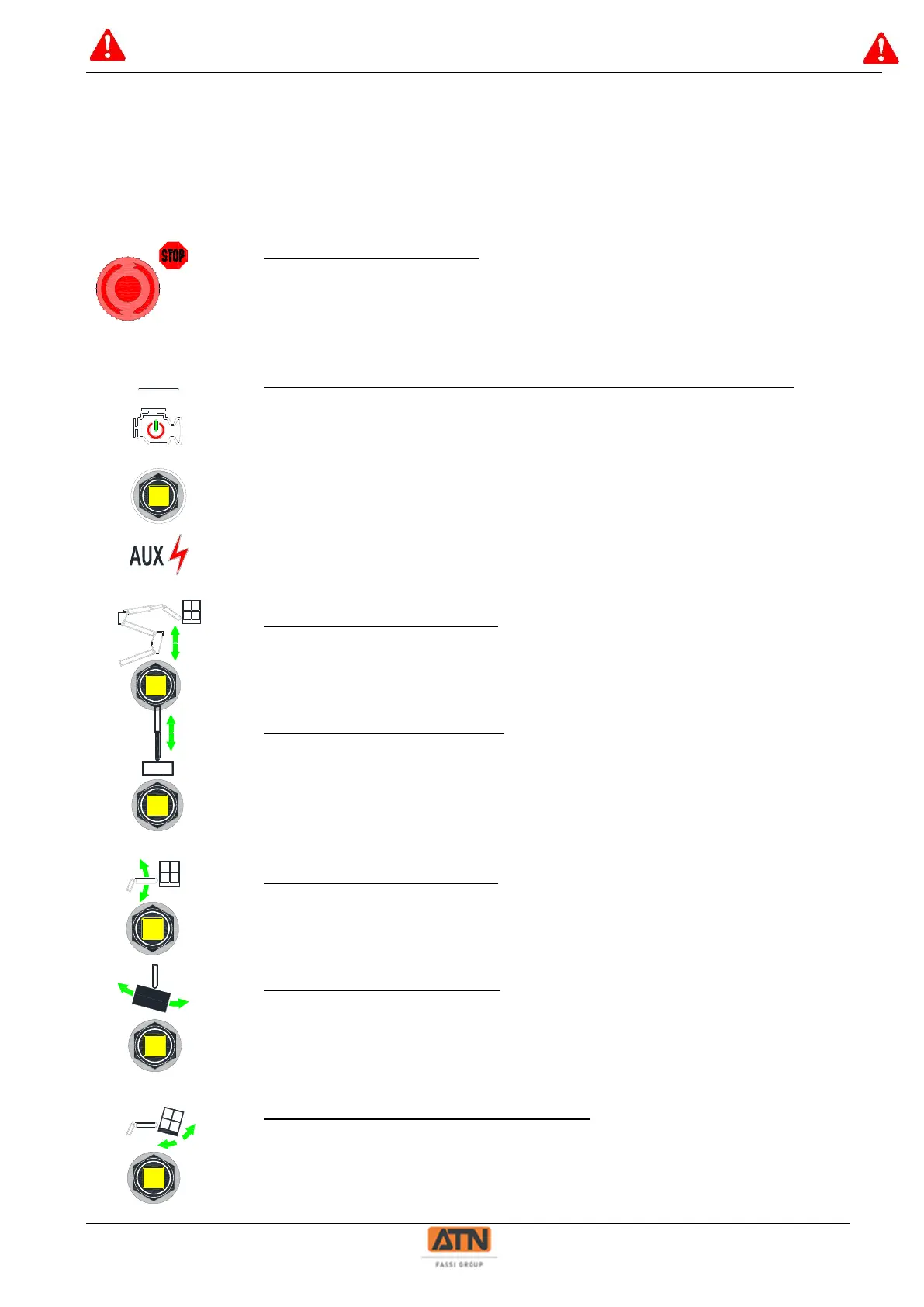

1 Emergency Stop switch:
In the event of an emergency, PRESS the button to CUT all the machine's
movements and shut down the combustion engine. Turn the button by a 1/4
turn to restore the electrical power.
2- Combustion engine Preheat-Start-Stop / Auxiliary Power Unit:
• Combustion engine start: tilt and hold the switch upwards until the
engine starts.
• Combustion engine stop: tilt and hold the switch upwards until the engine
stops.
• Auxiliary hydraulic power unit: Depress the enable pedal and tilt the
switch downwards to use the auxiliary hydraulic power unit.
Refer to Section 4.2 – Combustion engine operation.
Refer to Section 7.1.3 – Auxiliary hydraulic power unit.
3- Arm 1 Up / Down Control:
Tilt the switch forward to raise arm 1 or rearwards to lower arm 1.
Refer to Section 4.4.2 – Elevation.
4- Telescope In / Out control:
Tilt the switch rearwards to extend the telescope or forward to retract the
telescope.
Refer to Section 4.4.3 –Telescope.
5- Arm 3 Up / Down Control:
Tilt the switch forward to raise arm 3 or rearwards to lower arm 3.
Refer to Section 4.4.2 – Elevation.
6- Platform Rotation Control:
Tilt the switch to the right or to the left to turn the platform in the
corresponding direction.
Refer to Section 4.4.6 – Work platform Rotation.
7- Platform Up / Down levelling Control:
Tilt the switch forward to adjust the platform’s level up or rearwards to adjust
the platform’s level down.
Refer to Section 4.4.4 – Platform levelling.
