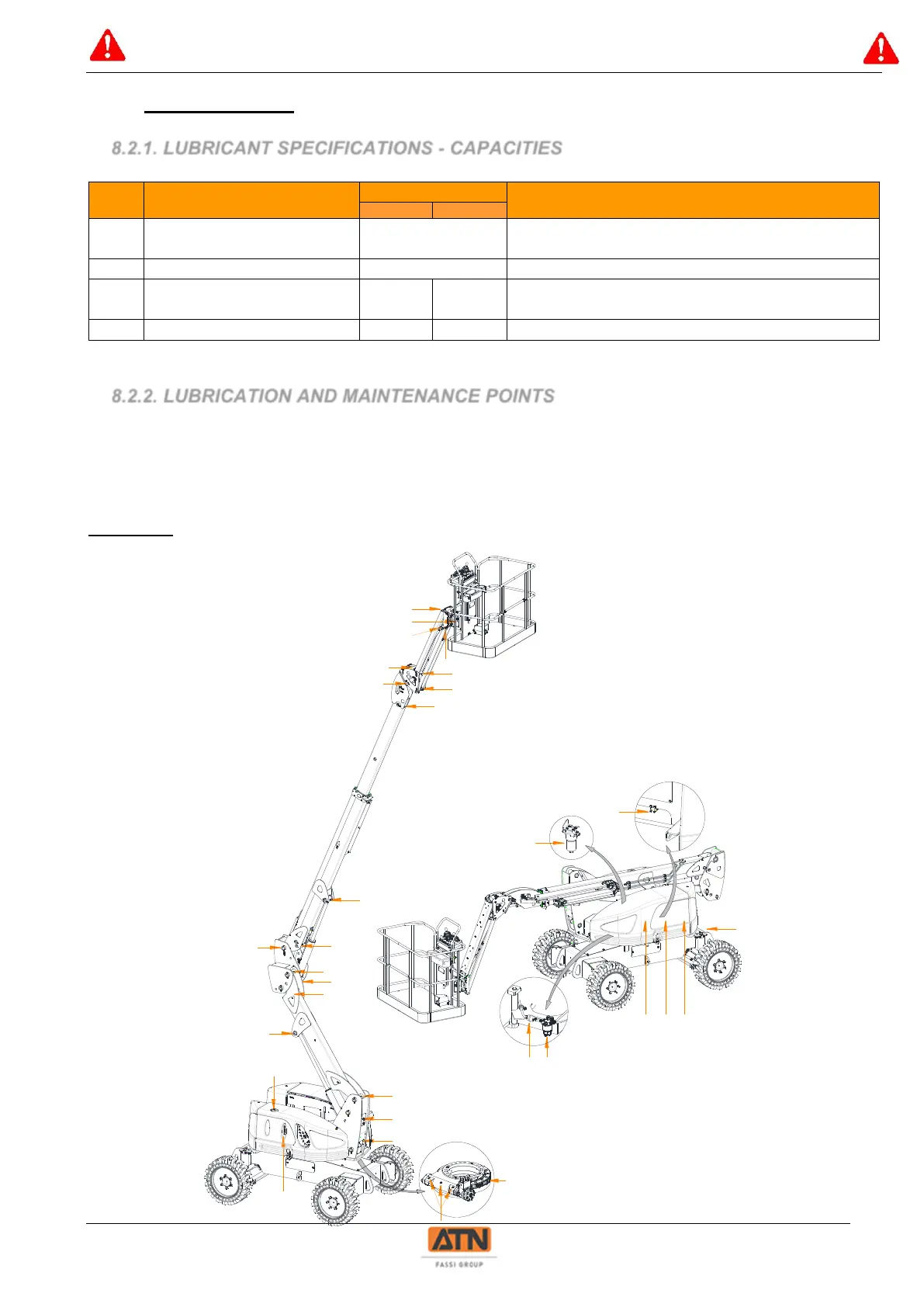

8.2 LUBRICATION
8.2.1. LUBRICANT SPECIFICATIONS - CAPACITIES
CODE
DESCRIPTION
CAPACITY
NOTES
Zebra 12
Zebra 16
GR
Multi-Use grease
-
Adhesive grease resistant to water and extreme
pressures
HM
Engine oil (15W40)
7 l
Refer to Section 8.1.3 – Engine oil
H46
Hydraulic oil H46
48 l
85 l
Fluid for Hydraulic circuits
Kinematic viscosity 46mm²/s @ 40°C
D
Fuel for Diesel engine
50 l
60 l
GNR type (Non-Road Diesel)
8.2.2. LUBRICATION AND MAINTENANCE POINTS
-NOTE-
Lubrication and maintenance intervals must be reduced if the machine is used intensively
or in a dusty environment.
Zebra 12 :
( 16 )
( 1 )
( 2 )
( 8 )
( 4 )
( 5 )
( 9 )( 10 )
( 11 )
( 12 )
( 12 )
( 12 )
( 12 )
( 12 )
( 12 )
( 12 )
( 12 )
( 12 )
( 15 )
( 14 )
( 14 )
( 14 )
( 14 )
( 14 )
( 14 )
( 14 )
( 14 )
( 14 )
( 18 )
( 3 )
( 6 )
( 7 )
( 17 )
